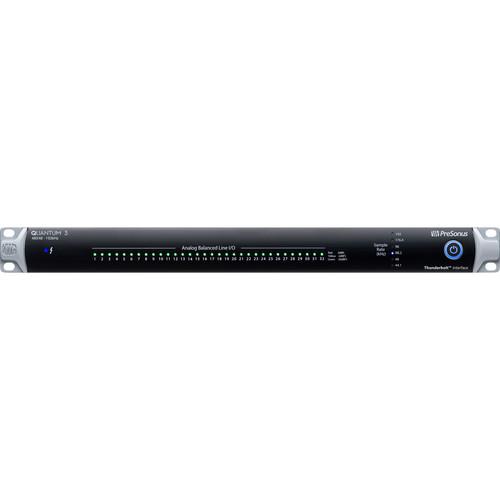

User Manual for PreSonus Quantum 4848 - Thunderbolt 2 Low-latency Audio Interface Click to enlarge the picture
Contents of the user manual for the PreSonus Quantum 4848 - Thunderbolt 2
- Product category: Audio Interfaces & Systems PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Audio Interfaces & Systems
|
User manual for the PreSonus Quantum 4848 - Thunderbolt 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|
Product description The PreSonus Quantum 4848 is a low-latency audio interface which, via analog and ADAT connections, gives you up to 48 inputs and up to 48 outputs. The unit’s converters allow for low-latency recording, as well as dynamic ranges greater than 120 dB on both the ADC (analog to digital) and DAC (digital to analog) side. Furthermore, the Quantum captures audio at 24-bit resolutions, achieving sample rates up to 192 kHz.For analog I/O, the Quantum 4848 provides 32 line-level input and outputs via DB25 connectors. The optical ADAT section offers two banks of I/O with 16x16 at 44.1/48 kHz and 8x8 at 88.2/96 kHz. BNC wordclock I/O allow you to sync your interface with any digital equipment. With Studio One Professional's Pipeline XT, you can insert your analog hardware processors into your session with automatic latency compensation.
Thunderbolt 2 ports offer connections to your host computer, and with two of them on hand, you can chain multiple units (up to four) for a total of 192x192. Additionally, any combination of Quantum interfaces is compatible to create custom systems with microphone preamps, headphone monitoring, and more. The PreSonus Quantum 4848 ships Studio One Professional and the Studio Magic plug-in suite featuring professional-quality effects from Arturia, SPL, Lexicon, Brainworks, Maag, and more. - Key Features at a Glance
-
- General Features
- 48x48 ultra-low-latency 24-bit 192 kHz Thunderbolt 2 audio interface
- 32 line-level inputs and outputs via rear-panel DB25 connectors
- Dual ADAT inputs and outputs for 16 channels of digital I/O at base sample rates
- Stack up to four Quantum 4848 interfaces via Thunderbolt for 192x192 simultaneous inputs and outputs
- Stack any combination of four Quantum, Quantum 2, and Quantum 4848 interfaces via Thunderbolt to create a custom system
- Integrated Software
- Tight integration with the included Studio One Professional DAW software (Mac/Windows) for multitrack music production and mastering
- Native Studio One Pipeline XT plug-in provides easy integration of analog processors in a digital recording environment
- Wireless control of Studio One Professional using free Studio One Remote for iPad/Android tablet
- Studio Magic Plug-in Suite included
- Compatible with most recording software for Mac and Windows
- Connectivity
- Simultaneous I/O up to 48 inputs / 48 outputs
- 32 line-level inputs and outputs via rear-panel DB25 connectors
- ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
- Channel Profile modes allow you to customize I/O configurations for third-party recording software that limits simultaneous recording streams
- Dual Thunderbolt ports for stacking multiple units and connecting Thunderbolt peripherals
- Digital
- Thunderbolt 2 high-speed bus
- 24-bit resolution and up to 192 kHz sampling rate
- 120 dB A/D/A converters
- BNC wordclock input and output with low-jitter clocking
- Physical
- Rugged construction with all-metal chassis
- 1 RU rack-mountable
- 12 VDC, 5A external power supply (included)
UPC: 673454006685 In the Box PreSonus Quantum 4848 - Thunderbolt 2 Low-latency Audio Interface Power Supply Limited 1-Year Warranty User Manual PDF 11mbwvuyrsszvvrfabzbwssbrtst Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Quantum 4848 - Thunderbolt 2 Low-latency Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus QUANTUM 4848 Specs | | | Display and Indicators | Multi-Segment LED Meter (Input Level) | | | | Host Connection | 2 x Thunderbolt (MDP) | | Analog I/O | 4 x DB25 Balanced 8-Channel Input
4 x DB25 Balanced 8-Channel Output | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | Line Inputs:
20 Hz to 20 kHz
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
