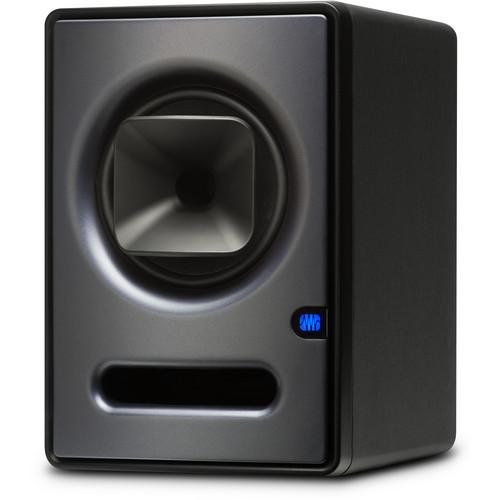

User Manual for PreSonus Sceptre S6 Two-Way CoActual Studio Monitor with DSP Temporal Equalization Click to enlarge the picture
Contents of the user manual for the PreSonus Sceptre S6 Two-Way CoActual Studio
- Product category: Studio Monitors PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Studio Monitors
|
User manual for the PreSonus Sceptre S6 Two-Way CoActual Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|
Product description New Studio Monitors from PreSonus Read More bzreyfrwfq The Sceptre S6 Two-Way CoActual Studio Monitor with DSP Temporal Equalization by PreSonus articulates nuances of your music that can't be reproduced by conventional designs. The Sceptre S6 features a panoramic soundstage and a wide dynamic range. The advanced coaxial design works integrally with a 32-bit/96 kHz, dual-core processor running Fulcrum Acoustic's TQ Temporal Equalization Technology.
The Sceptre S6 features a 6.5" low/mid-frequency driver, a 1" horn-loaded tweeter and front-firing acoustic ports. The systems are biamplified, with each transducer powered by an independent 100W RMS, Class D power amplifier with an internal heat sink. Sceptre has an internal power supply and a blue power-indicator LED. The S6 studio monitor has a balanced XLR and a 1/4" TRS line-level input with an A-taper level control.
Coaxial systems, such as the S6, have both drivers on the same axis— providing a single point source for a consistent acoustic center. This results in symmetry of response on both the horizontal and vertical axes, at any given angle. The crossover transition is, therefore, seamless at all angles. - Onboard TQ Temporal Equalization by Fulcrum Acoustics
- Each Sceptre monitor contains a 32-bit/96kHz, dual-core, active floating-point DSP chip that powers Fulcrum Acoustic's TQ algorithms. The TQ algorithms use fully addressable Finite Impulse Response (FIR) filters to eliminate horn reflections and to correct linear time and amplitude anomalies. Loudspeakers tuned with TQ provide a crisper stereo image, greater soundstage depth, more separation between the elements of a complex mix, increased resistance to feedback, more seamless transitions between distributed loudspeakers, and a less fatiguing listening experience.
- Acoustic Space Control
- The Acoustic Space Control is a second-order shelving filter centered at 100Hz. It can remain flat or attenuate by 1.5dB, 3dB, or 6dB— reducing the boundary bass boost that occurs when the monitor is placed near a wall or corner.
- Acoustic Tuning Controls
- The High-Frequency Driver Adjust switch can boost the tweeter by 1dB, or cut by 1.5dB or 4dB. The High-Pass switch rolls off the lows below a specified frequency, 60, 80, or 100Hz, at a slope of 12dB/octave. This control is important if you are using a subwoofer in conjunction with the Sceptre.
- Input Sensitivity Control
- A sensitivity control ranging from +4dBu to -10dBV helps you match the Sceptre to your mixer's outputs.
- Thorough Protection Circuitry
- RF shielding protects against radio frequencies that could be introduced to the signal and become audible. Sceptre monitors also provide overheat protection, current-output limiting and subsonic protection. "Soft startup" amplifiers prevent damaging pops from sounding through the speakers when you power them up.
UPC: 673454002274 In the Box PreSonus Sceptre S6 Two-Way CoActual Studio Monitor with DSP Temporal Equalization (Each) Power Cable Limited 1-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Sceptre S6 Two-Way CoActual Studio Monitor with DSP Temporal Equalization in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus S6 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 2.54 cm Tweeter
LF Driver: 1 x 6.5" / 16.51 cm Woofer | | Amplification | HF Amplifier: Class-D Rated at 100 W
LF Amplifier: Class-D Rated at 100 W | | | | Frequency Range | 42 Hz to 23 kHz (at -10 dB)
52 Hz to 20 kHz (at -10 dB) | | Maximum Sound Pressure Level (SPL) | 102 dB | | Protections and Limiting | Fuse, Output Current Limiting, Peak Limiter, and Thermal Limiting | | | | EQ | 1 x HF Shelf: -4 to +1 dB
1 x LF Shelf: -6 to 0 dB | | Filters | High-Pass at 60 Hz
High-Pass at 80 Hz
High-Pass at 100 Hz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input
1 x 1/4" (6.3 mm) TRS Balanced/Unbalanced Analog Input | | | | Max Sample Rate/Resolution | 96 kHz / 32-Bit | | | | Package Weight | 22.35 lb | | Box Dimensions (LxWxH) | 15.7 x 15.2 x 10.4" |
