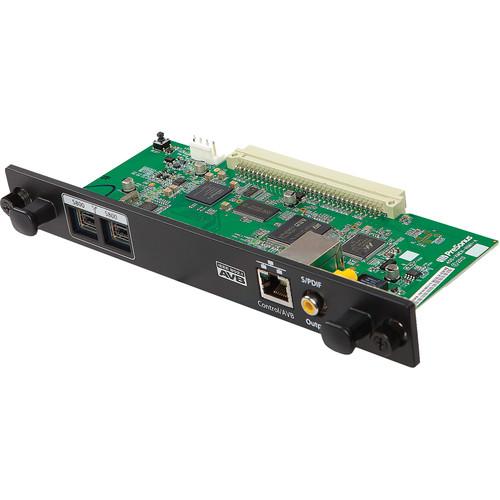

User Manual for PreSonus SL-AVB-MIX AVB Interface Option Card for StudioLive AI Mixer Click to enlarge the picture
Contents of the user manual for the PreSonus SL-AVB-MIX AVB Interface Option Card
- Product category: Digital Mixer Accessories PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Digital Mixer Accessories
|
User manual for the PreSonus SL-AVB-MIX AVB Interface Option Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|
Product description The SL-AVB-MIX AVB Interface Option Card for StudioLive AI Mixer from PreSonus lets you connect your AI Console mixer to an RM AI mixer for reliable, low latency audio networking and control. Connecting your FOH console to an RM on-stage unit with this AVB interface option card over a single CAT5 cable provides you up to 32 analog input channels from the stage to the console, up to 32 analog or FireWire inputs, main stereo mix, and talkback from the FOH console.
You can also adjust the on-stage RM mixer's XMAX mic preamps directly from your front-of-house console. Audio networking provides simpler ways to connect your audio gear, and save the time and weight that comes with reels of copper audio snakes. Using the RM mixer expands your mix system with a dedicated monitor mixer complete with its own Fat Channel processing, and effects independent of what's being used at FOH.
The SL-AVB-MIX card can also be connected via a single CAT5 cable to an AVB switch in order to provide access via an external Monitor Mix touchscreen control computer or provide wireless access via WAP enabled devices like smartphones or tablet computers. - Turns an RM32AI or RM16AI into a stage box and monitor mixer for any StudioLive AI FOH console, using a single CAT5 cable
- Separate Fat Channel processing and reverb/delay FX from FOH
- Complete monitor mixer on stage, and 16 more aux mixes
- Control from UC Surface on a Windows 8 touch computer, Mac or PC laptop, or iPad
- Individual artist mix control with QMix-AI for iPhone
- FOH can source inputs from the local analog, FireWire, or remote RM mixer
- Stage RM mixer can source inputs from the local analog or remote FOH mixer
- Control RM AI mixer preamps from StudioLive AI console mixer FOH
- Linked Talkback, Scene save and recall
- Simple one-step connection takes care of all default routing and setup
UPC: 673454003653 In the Box PreSonus SL-AVB-MIX AVB Interface Option Card for StudioLive AI Mixer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus SL-AVB-MIX AVB Interface Option Card for StudioLive AI Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus SL-AVB-MIX Specs | Compatibility | Mixers:
StudioLive 16.4.2AI, AI Console mixer
StudioLive 24.4.2AI, AI Console mixer
StudioLive 32.4.2AI, AI Console mixer
StudioLive RM32AI, AI RM Mixer
StudioLive RM16AI, AI RM Mixer
AVB Switch:
Netgear GS716Tv3 16-port
Netgear GS724v4 24-port
Netgear GS748Tv5 48-port
MOTU
Extreme Networks Summit X440-8t | | Connectors | 1 x RJ45, AVB network port
1 x SPDIF, output port
2 x FireWire 800, port | | Compliance | IEEE 802.1, AVB Ethernet | | Dimensions | 2.8 x 5.7 x 11.2" (7.0 x 14.5 x 28.4 cm) | | Weight | 0.75 lb (340 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 11.5 x 5.9 x 3.3" |
