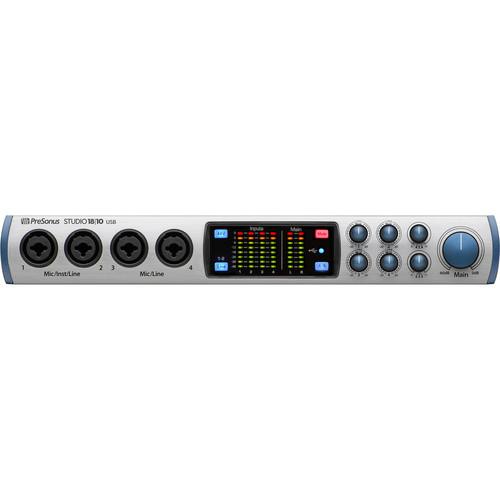

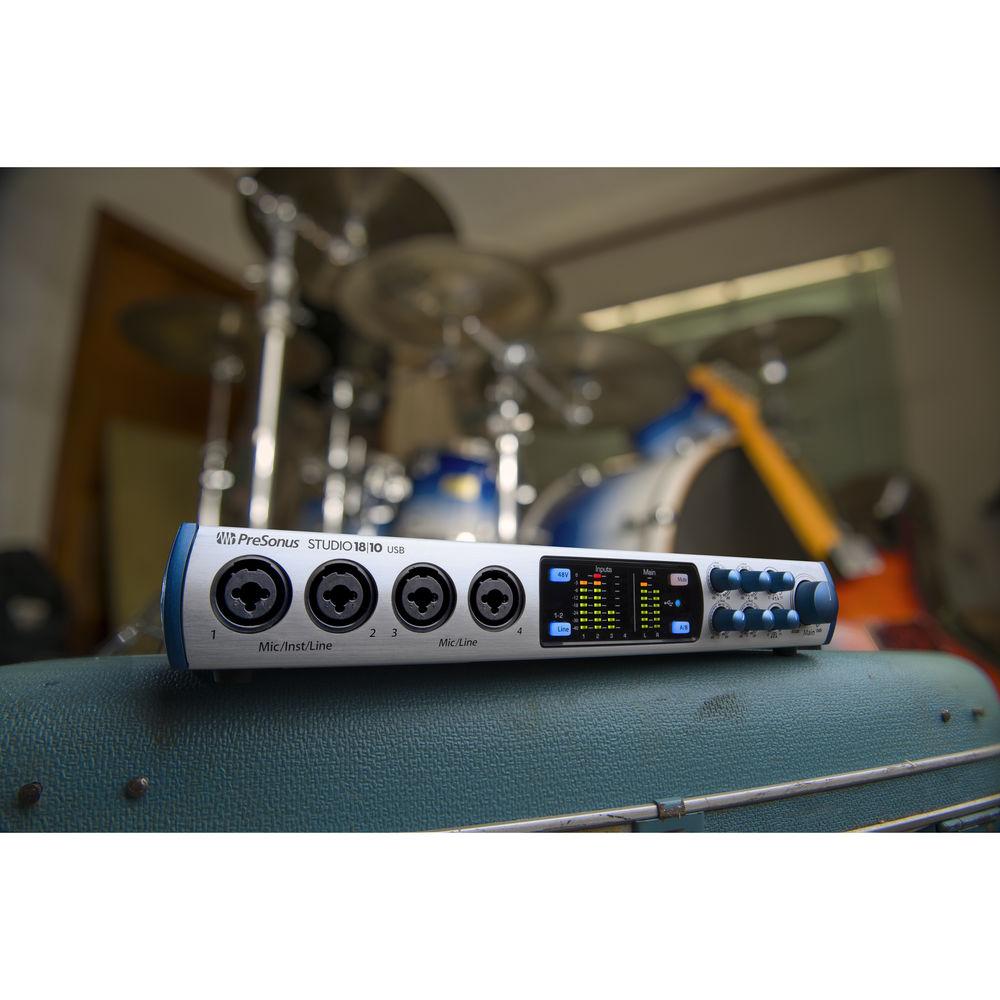

Product description The Presonus Studio 1810 is a USB 2.0 audio/MIDI interface capable of recording up to 18 simultaneous inputs at up to 24-bit / 192 kHz and offers XMAX Class-A preamps, an ADAT input, and S/PDIF I/O. Its 8 outputs offer flexible routing with zero-latency DSP-based monitor mixing and control-room integration with the included Studio One Artist for Mac and Windows, and UC Surface for Mac, Windows, iPad, and Android. The interface features mute and level controls for the main output, two headphone outputs with independent mix streams, and MIDI I/O with 5-pin DIN connectors. -

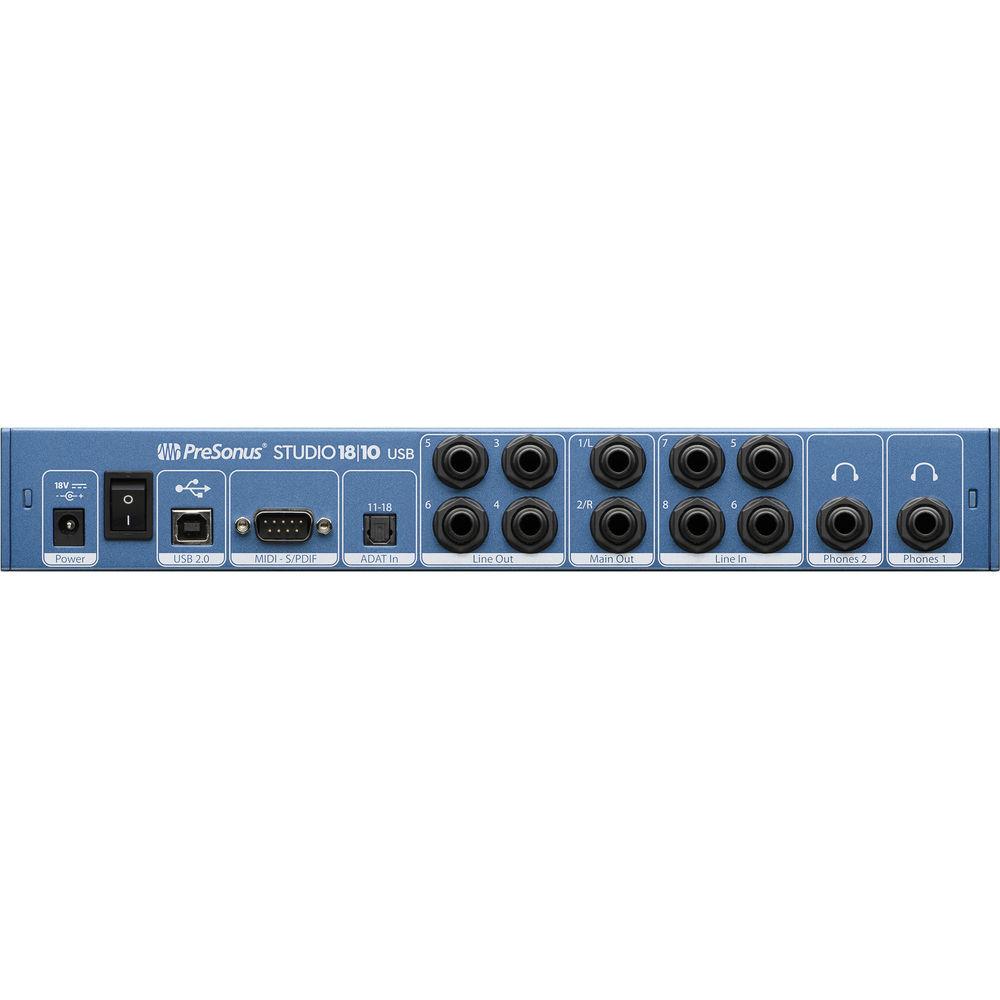

- Input/Output
- Simultaneous I/O up to 18 inputs/8 outputs (8x6 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 2 mic/line inputs with XMAX Class A mic preamps
- 4 balanced 1/4" TRS direct-to-ADC line inputs
- 8 channels of ADAT Optical input (4 channels at 96 kHz)
- Two balanced 1/4" TRS main outputs
- DC coupled for sending control voltages
- 4 balanced 1/4" TRS line outputs for monitor mixing
- DC coupled for sending control voltages
- 2 stereo headphone outputs with the same mix or independent mixes
- MIDI in/out
- Stereo S/PDIF digital I/O
- 1 USB 2.0 port
- Integrated Software
- Studio One Artist for Mac and Windows
- UC Surface control software for Mac, Windows, iPad, and Android

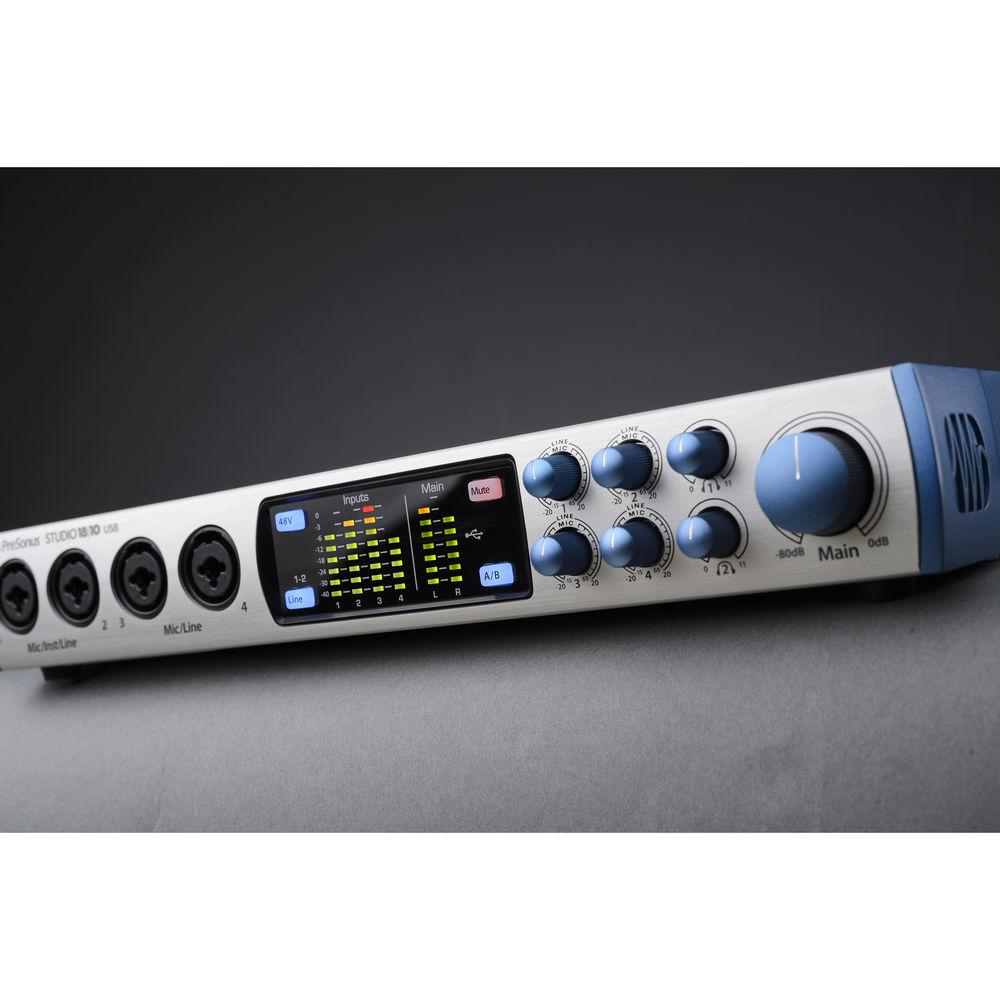

- Meters, Controls, and Features
- 18x6 on-board DSP monitor mixer
- Front-panel mute and level controls for main outputs
- True +48V phantom power for condenser microphones (global)
- 6 ladder-style, 8-LED level meters, (4 input, 2 main outputs)
- Digital
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- Physical
- Road-rugged construction with all-metal chassis and metal knobs
UPC: 673454005237 In the Box PreSonus Studio 1810 - 18x8 USB 2.0 Audio Interface Studio Magic Plug-In Suite Software Limited 1-Year Warranty User Manual PDF 10.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Studio 1810 - 18x8 USB 2.0 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus Studio 1810 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" Mic/Line/Hi-Z Input
2 x Combo XLR / 1/4" Mic/Line Input
2 x 1/4" (6.3 mm) TRS Headphone Output
4 x 1/4" (6.3 mm) Line Input
4 x 1/4" (6.3 mm) TRS Balanced Line Output
2 x 1/4" (6.3 mm) TRS Balanced Monitor Output | | Phantom Power | +48 V | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | Headphone Outputs:
20 Hz to 20 kHz (Unity Gain)
Hi-Z Inputs:
20 Hz to 20 kHz (Min Gain)
Line Inputs:
20 Hz to 20 kHz (Unity Gain)
Mic Inputs:
20 Hz to 20 kHz (Unity Gain)
Line Outputs:
20 Hz to 20 kHz | | Gain Range | Hi-Z Inputs:
80 dB
Line Inputs:
40 dB
Mic Inputs:
80 dB | | Max Input Level | Hi-Z Inputs:
+15 dBu (Min Gain, Unbalanced)
Line Inputs:
+21 dBu (Balanced, Min Gain)
Mic Inputs:
+16 dBu (Min Gain) | | Max Output Level | Outputs:
+18 dBu (Balanced) | | Headphone Output Power | 150 mW per Channel into 60 Ohms | | Dynamic Range | A/D Converters:
114 dB
Outputs:
103 dBA
Hi-Z Inputs:
112 dBA
Line Inputs:
112 dBA
Mic Inputs:
110 dBA
Outputs:
108 dBA | | Impedance | Headphone Outputs:
32 to 600 Ohms
Hi-Z Inputs:
1 MOhm
Line Inputs:
10 kOhms
Mic Inputs:
1400 Ohms | | THD+N | Headphone Outputs:
0.25%
Hi-Z Inputs:
0.02%
Line Inputs:
0.005%
Mic Inputs:
0.005%
Outputs:
0.004% | | EIN | Mic Inputs:
-128 dBu (A-Weighted) | | | | Sample Rates | 44.1, 48, 88.2, 96, 176.4, and 192 kHz | | Bit Depth | 24-Bit (AD/DA Conversion) | | | | OS Compatibility | iOS 9.3 or Later
macOS 10.8.5 or Later
Windows 7
Windows 8.1
Windows 10 | | Processor Requirement | Mac:
2 GHz Intel
PC:
2 GHz Intel Core i3 | | RAM Requirements | 4 GB (8 GB Recommended) | | Storage Requirements | 32 GB | | Minimum Display Resolution | 1366 x 768 | | Mobile Device Compatibility | iPad Pro
iPad Air 2
iPad Air
iPad Mini 2, 4
iPad 3rd Gen., 4th Gen.
iPad Mini
iPad 2 | | Required Hardware | Available USB 2.0 Port | | | | Phantom Power Current | >10 mA per Channel | | | | Dimensions | 1.8 x 12.5 x 5.5" / 4.4 x 31.8 x 14 cm | | Weight | 3.2 lb / 1.5 kg | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 18.2 x 13.0 x 4.9" |
