User Manual for PreSonus Studio 1810c 18x8 USB Type-C Audio MIDI Interface Click to enlarge the picture
Contents of the user manual for the PreSonus Studio 1810c 18x8 USB Type-C
- Product category: Audio Interfaces & Systems PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Audio Interfaces & Systems
 |
User manual for the PreSonus Studio 1810c 18x8 USB Type-C contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

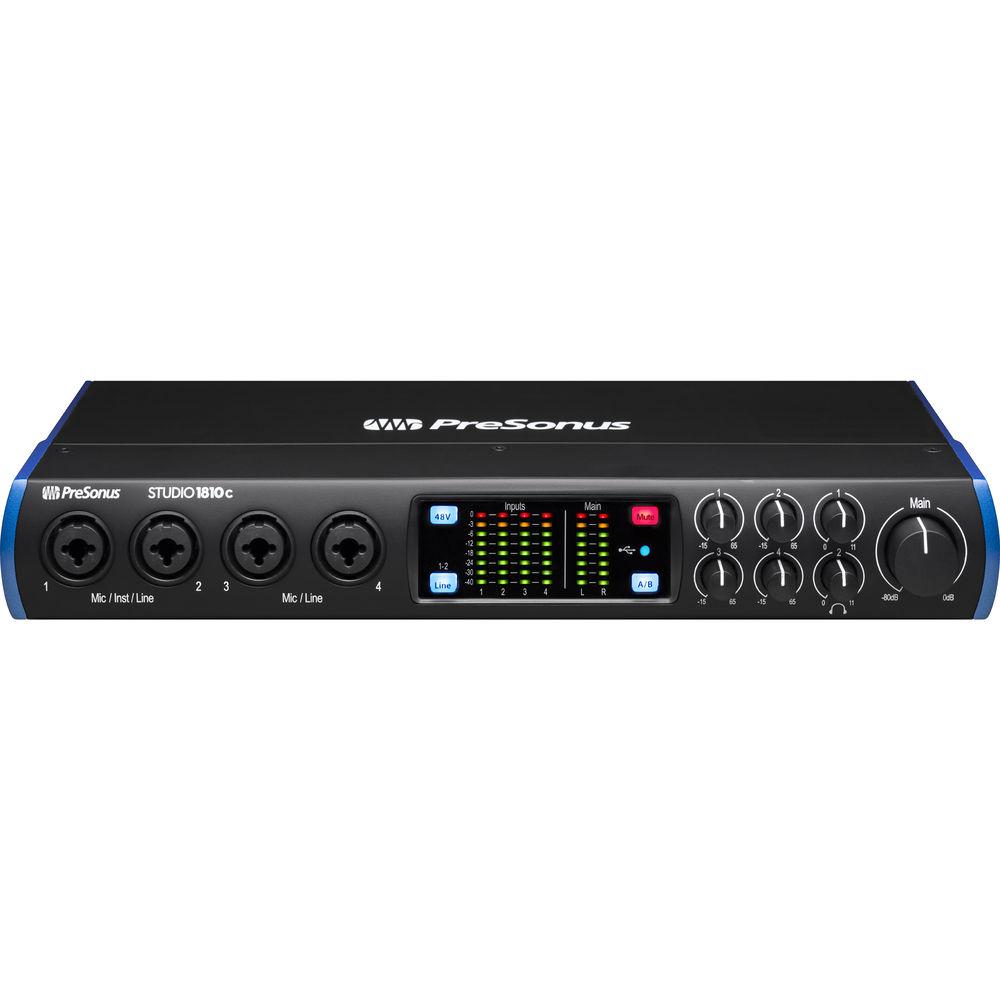

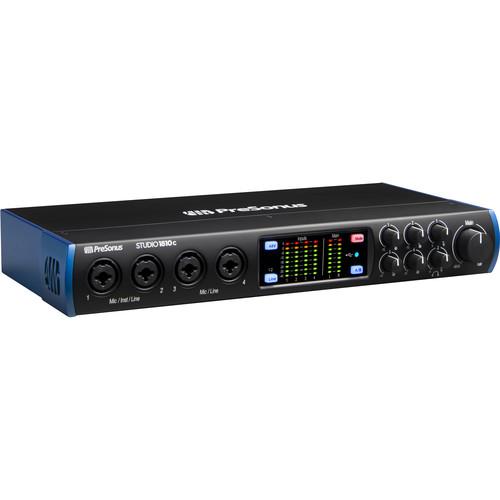

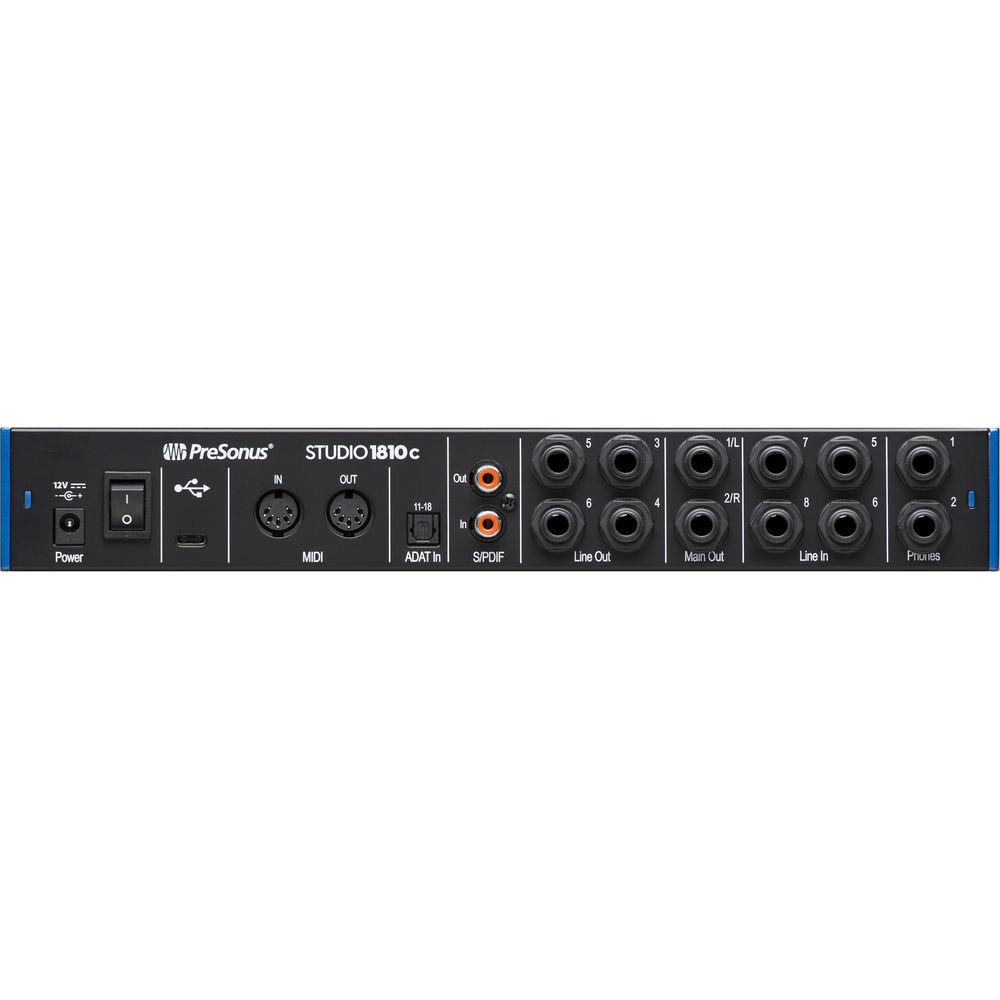

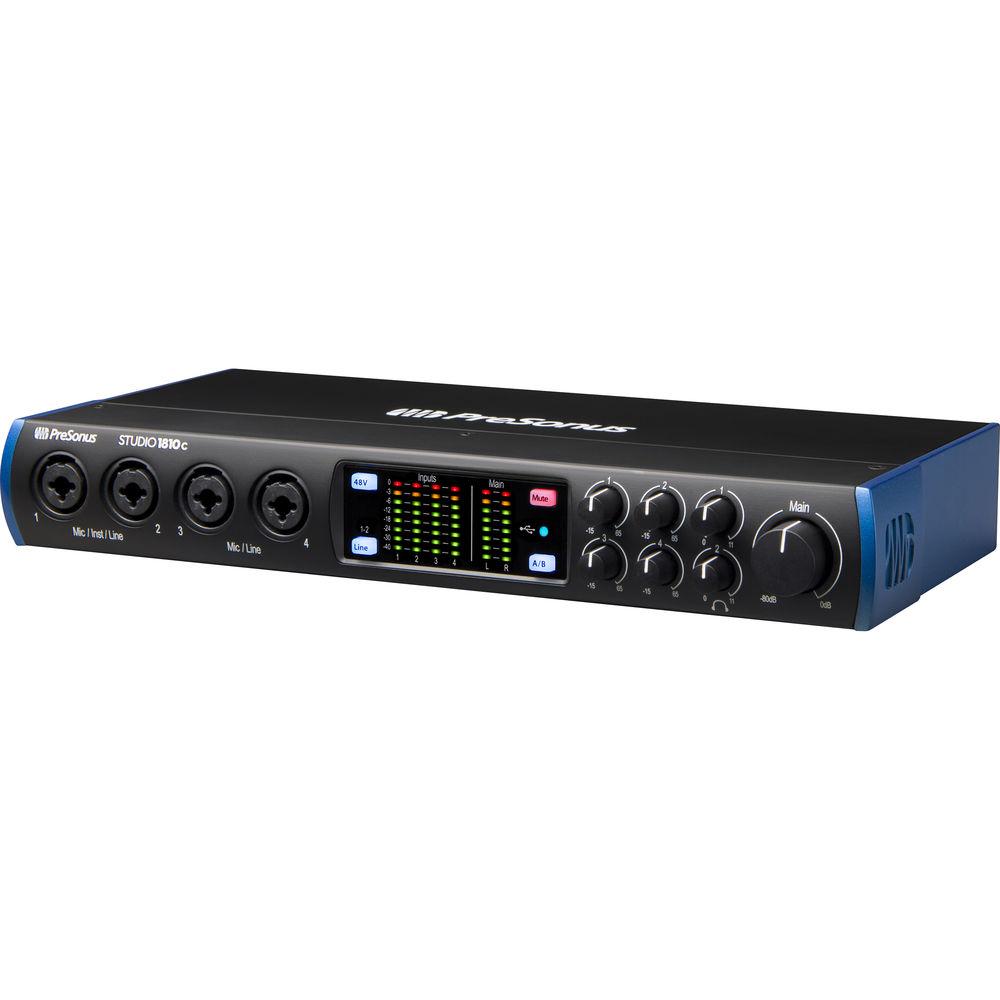

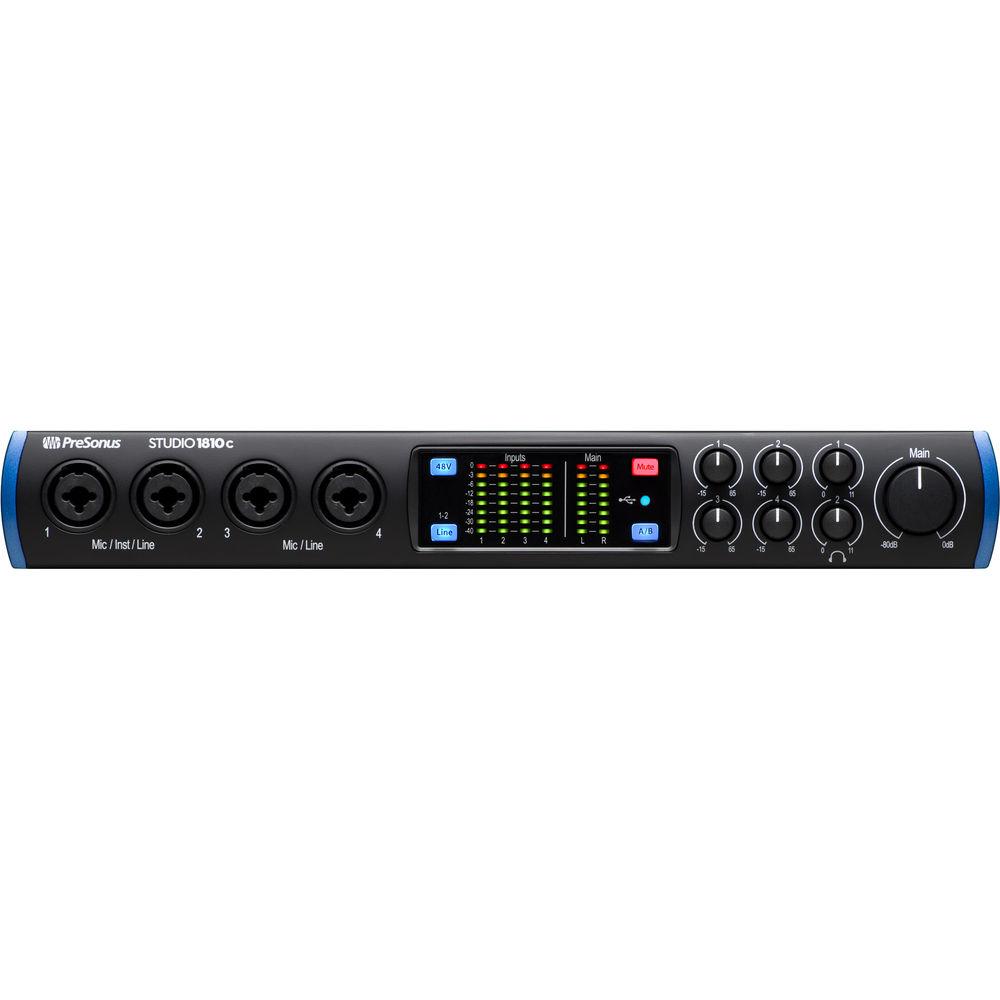

Product description The PreSonus Studio 1810c is an 18x8 USB Type-C audio/MIDI interface offering high-resolution conversion and a powerful software package for bands and audio engineers in home/project studios and mobile setups. Connect mic-, instrument-, or line-level sources via four XLR-1/4" combo inputs, each utilizing its own gain control and XMAX Class-A mic preamp with phantom power. The four rear-panel 1/4" inputs are ideal for accepting additional line-level sources. Operate at up to 24-bit / 48 kHz resolution without sacrificing channel count, or at 192 kHz sample rate with 8x6 I/O functionality.The Studio 1810c has six balanced 1/4" line outputs; the first two are fed by a dedicated level control for use with a pair of active monitors. Two 1/4" TRS stereo headphone outputs with front-panel volume knobs accommodate two sets of headphones. Digital connections include stereo S/PDIF I/O via coaxial jacks, and an 8-channel ADAT optical input. 5-pin MIDI I/O jacks on the rear panel allow simple hookup of a MIDI controller, synthesizer, or sound module.The Studio 1810c includes USB cables for easy connectivity to your compatible macOS or Windows computer. It is powered via an included external power supply. Also supplied is a software bundle featuring the Studio One Artist DAW and the Studio Magic plug-in suite—a slew of creative tools for producers, engineers, songwriters, and more. - Flexible multichannel audio/MIDI interface ideal for bands, audio engineers, and producers
- AD/DA conversion at up to 24-bit / 192 kHz resolution
- Four XLR-1/4" combo inputs—two support mic/instrument/line level, two support mic/line level
- Four rear-panel 1/4" TRS line-level inputs
- Line switch toggles inputs 1-2 between line and instrument level
- XMAX Class-A mic preamps with selectable 48 VDC phantom power
- Dedicated controls for input gain, main output level, headphone volume, and main output mute
- Two 1/4" main/line outputs and four additional 1/4" line outputs
- All 1/4" line outputs are balanced and DC-coupled
- 1/4" stereo headphone output with A/B button for easy monitoring of outputs 1-2 or 3-4
- Additional 1/4" stereo headphone output with independent volume control
- ADAT optical input supports eight channels at up to 48 kHz, or four channels at 96 kHz
- Coaxial S/PDIF ports for two extra digital inputs and outputs

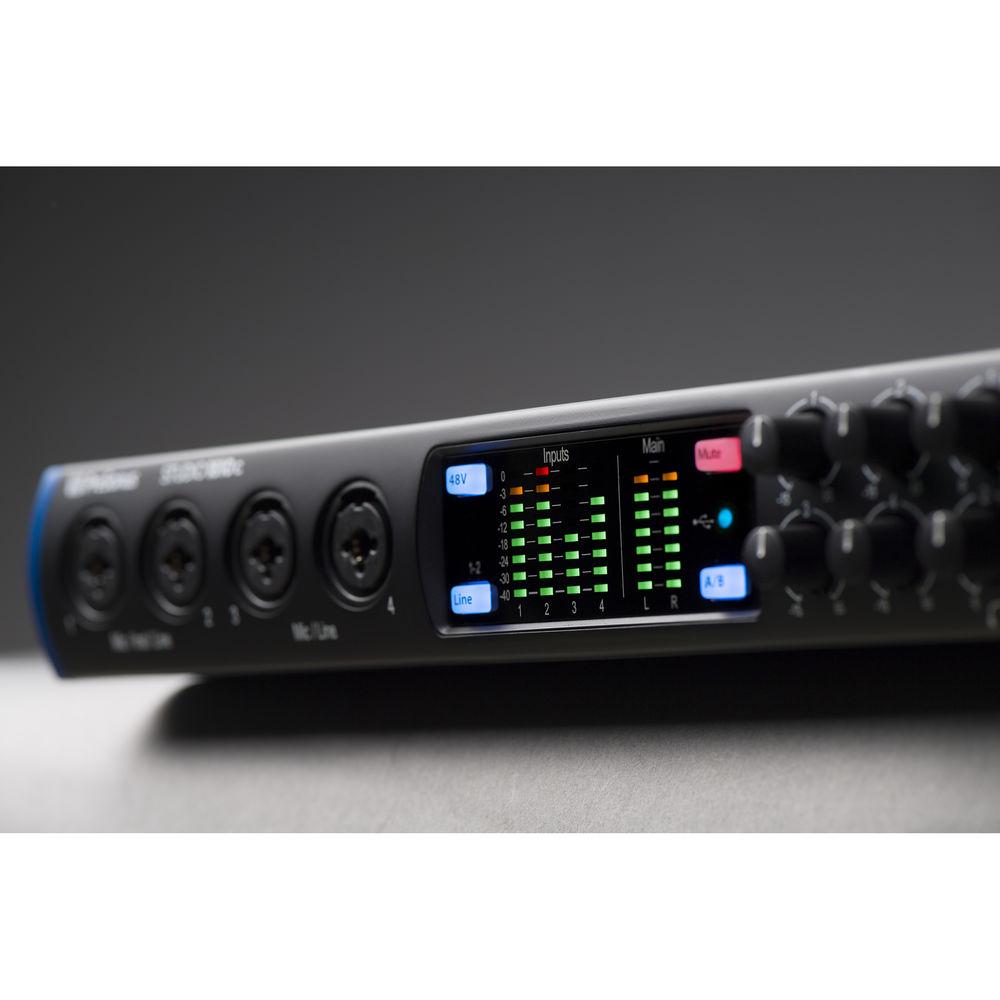

- Multi-segment LED meters display levels for inputs and main outputs
- Monitor mix control with free UC Surface for macOS, Windows, iPad, and Android
- Includes Studio One Artist DAW software with flexible routing, zero-latency monitor mixing, and control room integration
- Includes Studio Magic plug-in suite with seven plug-ins ranging from EQ to virtual instruments
UPC: 673454008023 In the Box PreSonus Studio 1810c 18x8 USB Type-C Audio/MIDI Interface 3.3' USB Type-C Cable 3.3' USB Type-A to USB Type-C Cable External Power Supply Limited 1-Year Warranty User Manual PDF 9.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Studio 1810c 18x8 USB Type-C Audio MIDI Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus Studio 1810c Specs | | | Channels of I/O | Analog:
8 Inputs / 6 Outputs at 192 kHz
Digital:
10 Inputs / 2 Outputs at 48 kHz | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Display and Indicators | 1 x LED (Host Connection)
1 x LED (+48V)
1 x LED (Mute)
1 x LED (Input Selection)
1 x LED (Output Selection)
2 x Multi-Segment LED Meters (Input Level)
2 x Multi-Segment LED Meters (Output Level) | | | | Host Connection | 1 x USB Type-C (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x Combo XLR / 1/4" Balanced Mic/Line Input
4 x 1/4" (6.3 mm) TRS Balanced Line Input
6 x 1/4" (6.3 mm) TRS Balanced Line Output
2 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output | | Phantom Power | +48 V (Applied to All Inputs) | | Digital I/O | 1 x TOSLINK / ADAT (I/O) Input
1 x RCA Coaxial / S/PDIF (I/O) Input
1 x RCA Coaxial / S/PDIF (I/O) Output | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | Memory Card Slot | None | | | | Frequency Response | Mic/Line Inputs:
20 Hz to 20 kHz (Unity Gain)
Hi-Z Inputs:
20 Hz to 20 kHz (Min Gain)
Monitor Outputs:
20 Hz to 20 kHz (Unity Gain)
Line Outputs:
20 Hz to 20 kHz
Headphone Outputs:
20 Hz to 20 kHz (Unity Gain) | | Gain Range | Mic Inputs:
80 dB
Line Inputs:
40 dB
Hi-Z Inputs:
80 dB | | Max Input Level | Mic Inputs:
+16 dBu (Balanced, Min Gain)
Line Inputs:
+21 dBu (Balanced, Min Gain)
Hi-Z Inputs:
+15 dBu (Min Gain, Unbalanced) | | Max Output Level | Monitor/Line Outputs:
+18 dBu (Balanced) | | Headphone Output Power | 150 mW per Channel into 60 Ohms (Max) | | Dynamic Range | AD/DA Converters:
114 dB
Mic Inputs:
110 dBA
Line/Hi-Z Inputs:
112 dBA
Monitor Outputs:
108 dBA
Line Outputs:
108 dBA
Headphone Out:
103 dBA | | Impedance | Mic Inputs:
1.4 kOhms
Line Inputs:
10 kOhms
Hi-Z Inputs:
1 MOhm
Headphone Outputs:
600 Ohms | | THD+N | Mic/Line Inputs:
0.005%
Hi-Z Inputs:
0.02%
Monitor Outputs:
0.004%
Line Outputs:
0.004%
Headphone Outputs:
0.25% | | EIN | Mic Inputs:
-128 dBu (A-Weighted) | | | | Sample Rates | Up to 192 kHz (AD/DA Conversion) | | Bit Depth | Up to 24-Bit (AD/DA Conversion) | | Sync Sources | ADAT, Internal, S/PDIF | | | | OS Compatibility | macOS 10.8.5 or Later
Windows 7 or Later | | Processor Requirement | Mac:
2 GHz Intel
2 GHz AMD
PC:
2 GHz Intel
2 GHz AMD | | RAM Requirements | 4 GB (8 GB Recommended) | | Storage Requirements | 32 GB | | Minimum Display Resolution | 1366 x 768 | | Mobile Device Compatibility | iPad Pro
iPad Air
iPad Air 2
iPad Mini
iPad Mini with Retina
iPad Mini 4
iPad 2nd Gen., 3rd Gen., 4th Gen. | | Required Hardware | USB Cable (Included)
Available USB Port | | | | Power Requirements | AC/DC Power Adapter (Included) | | AC/DC Power Adapter | 12 V, Center-Positive (Included) | | Phantom Power Current | >10 mA per Channel | | | | Anti-Theft Features | None | | Dimensions | 12.48 x 5.51 x 1.73" / 317 x 140 x 44 mm | | Weight | 3.2 lb / 1.5 kg | | | | Package Weight | 5.38 lb | | Box Dimensions (LxWxH) | 20.2 x 10.1 x 10.1" |
