User Manual for PreSonus Studio 1824 - 18x18 USB 2.0 Audio Interface Click to enlarge the picture
Contents of the user manual for the PreSonus Studio 1824 - 18x18 USB
- Product category: Audio Interfaces & Systems PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Audio Interfaces & Systems
 |
User manual for the PreSonus Studio 1824 - 18x18 USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

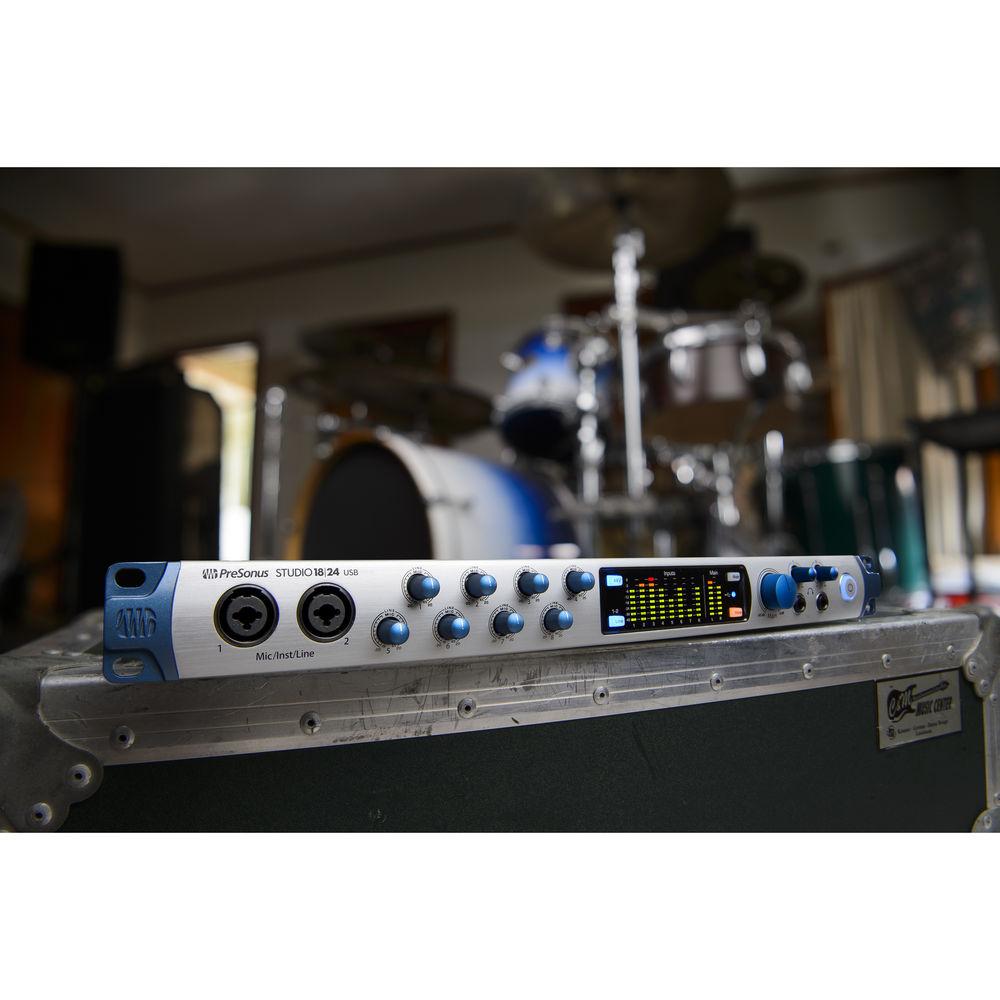

Product description The Presonus Studio 1824 is a USB 2.0 audio/MIDI interface capable of recording up to 18 simultaneous inputs at up to 24-bit / 192 kHz and offers XMAX Class-A preamps, ADAT I/O, and S/PDIF I/O. Its 18 outputs offer flexible routing with zero-latency DSP-based monitor mixing and control-room integration with the included Studio One Artist for Mac and Windows, and UC Surface for Mac, Windows, iPad, and Android. The interface features mute and level controls for the main output, two headphone outputs with independent mix streams, a BNC word clock output, and MIDI I/O with 5-pin DIN connectors. -
- Input/Output
- Simultaneous I/O up to 18 inputs/18 outputs (8x8 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 6 mic/line inputs with XMAX Class A mic preamps
- 8 channels of ADAT Optical input (4 channels at 96 kHz)
- Two balanced 1/4" TRS main outputs
- DC coupled for sending control voltages
- 8 balanced 1/4" TRS line outputs for monitor mixing
- DC coupled for sending control voltages
- 2 stereo headphone outputs with the same mix or independent mixes
- MIDI in/out
- Stereo S/PDIF digital I/O
- 1 USB 2.0 port
- BNC word clock output
- Integrated Software
- Studio One Artist for Mac and Windows
- UC Surface control software for Mac, Windows, iPad, and Android
- Meters, Controls, and Features
- 18x8 on-board DSP monitor mixer
- Front-panel level controls for main outputs
- Mono and Mute buttons for the main outputs
- True +48V phantom power for condenser microphones (global)

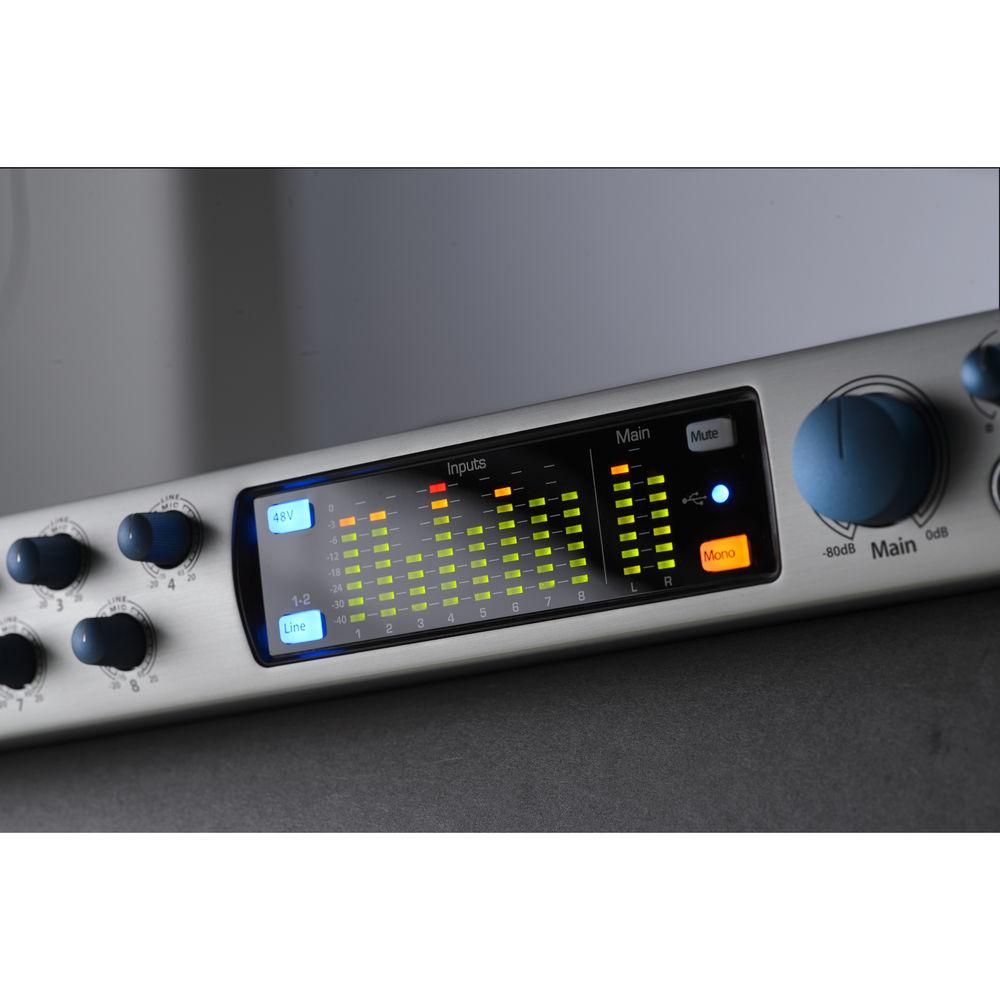

- 10 ladder-style, 8-LED level meters, (8 input, 2 main outputs)
- Digital
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- Physical
1RU rack-mountable- Road-rugged construction with all-metal chassis and metal knobs
UPC: 673454005282 In the Box PreSonus Studio 1824 - 18x18 USB 2.0 Audio Interface Studio Magic Plug-In Suite Software Limited 1-Year Warranty User Manual PDF 10.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Studio 1824 - 18x18 USB 2.0 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus Studio 1824 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" Mic/Line/Hi-Z Input
6 x Combo XLR / 1/4" Mic/Line Input
8 x 1/4" (6.3 mm) TRS Balanced Line Output
2 x 1/4" (6.3 mm) TRS Balanced Monitor Output
2 x 1/4" (6.3 mm) TRS Headphone Output | | Phantom Power | +48 V | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | Headphone Outputs:
20 Hz to 20 kHz (Unity Gain)
Hi-Z Inputs:
20 Hz to 20 kHz (Min Gain)
Line Inputs:
20 Hz to 20 kHz (Unity Gain)
Mic Inputs:
20 Hz to 20 kHz (Unity Gain)
Line Outputs:
20 Hz to 20 kHz | | Gain Range | Hi-Z Inputs:
80 dB
Line Inputs:
40 dB
Mic Inputs:
80 dB | | Max Input Level | Hi-Z Inputs:
+15 dBu (Min Gain, Unbalanced)
Line Inputs:
+21 dBu (Balanced, Min Gain)
Mic Inputs:
+16 dBu (Min Gain) | | Max Output Level | Outputs:
+18 dBu (Balanced) | | Headphone Output Power | 150 mW per Channel into 60 Ohms | | Dynamic Range | Outputs:
103 dBA
Hi-Z Inputs:
112 dBA
Line Inputs:
112 dBA
Mic Inputs:
110 dBA
Outputs:
108 dBA | | Impedance | Headphone Outputs:
32 to 600 Ohms
Hi-Z Inputs:
1 MOhm
Line Inputs:
10 kOhms
Mic Inputs:
1400 Ohms | | THD+N | Headphone Outputs:
0.25%
Hi-Z Inputs:
0.02%
Line Inputs:
0.005%
Mic Inputs:
0.005%
Outputs:
0.004% | | EIN | Mic Inputs:
-128 dBu (A-Weighted) | | | | Sample Rates | 44.1, 48, 88.2, 96, 176.4, and 192 kHz | | | | OS Compatibility | Android 5.0 or Later
macOS 10.8.5 or Later
Windows 7
Windows 8.1
Windows 10 | | Processor Requirement | Mac:
2 GHz Intel
PC:
2 GHz Intel Core i3 | | RAM Requirements | 4 GB (8 GB Recommended) | | Storage Requirements | 32 GB | | Minimum Display Resolution | 1366 x 768 | | Required Hardware | Available USB 2.0 Port | | | | Phantom Power Current | >10 mA per Channel | | | | Dimensions | 1.8 x 19 x 5.5" / 4.4 x 48.3 x 14 cm | | Weight | 4.8 lb / 2.2 kg | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 23.6 x 12.0 x 5.0" |
