PreSonus Studio 68 Audio MIDI Interface

Search your instruction manual in PDF to download

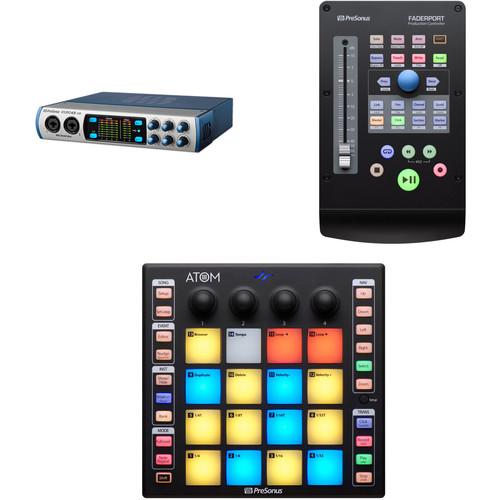

User Manual for PreSonus Studio 68 Audio MIDI Interface and Production Studio Kit

Click to enlarge the picture
PreSonus Studio 68 Audio MIDI Interface and Production Studio Kit Contents of the user manual for the PreSonus Studio 68 Audio MIDI Interface
  • Product category: Audio Interfaces & Systems PreSonus
  • Brand: PreSonus
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for PreSonus Audio Interfaces & Systems

User manual for the PreSonus Studio 68 Audio MIDI Interface contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any PreSonus product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!



Product description

The PreSonus Studio 68 Audio/MIDI Interface and Production Studio Kit from B&H includes the PreSonus Studio 68 6x6 192 kHz, USB 2.0 Audio/MIDI interface, the FaderPort single-fader USB control surface (2nd generation), the ATOM production and performance pad controller, Studio Magic Plug-In Suite software, a 12VDC external power supply, and a USB cable. This kit can be used by musicians, DJs, producers, engineers, podcasters, or anyone creating audio content on a Mac or Windows computer (sold separately).
  • PreSonus Studio 68 - 6x6 192 kHz, USB 2.0 Audio/MIDI Interface Designed for musicians, DJs, producers, engineers, podcasters, live streaming, or anyone creating audio content on the go, the Studio 68 from Presonus is a 6x6 USB 2.0 audio and MIDI interface featuring two front-panel combo mic-and-line/instrument inputs and two rear-panel mic/line combo inputs, each with XMAX-L solid-state mic preamps. In addition to the main outputs, there is another set of stereo line outputs for mixing or speaker monitor-switching. A stereo headphone output features a Cue Mix A/B, which toggles between two mixes, well suited for live-performance DJs or for listening to a performer's monitor mix. Additionally, the Studio 68 features a 9-pin D-sub connector which connects to a breakout cable and features MIDI I/O connectors and S/PDIF digital I/O—it is a complete recording solution and ships with Presonus' Studio One Artist software.
      • USB 2.0, 6x6 audio interface (4x4 at 192 kHz)
      • 24-bit resolution; 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates
      • Two mic/instrument/line inputs with XMAX Class-A mic preamps
      • Two mic/line inputs with XMAX Class-A mic preamps
      • +48V phantom power (global)
      • Two balanced ¼” TRS line outputs for monitor mixing or speaker switching
      • Two balanced ¼” TRS main outputs with front-panel level control
      • Six ladder-style LED level meters (4 input, 2 main output)
      • Stereo headphone output with Cue Mix A/B
      • Direct monitoring
      • MIDI I/O
      • S/PDIF I/O
      • Studio One Artist included
      • Includes Studio Magic Plug-in Suite with Maag Audio EQ 2, SPL Attacker, Arturia instruments, and more
    UPC: 673454005220
  • PreSonus FaderPort Single-Fader USB Control Surface (2nd Generation) The 2nd-generation PreSonus FaderPort is a compact single-fader USB control surface designed to deliver flexible hardware control of DAWs for producers, musicians, and audio engineers in home, project, and mobile studios. Allowing you to speed up your productions by keeping your hand off your mouse, it features a touch-sensitive 100mm motorized fader, a large 360° push-button encoder, and a comprehensive transport control section.The long-throw fader offers enhanced resolution for fast rough mixes and detailed volume automation while the encoder allows manipulation of panning and plug-in parameters. Mute, solo, automation modes, and record-enable status can also be easily controlled along with window selection, play, stop, loop on/off, record, and marker access. Regardless of track count, the Session Navigator puts channel selection, scrolling, and zooming at your fingertips. Hands-free punch recording is possible via the 1/4" footswitch jack (footswitch available separately).This control surface supports Control Link and parameter follow for powerful native Studio One control. Additionally, it provides Mackie HUI and Mackie Control Universal protocols, ensuring compatibility with Ableton Live, Cubase, Logic Pro, Nuendo, Pro Tools, and more. The FaderPort connects via USB 2.0 and is powered via the included 12 VDC external power supply. The PreSonus Studio One Artist DAW software is bundled with the FaderPort.
    • Single touch-sensitive, long-throw, motorized 100mm fader and 24 buttons covering 40 functions
    • Large 360° push-button encoder enables central control over panning, plug-ins, and more
    • Transport controls for record, play/pause, stop, rewind/fast-forward, return-to-zero, and loop on/off
    • Session Navigator with easy channel access, marker functions, zooming, and more
    • Solo, mute, and record-enable buttons
    • Automation mode selectors
    • Window selection and user-definable function buttons
    • Plug-in bypass functionality
    • Click on/off button
    • Seamless native support for Studio One
    • Supports Control Link and parameter follow for quick hardware access to any control
    • Supports Mackie Control Universal and Mackie HUI protocols
    • Compatible with Logic Pro X, Ableton Live, Cubase, Pro Tools, and more
    • 1/4" footswitch jack for punch in/out operations (footswitch available separately)
    • Includes 12 VDC external power supply
    UPC: 673454006920
  • PreSonus ATOM Production and Performance Pad Controller The PreSonus ATOM is a versatile, portable production and performance MIDI controller, well suited for artists, DJs, and producers. The ATOM is a pad-based USB 2.0 controller compatible with most major DAWs, while offering direct hardware integration with PreSonus's Studio One software, allowing for virtual instrument and preset browsing, creating loop points and timeline navigation, tempo control, MIDI editing and quantization, zoom, transport controls, and more.

    The ATOM features 16 full-sized velocity- and pressure-sensitive performance pads, each backlit by RGB LEDs. The pressure control can be switched between MIDI aftertouch, channel pressure, and continuous-controller (CC) messages. Additionally, the pads offer selectable velocity curves and pad pressure thresholds. Other features include 20 assignable buttons and four endless rotary encoders. What's more, there are three modes of operation including MIDI keyboard, note repeat, and full velocity.

    The ATOM is bundled with Studio One Artist software and includes custom-designed loop content from MVP Loops. The PreSonus ATOM is USB bus-powered by your Mac or PC and includes a standard USB 2.0 cable.
      Controls
      • 16 full-size velocity- and pressure-sensitive, RGB LED pads
      • Pressure switchable between MIDI aftertouch, channel pressure, and CC messages
      • 8 assignable pad banks
      • Selectable pad velocity curves and pad pressure thresholds
      • 20 assignable buttons
      • 4 endless rotary encoders
        Modes
        • MIDI "keyboard" mode
        • Note Repeat mode
        • Full Velocity mode (only send velocity 127)
          Included Software
          • Studio One Artist production software for Mac and Windows
          • MVP Loops content custom-designed for ATOM
          • Compatible with most music production and performance software for Mac and Windows
            Connection
            • USB 2.0
            UPC: 673454007149
          In the Box
          • Studio 68 - 6x6 192 kHz, USB 2.0 Audio/MIDI Interface dczfqvxqdbxdysqbcrufewdvsarfwasad
          • Studio Magic Plug-In Suite Software
          • Limited 1-Year Warranty
          • FaderPort Single-Fader USB Control Surface (2nd Generation)
          • ATOM Production and Performance Pad Controller
          Table of Contents




Upload User Manual

Have you got an user manual for the PreSonus Studio 68 Audio MIDI Interface and Production Studio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • PreSonus Studio 68 - 6x6 192 kHz, USB 2.0 Audio/MIDI Interface
    Box Dimensions (LxWxH) 15.7 x 8.4 x 4.8"
  • PreSonus FaderPort Single-Fader USB Control Surface (2nd Generation)
    System Requirements macOS 10.8.5 (64-bit) or later
    Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
    USB 2.0 port
    Internet connection required for driver and bundled software installation
    Most recent FaderPort firmware
    Universal Control 2.8 or later (for firmware updates)

    Windows 7 SP1 plus platform update, Windows 8.1, or Windows 10 (all x64/x86)
    Intel Core 2 Duo or AMD Athlon X2 processor (Intel Core i3 or faster recommended)
    USB 2.0 port
    Internet connection required for driver and bundled software installation
    Most recent FaderPort firmware
    Universal Control 2.8 or later (for firmware updates)
    Connection USB 2.0 Type-B
    Footswitch Input 1 x 1/4"
    Faders 1 x 3.9" / 100 mm long-throw, touch-sensitive, motorized fader
    10-bit resolution, 1024 steps
    Power Requirement 12 V, 2 A power supply
    Dimensions (H x D x W) 1.8 x 5.5 x 9.1" / 45 x 140 x 230 mm
    Weight 1.5 lb / 0.7 kg
    Box Dimensions (LxWxH) 14.0 x 9.0 x 4.0"
  • PreSonus ATOM Production and Performance Pad Controller
    Mac System Requirements OS: Mac OS X 10.11 or higher (64-bit only)
    CPU: Intel Core 2 Duo processor (Intel Core i3 or better recommended)
    Memory: 4 GB RAM (8 GB or more recommended)
    USB: USB 2.0 port
    Internet connection (needed for software installation and activation)
    Monitor: 1366 x 768 resolution (high-dpi monitor recommended)
    Hard Drive Space: 40 GB (for StudioOne software)
    Universal Control: 2.9 or later (for firmware updates)
    Studio One 4.1+ required for native integration
    Windows System Requirements OS: Windows 7 (SP1 + platform update), Windows 8.1, or Windows 10 (64-bit only)
    CPU: Intel Core Duo or AMD Athlon X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)
    Memory: 4 GB RAM (8 GB or more recommended)
    USB: USB 2.0 port
    Internet connection (needed for software installation and activation)
    Monitor: 1366 x 768 resolution (high-dpi monitor recommended)
    Hard Drive Space: 40 GB (for StudioOne software)
    Universal Control: 2.9 or later (for firmware updates)
    Studio One 4.1+ required for native integration
    Input Connection Type: USB 2.0 (bus-powered)
    Controls 16 x full-size velocity- and pressure-sensitive, RGB LED pads
    20 x assignable buttons
    4 x endless rotary knobs
    1 x setup button
    Dimensions (H x D x W) 0.8 x 7.7 x 8.0" / 20.8 x 195.0 x 202.0 mm
    Weight 1.0 lb / 0.5 kg
    Box Dimensions (LxWxH) 19.0 x 11.5 x 11.0"
