User Manual for PreSonus Studio 68c 6x6 USB Type-C Audio MIDI Interface Click to enlarge the picture
Contents of the user manual for the PreSonus Studio 68c 6x6 USB Type-C
- Product category: Audio Interfaces & Systems PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Audio Interfaces & Systems
 |
User manual for the PreSonus Studio 68c 6x6 USB Type-C contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

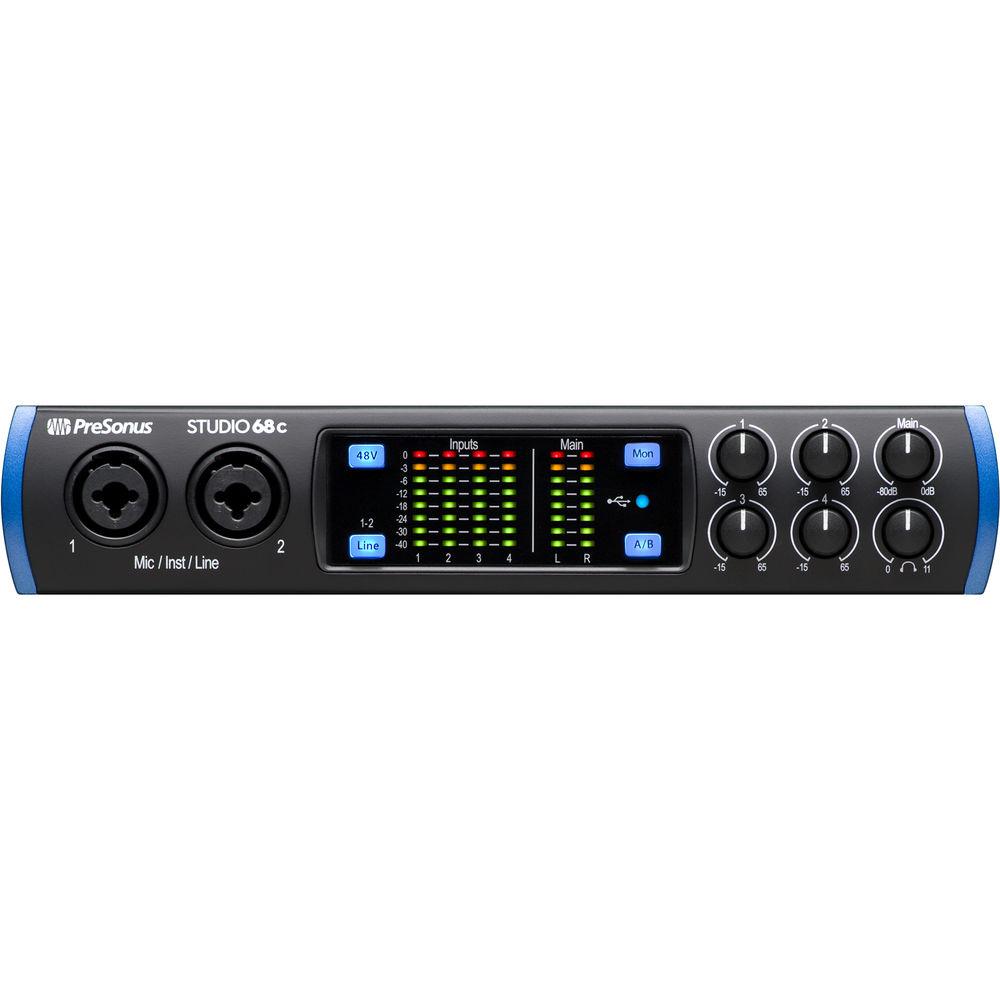

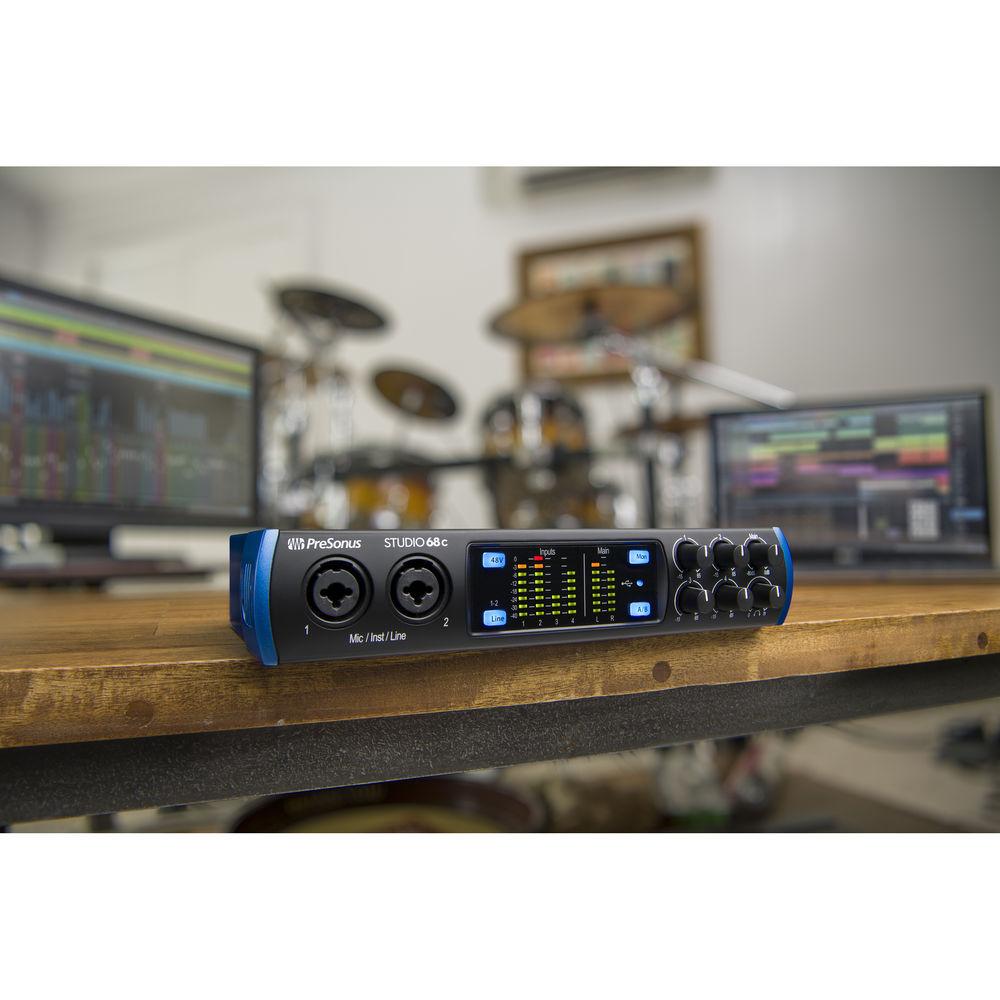

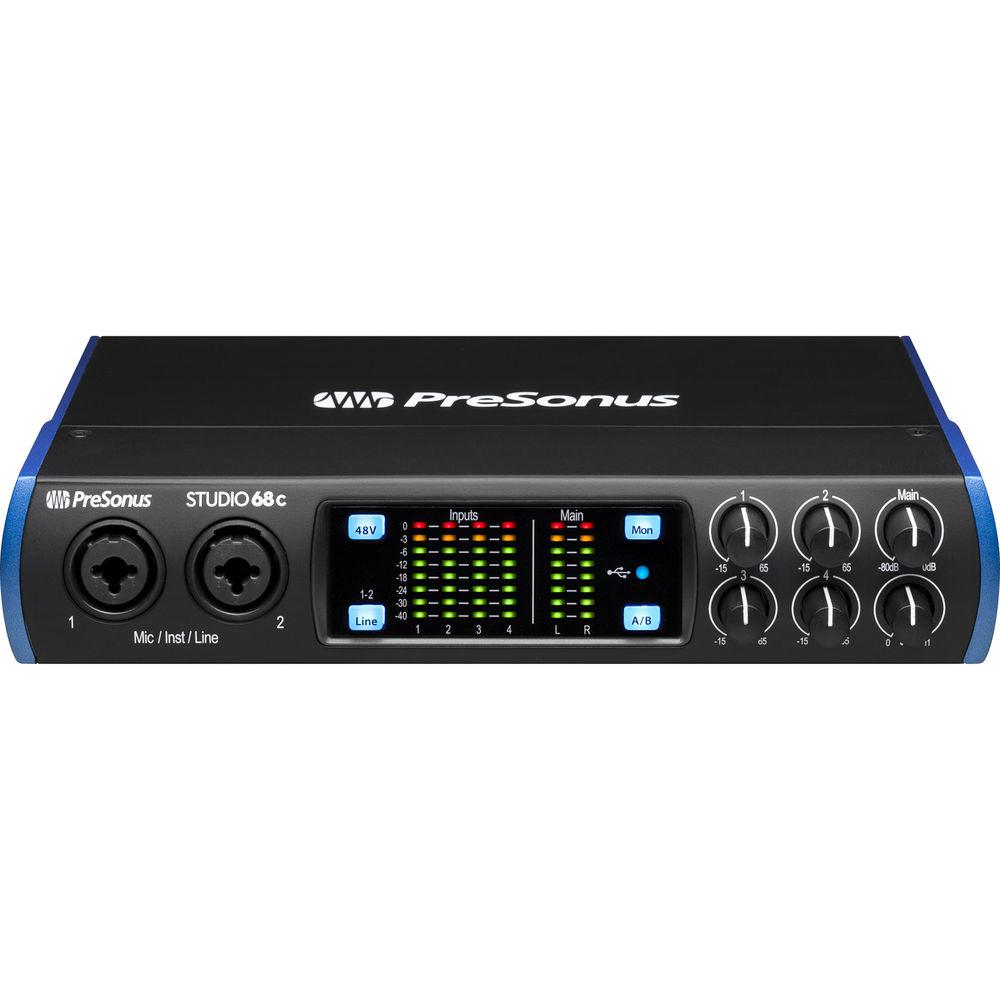

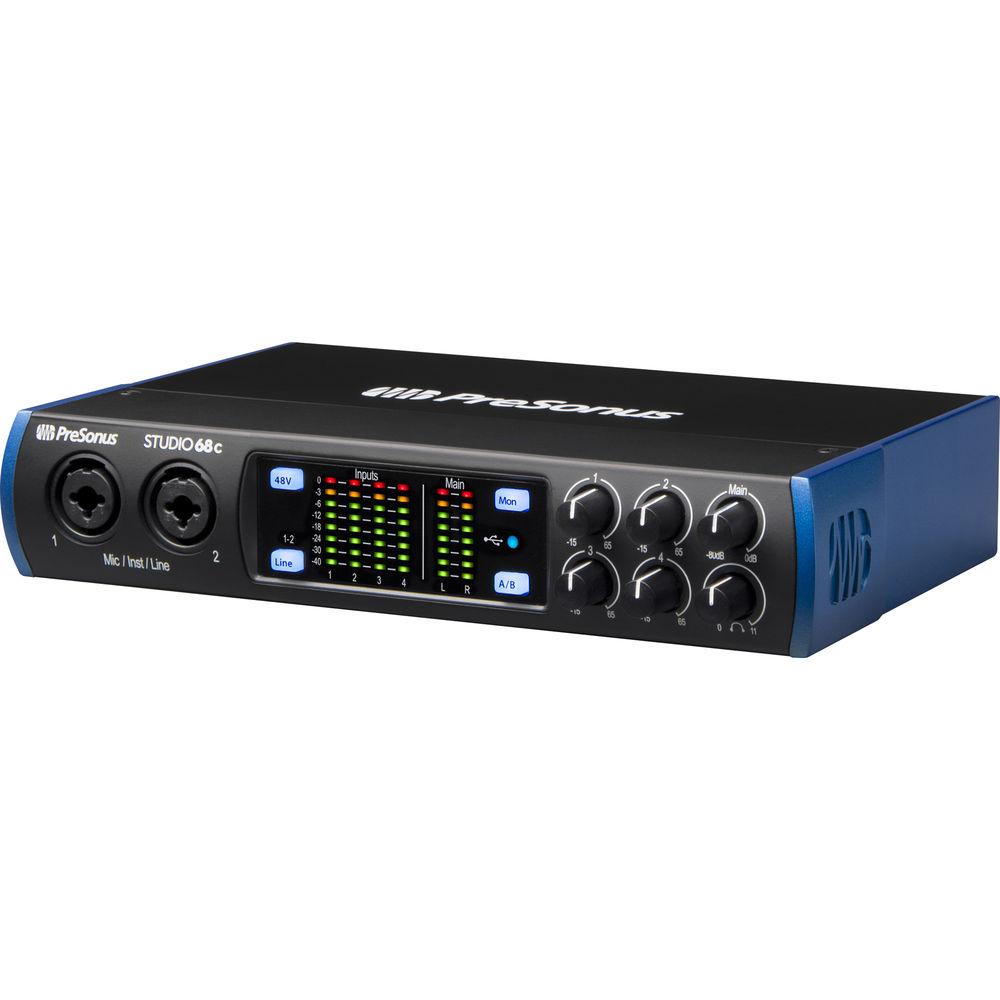

Product description The PreSonus Studio 68c is a 6x6 USB Type-C audio/MIDI interface offering high-resolution conversion and a powerful software package for vocalists, musicians, and podcasters in home/project studios and mobile setups. Connect mic-, instrument-, or line-level sources via four XLR-1/4" combo inputs, each utilizing its own gain control and XMAX Class-A mic preamp with selectable phantom power. Operate at up to 24-bit / 96 kHz resolution without sacrificing channel count or 176.4 kHz or 192 kHz sample rates with 4x4 I/O functionality.The Studio 68c has four balanced 1/4" line outputs. The first two are fed by a dedicated level control for use with a pair of active monitors. A 1/4" TRS stereo headphone output with a front-panel volume knob accommodates a set of headphones. With the supplied breakout cable, the rear-panel 9-pin connector provides S/PDIF and MIDI I/O to simply hookup stereo digital audio gear and MIDI equipment such as a controller, synthesizer, or sound module.The Studio 68c includes USB cables for easy connectivity to your compatible macOS- or Windows-equipped computer. It is powered via a 12 VDC power adapter. Also supplied is a software bundle featuring the Studio One Artist DAW and the Studio Magic plug-in suite—a slew of creative tools for producers, engineers, songwriters, and more. - Compact and portable audio/MIDI interface ideal for vocalists, musicians, and podcasters
- AD/DA conversion at up to 24-bit / 192 kHz resolution
- Four XLR-1/4" combo inputs—two support mic/instrument/line level, two support mic/line level
- Line switch toggles inputs 1-2 between line and instrument level
- XMAX Class-A mic preamps with selectable 48 VDC phantom power
- Dedicated controls for input gain, main output level, and headphone volume

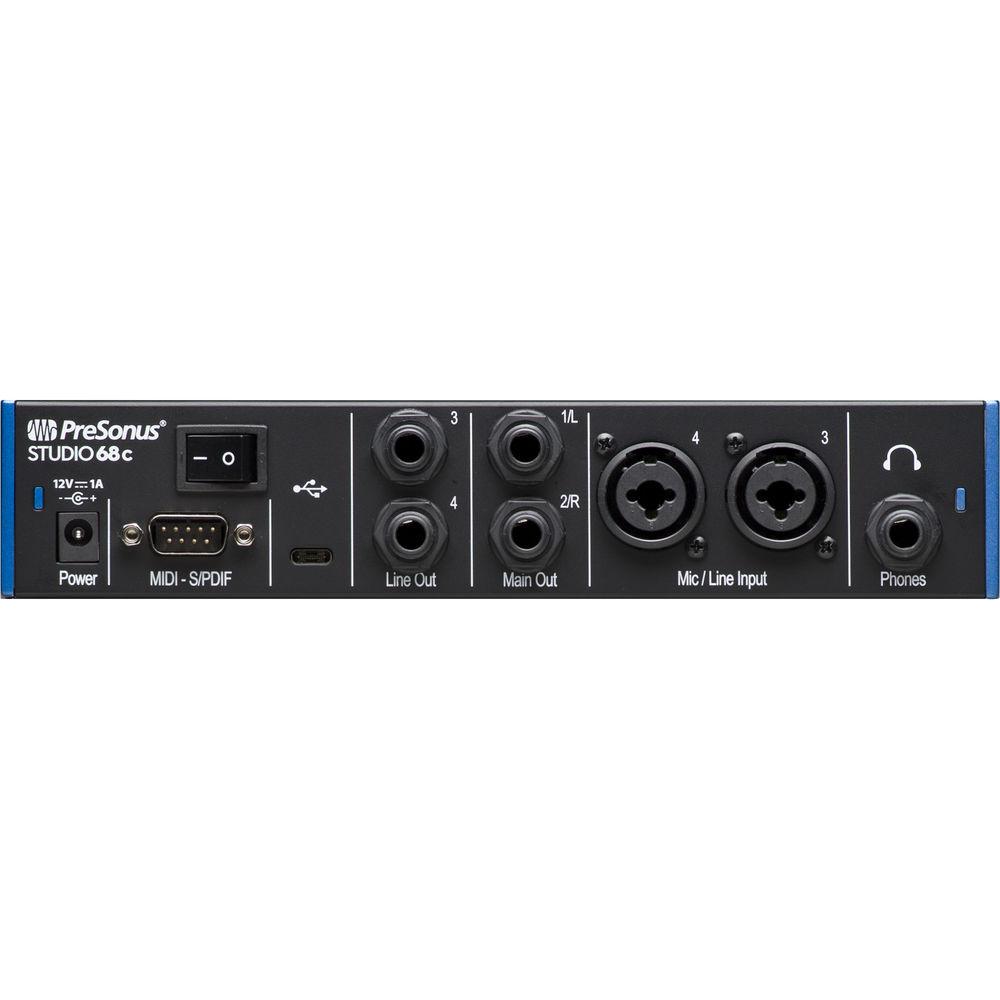

- Two balanced 1/4" main/line outputs and two additional balanced 1/4" line outputs
- 1/4" stereo headphone output with A/B button for easy monitoring of outputs 1-2 or 3-4
- Mon switch allows low-latency direct input monitoring

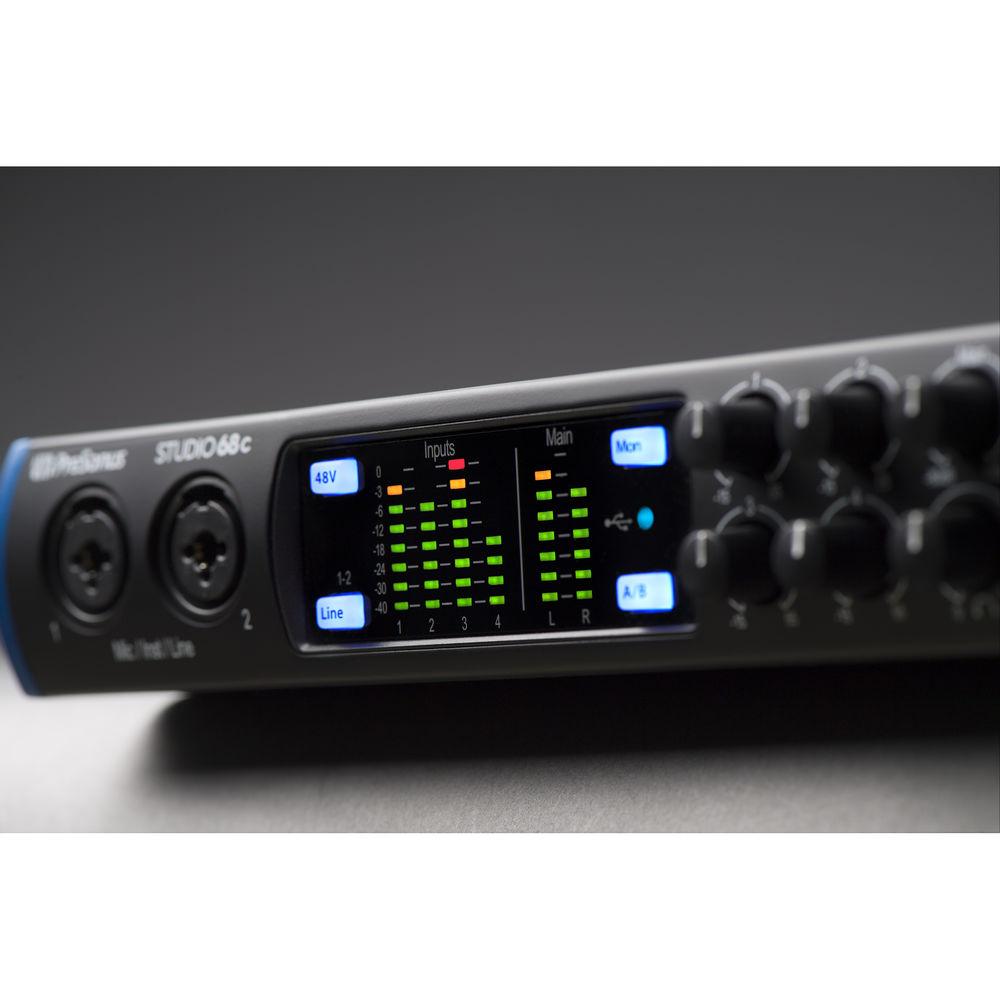

- Multi-segment LED meters display levels for inputs and main outputs
- 9-pin port for breakout to S/PDIF and MIDI I/O via supplied breakout cable
- Powered via included 12 VDC power adapter
- Includes Studio One Artist DAW software
- Includes Studio Magic plug-in suite with seven plug-ins ranging from EQ to virtual instruments
UPC: 673454007972 In the Box PreSonus Studio 68c 6x6 USB Type-C Audio/MIDI Interface 3.3' USB Type-C Cable 3.3' USB Type-A to USB Type-C Cable Breakout Cable for MIDI and S/PDIF I/O External Power Supply Limited 1-Year Warranty User Manual PDF 8.2mbufbwacqebcrrvwzwvwvx Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Studio 68c 6x6 USB Type-C Audio MIDI Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus Studio 68c Specs | | | Channels of I/O | Analog:
4 Inputs / 4 Outputs
Digital:
2 Inputs / 2 Outputs | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Display and Indicators | 1 x LED (Host Connection)
1 x LED (+48V)
1 x LED (Monitoring Mode)
1 x LED (Input Selection)
1 x LED (Output Selection)
2 x Multi-Segment LED Meters (Input Level)
2 x Multi-Segment LED Meters (Output Level) | | | | Host Connection | 1 x USB Type-C (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x Combo XLR / 1/4" Balanced Mic/Line Input
4 x 1/4" (6.3 mm) TRS Balanced Line Output
1 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output | | Phantom Power | +48 V (Applied to All Inputs) | | Digital I/O | 1 x DB9 / Breakout Cable, S/PDIF (I/O) In/Out | | MIDI I/O | 1 x 5-Pin MIDI In (On Breakout Cable)
1 x 5-Pin MIDI Out (On Breakout Cable) | | Memory Card Slot | None | | | | Frequency Response | Mic/Line Inputs:
20 Hz to 20 kHz
