User Manual for PreSonus Studio Channel Click to enlarge the picture
Contents of the user manual for the PreSonus Studio Channel
- Product category: Channel Strips PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Channel Strips
 |
User manual for the PreSonus Studio Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

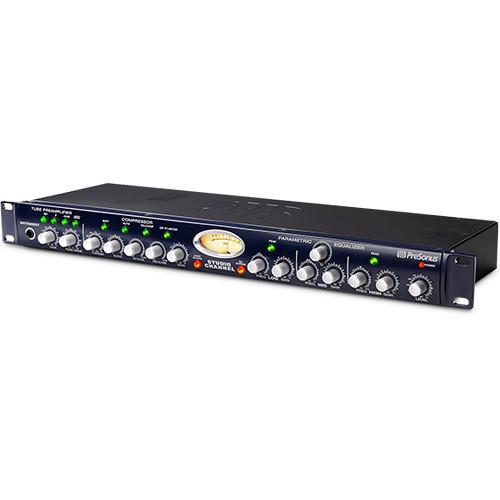

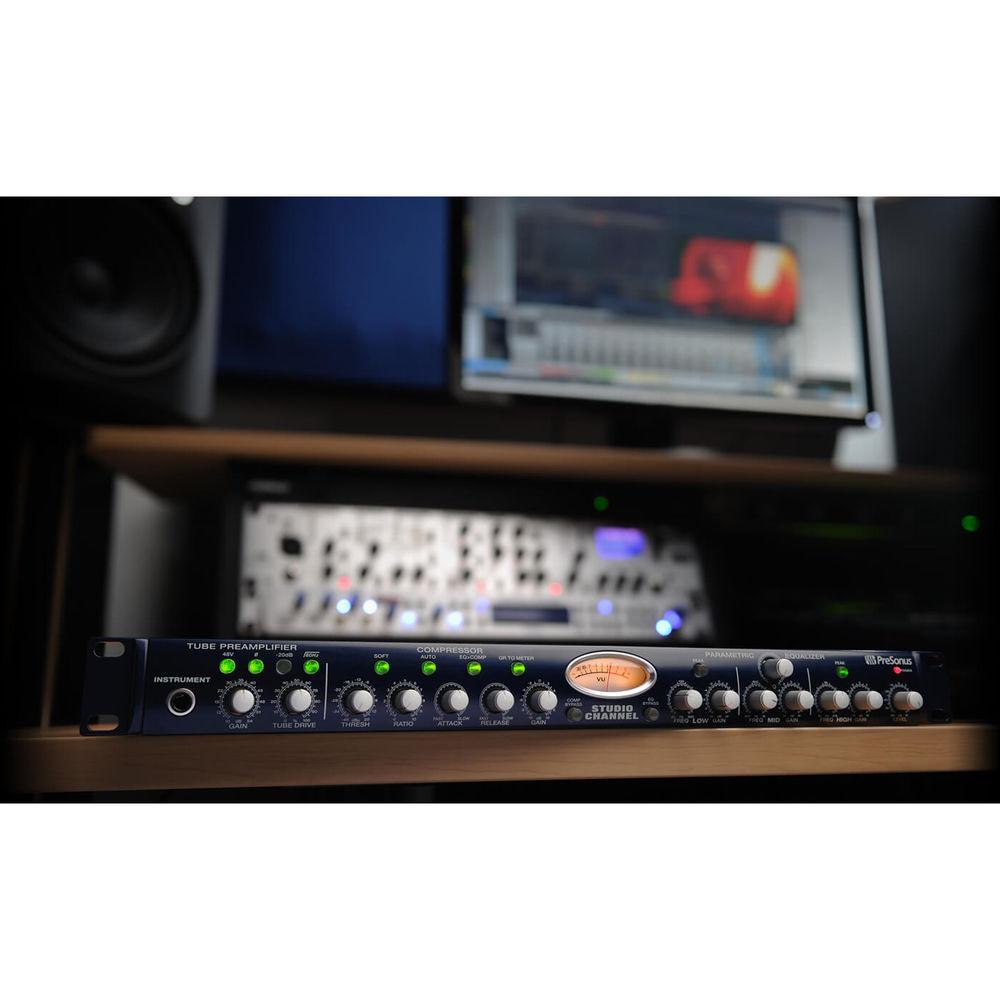

Product description The Presonus Studio Channel is a channel strip that features a tube preamp, a VCA compressor, and a 3-band parametric EQ. The tube preamp section features two knobs: Gain and Tube Drive. This allows you to adjust the amount of signal that hits the tube circuitry, opening up a wide range of sonic options. The VCA compressor section is well-suited to help all different kinds of audio sit nicely in a mix, whether it's percussion with fast transients, or smooth and silky vocals. The parametric EQ features a custom amplifier with a gain control on each of the 3 bands, with a variable Q knob on the mid frequency.If you're curious about outboard gear and want to upgrade your signal path from the stock preamp found on most audio interfaces, the Presonus Studio Channel is an excellent choice for deeper sonic exploration. Likewise, experienced professionals will appreciate the Studio Channel's solid set of sound shaping tools, as well as its afforable pricetag. - Class-A Vacuum Tube Preamp
- The Studio Channel features a high-voltage 12AX7 tube with both Gain and Tube Drive controls, giving you the ability to dial in a variety of different tones.

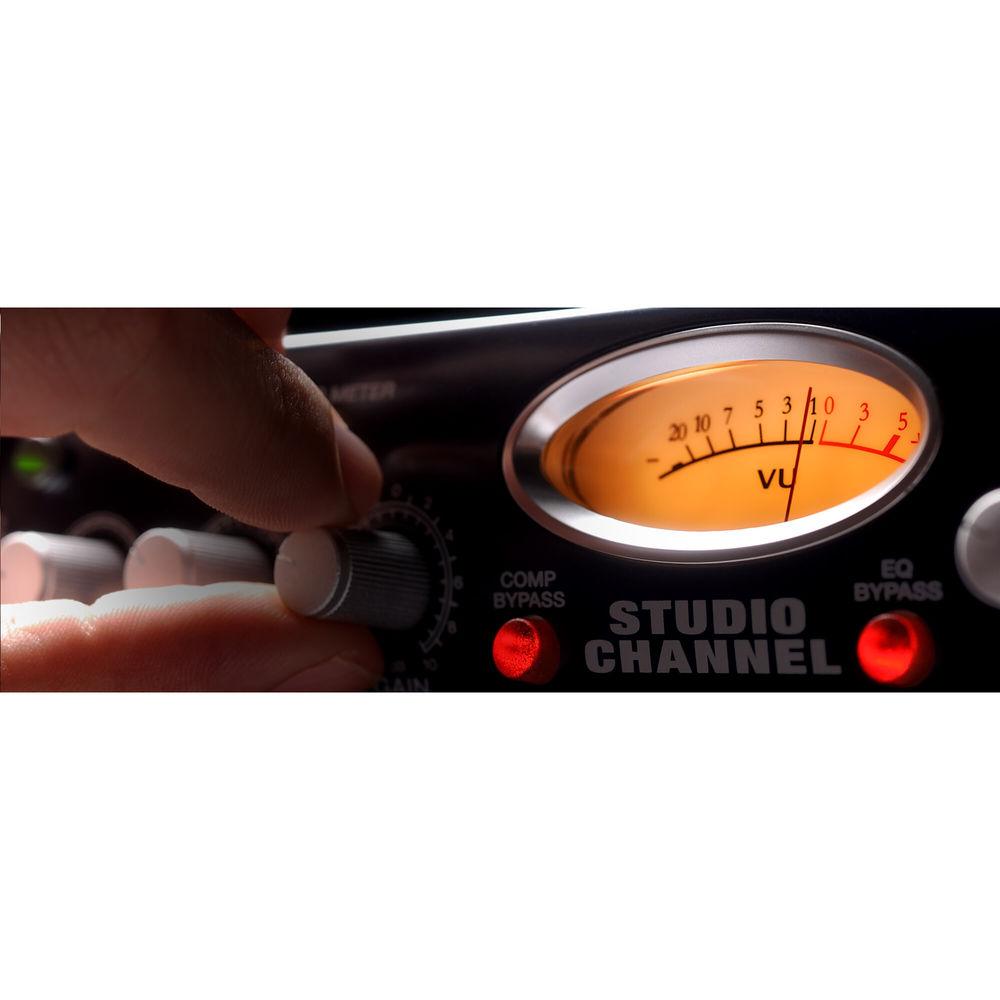

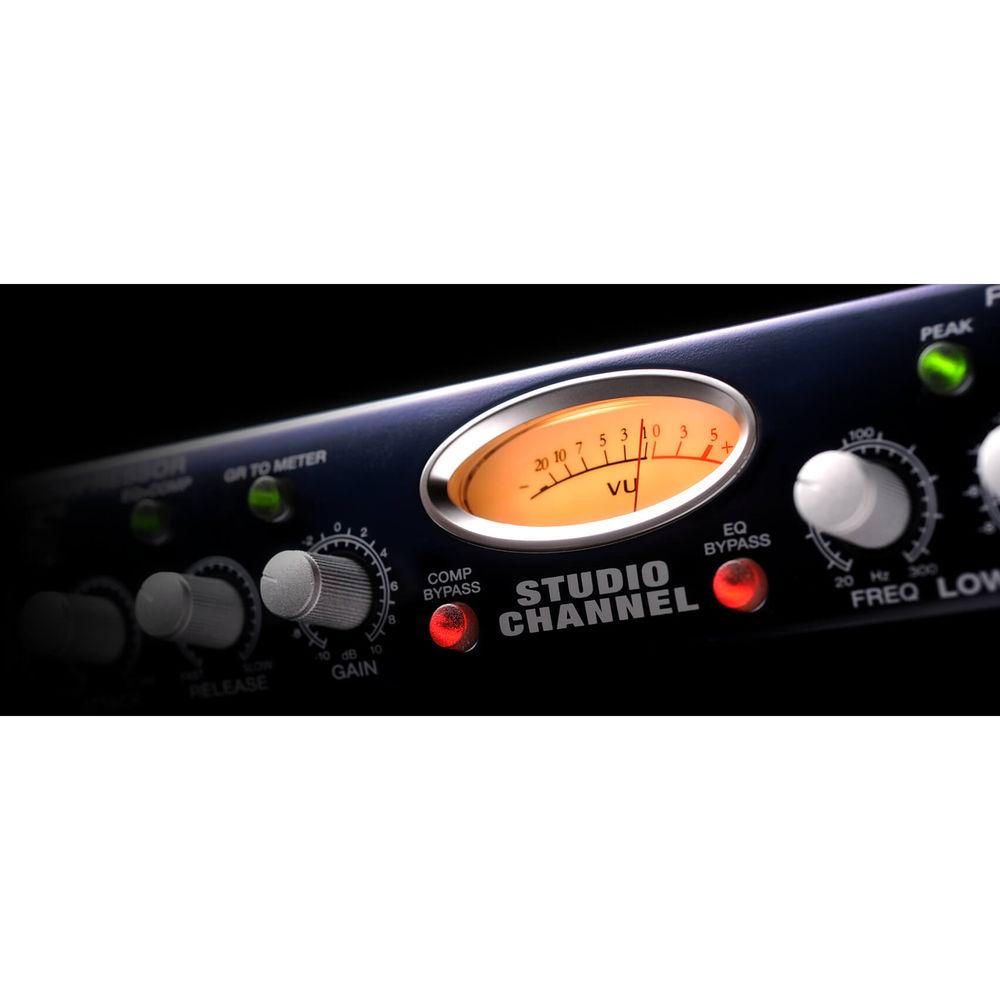

- VU Meter
- The illuminated VU meter displays both output level and gain reduction.
- A Host of Useful Tools and Controls
-
- 80 Hz High-Pass Filter
- 20 dB Pad
- Phase Invert
- Make-Up Gain, Auto, and Soft (Compressor Section)
- Low Noise Design
UPC: 673454001000 In the Box PreSonus Studio Channel External Power Supply One (1 ) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Studio Channel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

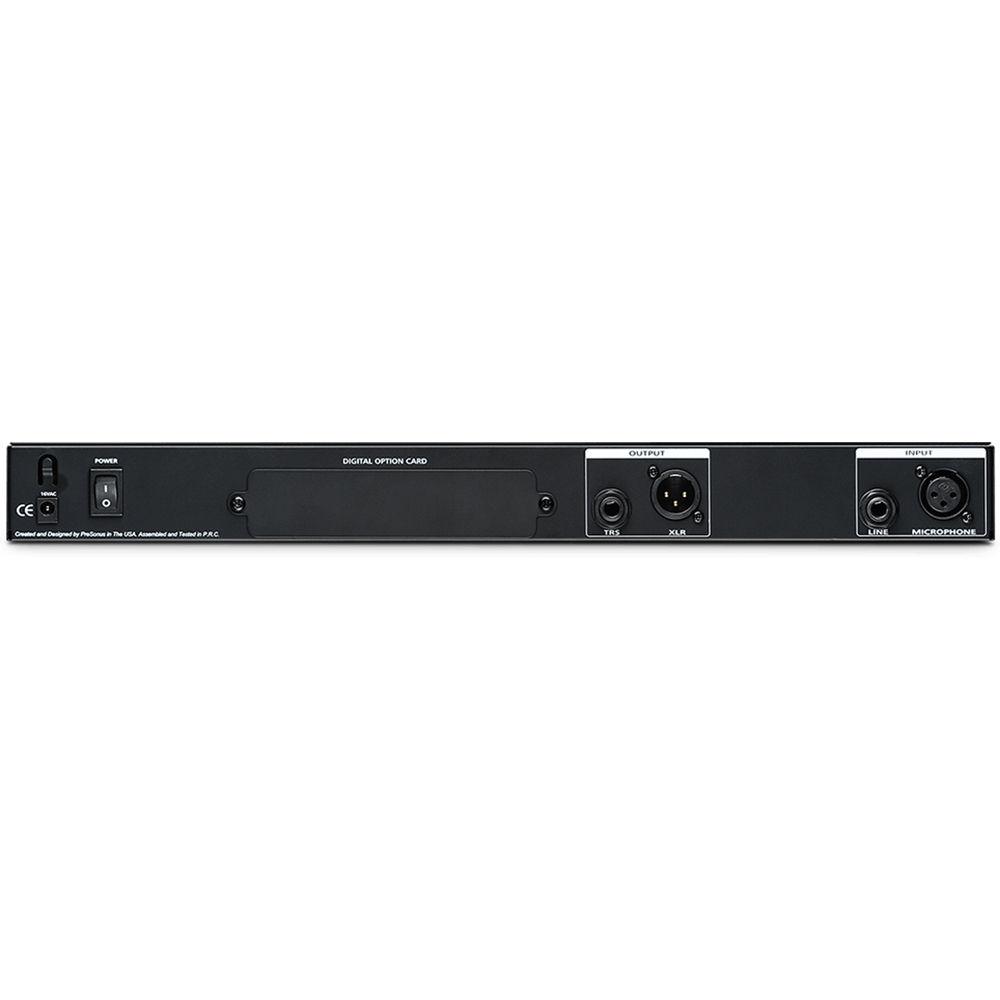

Technical parametersPreSonus STUDIO CHANNEL Specs | Number of Channels | Single | | Inputs | 1 x XLR
1 x 1/4" TS, unbalanced | | Outputs | 1 x XLR
1 x 1/4" TRS, balanced | | Frequency Response | 10 Hz to 50 kHz | | Noise | -96 dBu | | | | Gain Range | -6 to +66 dB (+/-10 dB trim on line input) | | Maximum Output | +22 dBu | | Phantom Power | +48V | | | | Threshold Range | -40 to +2 dBu | | Ratio | 1-10 (1:1 to 2:1) | | Attack Time | 0.1 to 200 ms | | Release Time | 0.05 to 3S ms | | Sidechain | No | | Frequency Bands | Low frequencies = variable from 40 to 500 Hz Mid frequencies = variable from 200 Hz to 3 kHz High frequencies = variable from 2 to 20 kHz | | Range (Boost/Cut) | Low and high frequencies = variable between +/-10 dB Mid frequencies = variable from -10 to +10 dB | | | | Power Requirements | 120 VAC, 60 Hz for included external power adapter | | Dimensions (WxDxH) | 19 x 5.5 x 1.75" (483 x 140 x 44 mm) | | Weight | 5 lb (2.3 kg) | | Specialties | Tube gain and tube drive EQ Pre/Post compressor switch | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 23.8 x 12.0 x 4.9" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
