Product description StudioLive 16.0.2 USB: A 16 x 2 Performance and Recording Digital Mixer Read More - PreSonus StudioLive 16.0.2 USB

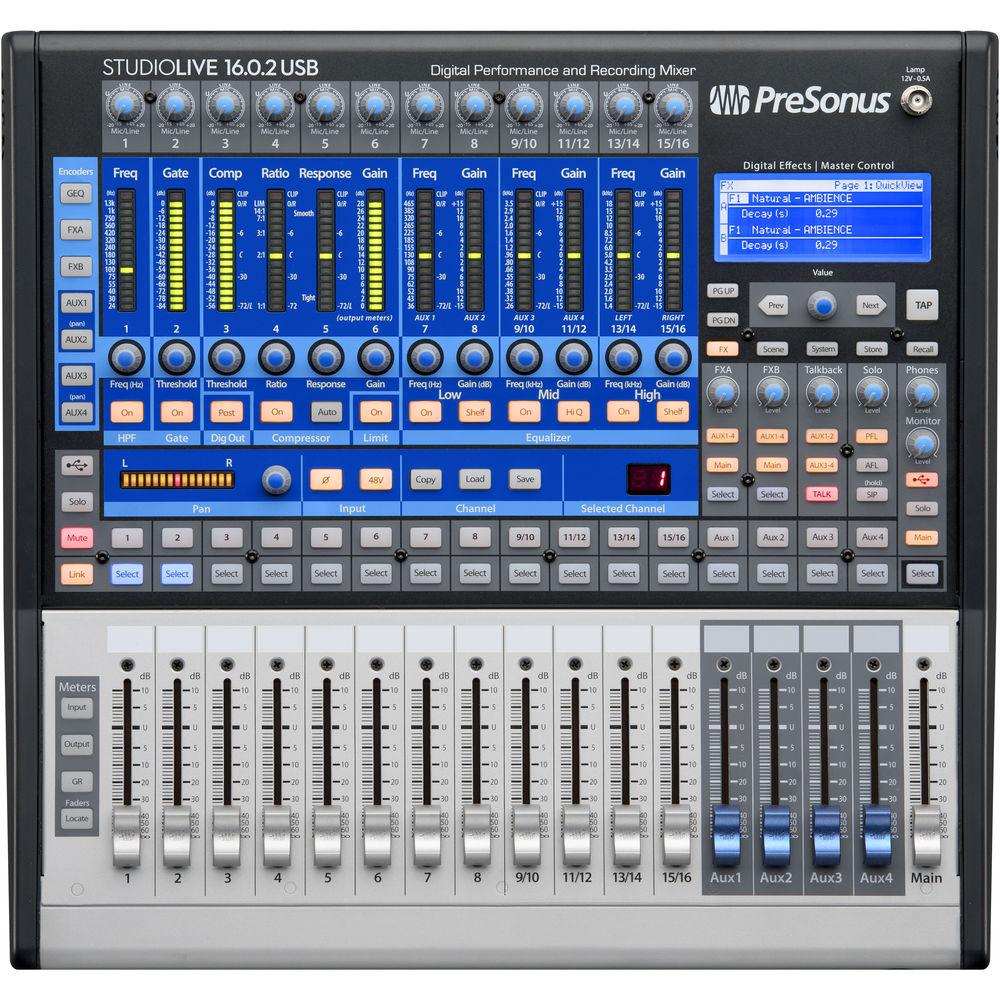

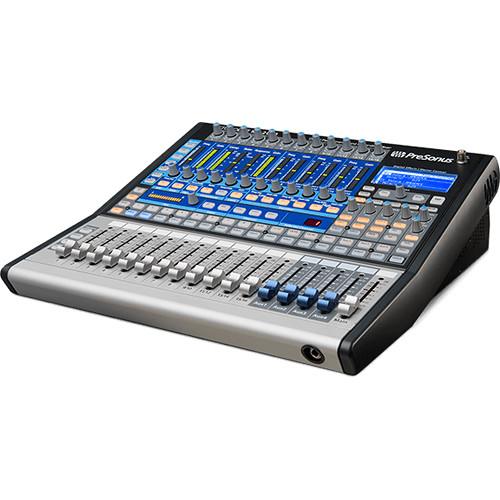

The PreSonus StudioLive 16.0.2 USB Performance & Recording Digital Mixer is a compact yet powerful digital mixer with an 18 x 16 USB interface for direct recording with Mac- or Windows-based DAW software. Its compact frame features 16 inputs—including 8 mono mic/line balanced inputs and 4 stereo line input channels—all fitted with 60mm precision faders. All mono input channels feature PreSonus' high-headroom, Class-A XMAX mic preamplifiers for maximum gain, a low noise floor, and detailed audio quality.The StudioLive 16.0.2 USB delivers the gamut of DSP processing including gate, compression, channel EQ, 31-band graphic EQ, and two stereo 32-bit digital effects processors with customizable reverb and delay presets. There are 2 dedicated effects buses and 4 auxiliary buses (pre- and post-fader assignable) for flexible signal routing. The mixer's flexible remote-control features and its compact design allow for a variety of portable applications.The StudioLive 16.0.2 USB is bundled with PreSonus Studio One Artist recording software, Capture, UC Surface, and QMix software. UC Surface enables full-duplex remote control with an iPad, iPhone, or laptop, making it an ideal solution for use on stage, in live sound reinforcement applications and remote recording, and more. The Studio Magic Plug-in Suite is also included, which adds a wealth of fresh sound and effects to Studio One. The StudioLive 16.0.2 ships with a power cord and a USB cable. 8 Mono Mic/Line Channel Inputs - High-headroom, Class-A XMAX mic preamplifier
- XLR mic and balanced 1/4" line inputs
4 Stereo Line Channel Inputs - High-headroom, Class-A XMAX mic preamplifiers (Ch. 9, 11, 13, and 15)
- XLR mic inputs (Ch. 9, 11, 13, and 15)
- Balanced 1/4" line inputs (Ch. 9-16)
- Unbalanced RCA line inputs (Ch. 13-16)
- 60mm precision faders (4 stereo)
- 4 auxiliary buses (pre- and post-fader send)

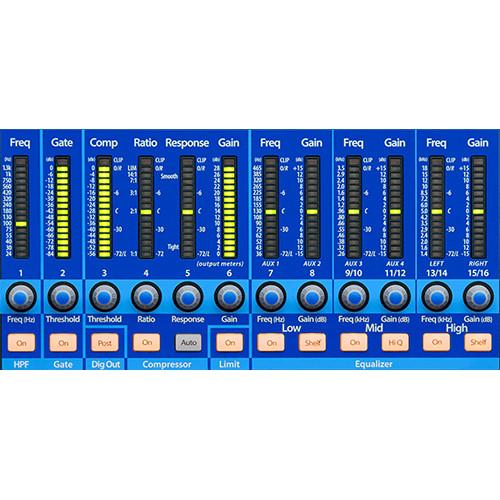

Fat Channel Signal Processing on all Channels and Buses - 3-band, semi-parametric EQ (individual band on/off)
- Standard downward expander
- Phase reverse (12 mic preamplifiers only)
- Pan with dedicated 15-LED display
- Stereo link for input channels and aux buses
18-In/16-Out USB Recording Interface (24-bit/44.1 kHz and 24-bit/48 kHz) - Compatible with most audio software via ASIO, Windows Audio, and Core Audio
Software Bundle for Mac & Windows - PreSonus Studio One Artist Digital Audio Workstation: A completely modern professional environment for music recording, mixing, mastering, sharing, and collaboration. It’s Internet-savvy, and the mixer provides a complete solution by combining the features you really need with simple operation. Based on an ergonomic user interface and a content browser with powerful drag-and-drop functionality, feature-rich Studio One will let you work quickly and stay focused on your inspiration
- PreSonus Capture Live-Recording Software: Designed exclusively for StudioLive mixers, Capture multitrack recording software allows instant setup and one-click recording of up to 64 tracks (at up to 96 kHz) directly from the mixer, with no configuration. Capture simplifies your live-recording environment, providing only the tools necessary to do a true virtual soundcheck and record a great performance, without placing huge demands on your CPU. Additionally, Capture looks and operates like a classic multitrack hard-disk recorder, so it's instantly familiar. Best of all, Capture uses the 64-bit Studio One audio engine, so your tracks will sound great
- PreSonus UC Surface Mixer-Control Software: Designed primarily for live mixing but also well suited to the studio, free UC Surface touch-control software for Mac, Windows, and iPad provides bidirectional control and editor/librarian functions for all StudioLive AI- and RM-series Active Integration digital mixers and for Studio 192 and Studio 192 Mobile recording interfaces. UC Surface supports Windows touchscreens and networks via wired or wireless connections. It also integrates Rational Acoustics' Smaart Measurement Technology for professional room tuning and measurement, including the Smaart Spectra RTA (with time-frequency Spectrograph) and easy-to-use wizards
-
- QMix: With the free PreSonus QMix software, up to ten musicians can simultaneously control their StudioLive monitor (aux) mixes using an iPhone or iPod touch. Four different mixes with a 16.0.2 QMix works a lot like SL Remote—one or more iPhones network wirelessly with a Mac or Windows computer, enabling QMix to remote-control Virtual StudioLive, which in turn controls one or more FireWire-connected StudioLive mixers. When each iPhone connects to the new network, its copy of QMix will discover all StudioLive mixers on the network—in this way, each musician can quickly and easily create an aux mix that includes all mixer channels. In the Virtual StudioLive portion of Universal Control, permissions can be set so that each iPhone user can only control one specified mix (or all mixes)—bandmates can't mess with each other's monitors
- Provides wireless control over aux mixes in Virtual StudioLive, and hence, over aux mixes in any StudioLive-series digital mixer
- Portrait view shows Wheel of Me, where you can select multiple "Me" channels and control their levels simultaneously
- Landscape view provides control of all aux-send levels and panning (for linked auxes)
- Aux mixes can be named (up to 10 characters)
- Tap tempo for delay effects
- Control the auxes on any StudioLive mixer on the wireless network via one iPhone or iPod touch
- Multiple iPhones and iPod touches can control the same StudioLive
- Set permissions in VSL so each iPhone and iPod touch can control only one specific aux mix
- Available free from the Apple App Store
MIDI Control Mode Provides Control Over - Scene and FX Preset recall
- Main Volume, FXA, and FXB output levels
- FXA and FXB assign/unassign to Mains
Additional Features - 4 aux buses (pre- and post-fader send)
- 2 x stereo 32-bit digital effects processors with customizable reverb and delay presets
- One 31-band stereo graphic EQ (on main outputs only)
- Settings can be copied among channels and buses and saved as user presets
- Lockout mode protects your settings from meddlers and accidents
- Includes Studio Magic Plug-In Suite: This suite of plug-ins adds a wealth of fresh sounds and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor to your songs. These plug-ins aren't gimmicky one-trick ponies; they are "real-deal" workhorses that you'll rely on for countless mixes
UPC: 673454006210 In the Box PreSonus StudioLive 16.0.2 USB Performance & Recording Digital Mixer Power Cord Capture, UC Surface, QMix, and Studio One Artist Recording & Production Software Studio Magic Plug-In Suite USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus StudioLive 16.0.2 USB Performance & Recording Digital Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus STUDIOLIVE 1602 USB Specs | System Requirements | Mac
Mac OS X 10.8.5, 64-bit or later
Intel Core™ 2 Duo processor (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommended
30 GB hard disk space
Monitor with 1366 x 768 resolution
Windows
Windows 7 x64/x86 SP1 + platform update, 8.1 x64/x86, 10 x64/x86
Intel Core 2 Duo (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommended
30 GB hard disk space
Monitor with 1366 x 768 resolution
iOS
iOS 9.3 or later
iPad Pro, Air 2, Air, mini 4, mini with Retina display, 4th generation, mini, 3rd generation, 2
Android
Android 5.0 (Lollipop) or later
Android smartphone (QMix-UC)
Android tablet (8") with 1024 x 768 resolution (UC Surface) | | | | Type | XLR female, balanced | | Frequency Response | Frequency Response to Direct Output (at Unity Gain, Unweighted): 20 Hz to 20 kHz, 0/-0.5 dBu
Frequency Response to Main Output (at Unity Gain, Unweighted): 20 Hz to 20 kHz, ± 0.5 dBu | | Input Impedance | 1 kOhm | | THD | THD to Direct Output (1 kHz at Unity Gain): <0.005%, +4 dBu, 20 Hz to 20 kHz, unity gain, unweighted
THD to Main Output (1 kHz at Unity Gain): 0.005%, +4 dBu, 20 Hz to 20 kHz, unity gain, unweighted | | EIN | EIN to Direct Output: +125 dB unweighted, +130 dB A-weighted | | Signal-to-Noise Ratio | Direct Output (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted): -102 dB Main Output (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted): -95 dB | | Common Mode Rejection | +65 dB (1 kHz at unity gain) | | Gain Control | Gain Control Range (± 1 dB): -16 to +67 dB | | Max Input Signal | Maximum Input Level (Unity Gain) +16 dBu | | Phantom Power | +48 VDC | | | | Connector Type | Balanced: 1/4" TRS female, balanced mono
Unbalanced: RCA female, unbalanced (stereo pair) | | Balanced Audio | Frequency Response to Direct Outputs (at Unity Gain): 10 Hz to 40 kHz, 0/-0.5 dBu
Frequency Response to Main Outputs (at Unity Gain): 20 Hz to 20 kHz, 0/-0.5 dBu
Input Impedance: 10 kOhms
THD to Direct Output (1 kHz at Unity Gain): <0.0007%, +4 dBu, 20 Hz to 20 kHz, unity gain, unweighted
THD to Main Output (1 kHz at Unity Gain): <0.005%, +4 dBu, 20 Hz to 20 kHz, unity gain, unweighted
S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, Unity Gain, A-Weighted): -105 dB
S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, Unity Gain, A-Weighted): -95 dB
Gain Control Range (± 1 dB): -20 to +20 dB

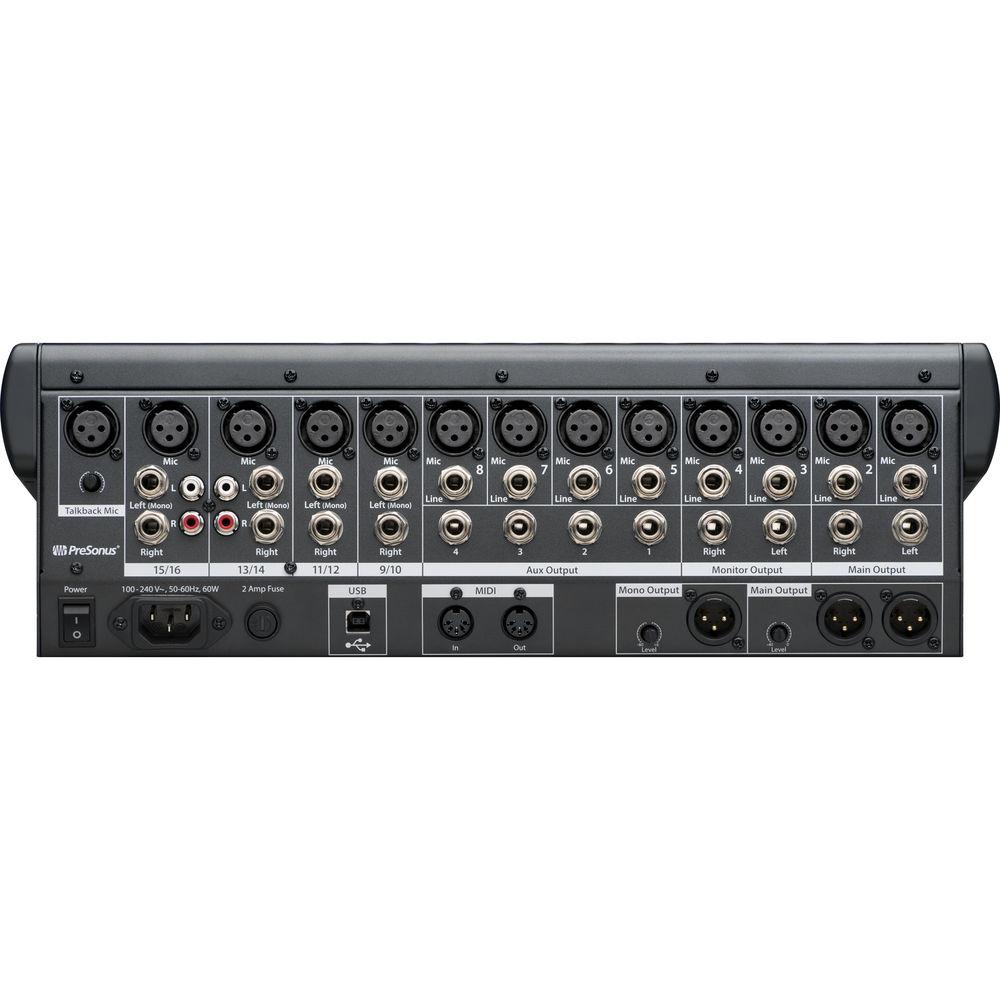

Maximum Input level (Unity Gain): +22 dBu | | Unbalanced Audio | Maximum Input Level: +22 dBu | | Connector Type | Main: XLR male, balanced (stereo pair); 1/4" TRS female, balanced (stereo pair)
Aux: 1/4" TRS female, balanced (mono) Monitor: 1/4" TRS female, balanced (stereo pair) | | Output Level | Main: +24 dBu
Aux: +18 dBu Monitor: +18 dBu | | Output Impedance | Main: 100 Ohms
Aux: 100 Ohms Monitor: 100 Ohms | | Crosstalk | Input to Output (Ref = +4 dBu, 20 Hz to 20 kHz, Unweighted): -90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, Unweighted): -87 dBu | | Gate | Threshold Range: -84 to 0 dB
Attack Time: Adaptive (0.2 to 2.5 ms) Release Time: 70 ms
Expander Attenuation Range: 2:1 | | Compressor | Threshold Range: -56 to 0 dB
Ratio: 1:1 to 14:1 Response Time (Attack/Release): 0.2 ms/1.0 s ("Tight") to 180 ms/1.0 s ("Smooth")
Auto Attack and Release: Attack = 10 ms, Release = 150 ms Curve Types: Hard and soft knee | | EQ Section | Type: 2nd-order shelving filter (Q = 0.55)
Low (Low-Pass or Bandpass): 36 to 465 Hz, ±15 dB Mid: 260 Hz to 3.5 kHz, ±15 dB
High (High-Pass or Bandpass): 1.4 to 18 kHz, ±15 dB | | Digital Audio | Host Interface: USB 2.0
ADC Dynamic Range (A-Weighted, 48 kHz): 118 dB
DAC Dynamic Range (A-Weighted, 48 kHz): 118 dB
Internal Processing: 32-bit, floating point
Sampling Rate: 44.1, 48 kHz
A/D/A Bit-Depth: 24-bit
Reference Level for 0 dBFS: +18 dBu | | Clock | Jitter: < 20 ps RMS (20 Hz to 20 kHz)
Jitter Attenuation: > 60 dB (1 ns in ≈ 1 ps out) | | Power | Connector: IEC
Input-Voltage Range: 90 to 240 VAC (factory-configured for country of destination) Power Requirements (Continuous): 100 W | | Dimensions (LxWxH) | 15.6 x 16.0 x 5.5" / 395.2 x 406.4 x 139.7 mm | | Weight | 20 lb (9.07kg) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 24.0 x 22.0 x 11.0" |
