User Manual for PreSonus StudioLive 32SC Series III S 32-Channel Subcompact Digital Mixer Recorder Interface Click to enlarge the picture
Contents of the user manual for the PreSonus StudioLive 32SC Series III S
- Product category: Digital Mixers PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Digital Mixers
 |
User manual for the PreSonus StudioLive 32SC Series III S contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

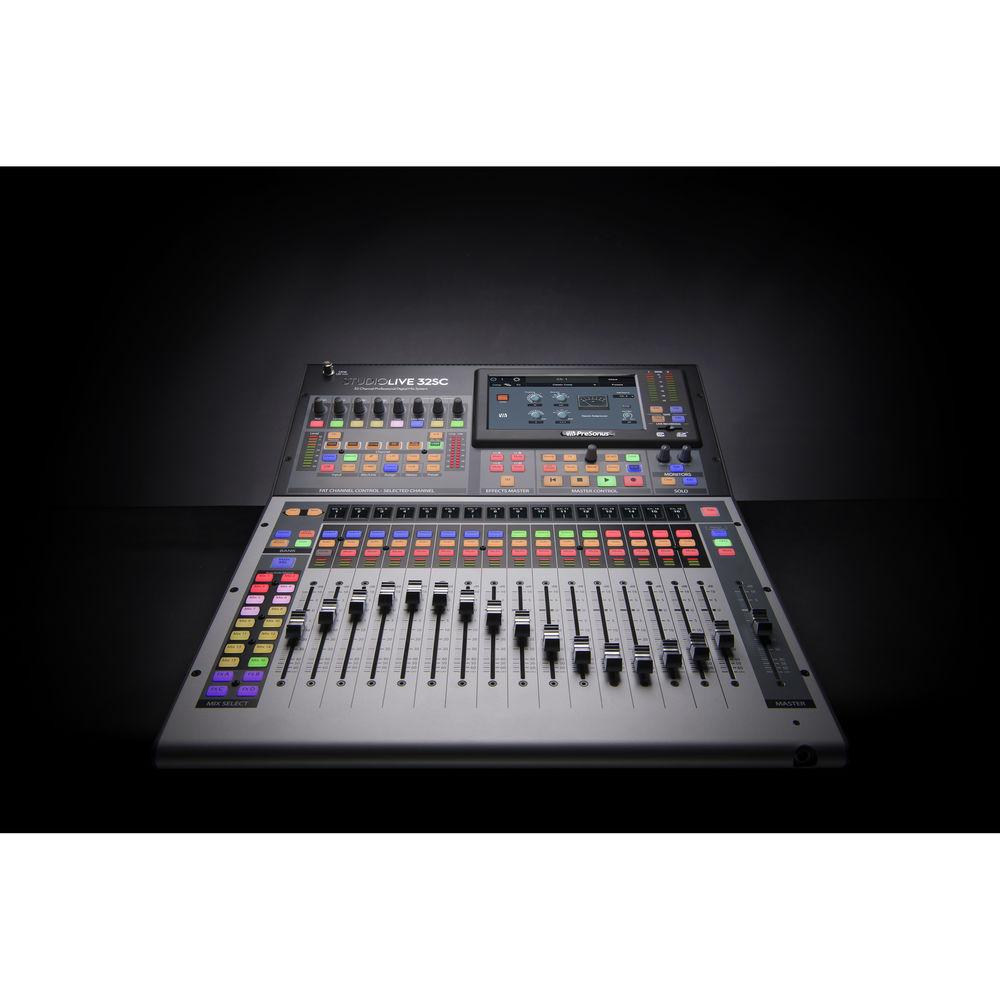

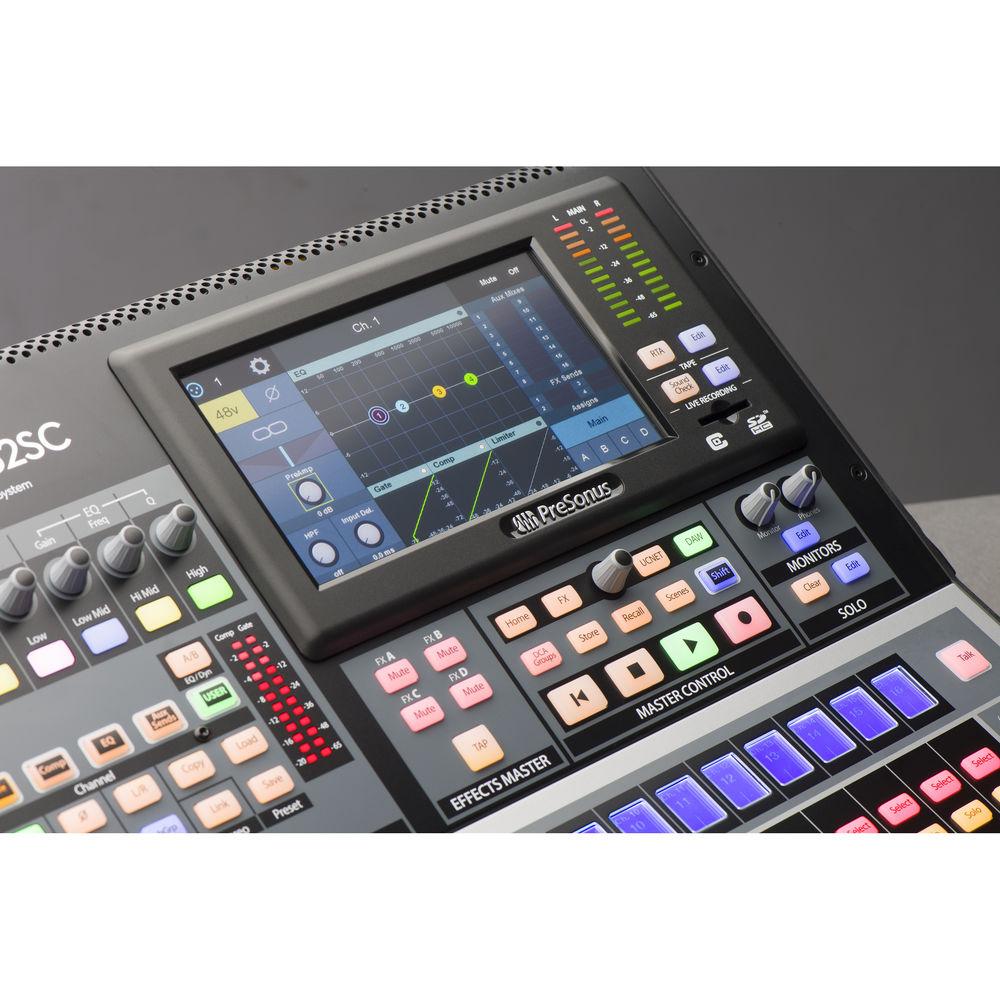

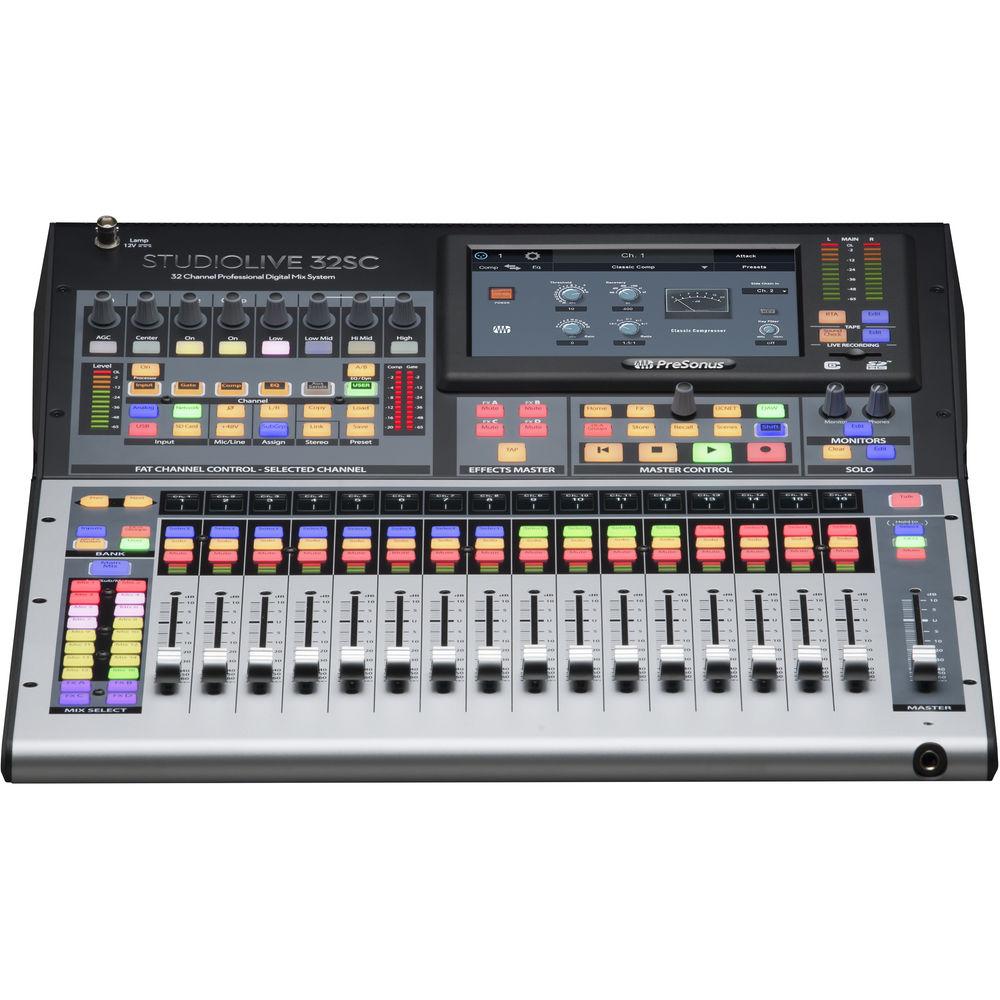

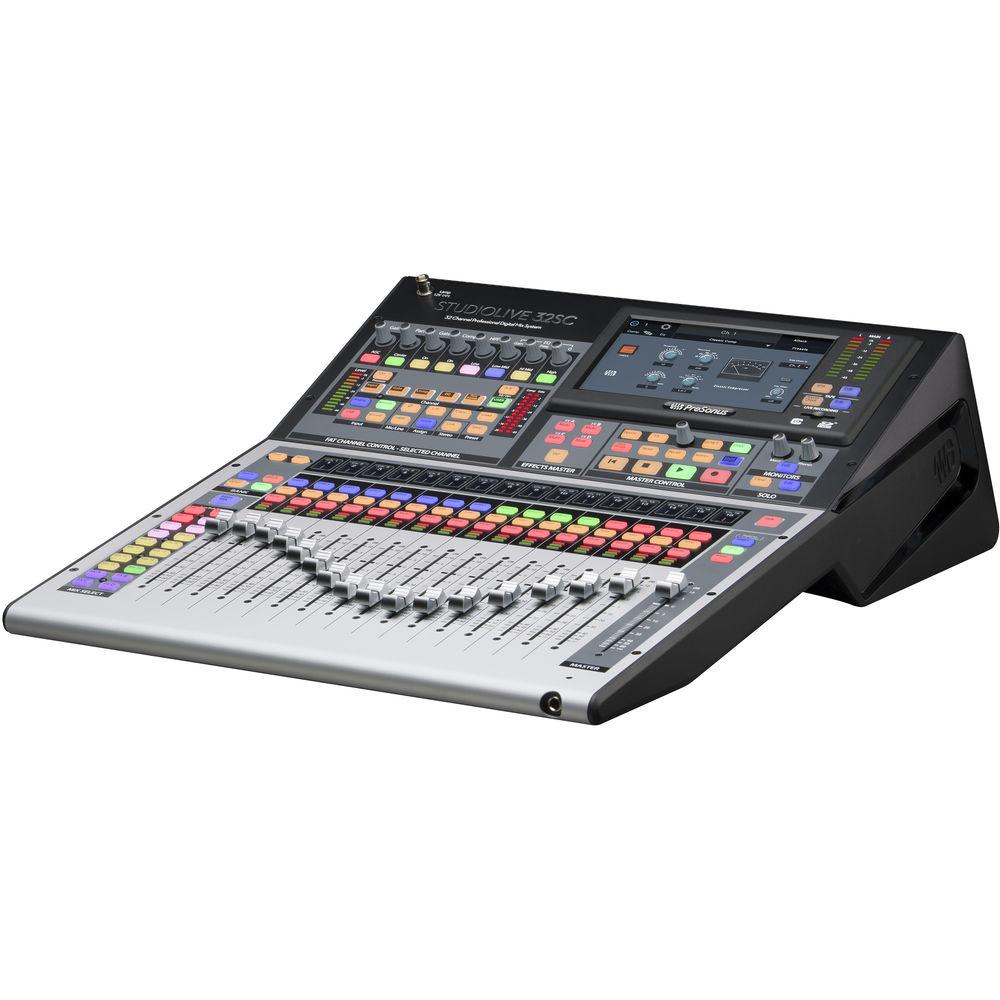

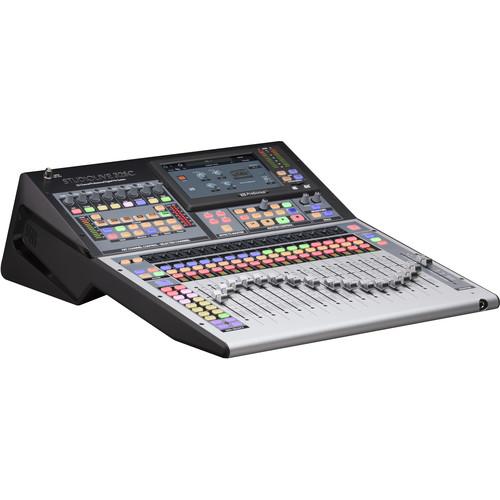

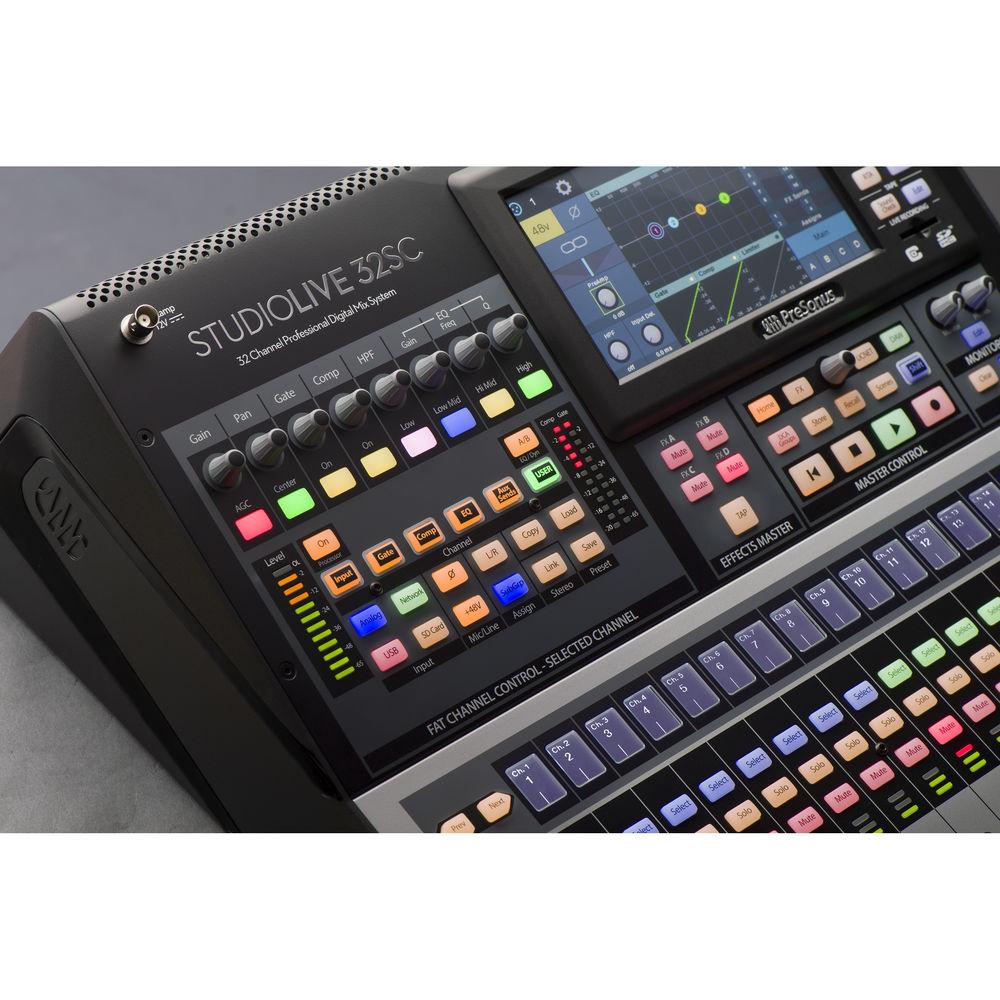

Product description PreSonus Announces StudioLive Series III S Digital Mixers Read More Designed for live sound reinforcement, live recording, and studio recording applications, the PreSonus StudioLive 32SC is a Series III S 32-channel digital console, recorder, and audio interface in a subcompact, rack-mountable frame. The mixer features an integrated hardware and software system with a full-color touchscreen, 17 touch-sensitive, motorized faders, and 16 recallable XMAX preamps. The powerful dual-core FLEX DSP engine supercharges the mixer with Fat Channel vintage-style EQs and compressors on every channel, plus a four-slot FLEX FX processor that can run heralded digital reverbs and delays. Streamline your workflow with recallable scene presets, virtual sound check, and the supplied software library, which empowers you with remote control from a computer or iPad, remote monitor mixing using a mobile device, and all the software you need to track, edit, mix, and distribute your music.The StudioLive 32SC boasts eight XLR mic inputs and eight mic/line inputs via XLR-1/4" combo jacks. Additional inputs include four 1/4" aux inputs and a dedicated XLR talkback mic input with phantom power. The mixer provides a balanced XLR mono output, stereo XLR main outputs, 10 analog FlexMix outputs (six XLR, four 1/4" TRS), a pair of 1/4" monitor outputs, and a 1/4" headphone port. A digital AES/EBU output of the main mix is available via a rear-panel XLR socket. Additionally, unbalanced stereo RCA tape inputs and outputs are on hand to hookup a house music source and a separate stereo recorder. Record 32 channels and the main stereo mix to a Class 10 U3 SD card (available separately) via the onboard 34-track SD recorder, or stream 128 channels (64 in each direction) over USB 2.0 to and from your computer. You can even record redundantly to an SD card and a USB host computer at the same time. Take advantage of the StudioLive 32SC's built-in AVB networking capabilities for flexible system expansion, digital patching between networked devices, and more. - At a Glance
-
- 40 mixing channels
- 26 buses
- 16 recallable XMAX preamps via eight XLR inputs and eight XLR-1/4" combo inputs
- 17 touch-sensitive motorized faders
- Fixed input layer Fat Channel
- Dual-core FLEX DSP mix engine
- 286 processors in various form factors
- Rack-mountable, road-ready frame
- Powerful Mixing Features
-
- Expandable plug-in processing with ten vintage EQ and classic compression options on every input channel and bus
- Input delay, high-pass filter, gate, compressor, limiter, and parametric 4-band EQ per input channel
- High-pass filter, compressor, limiter, output delay, and parametric 6-band EQ per bus
- FLEX FX multi-effects processor with four slots to load legendary reverb emulations and delays with four dedicated effects buses
- 16 FlexMixes (aux mixes, subgroups, or matrix mixes) with six XLR and four 1/4" TRS mix output jacks
- Four static subgroup buses and four designated effects buses
- 24 DCAs to control groups of channels
- True virtual soundcheck simplifies mix configuration
- Enhanced scene management with scenes organized into projects, scene lock, and channel safe
- Password-protected user profiles enable restricting access to specific features
- Channel scribble strips and input metering
- Audio Networking
-
- Built-in AVB networking allows the creation of a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and the SW5E AVB switch (all available separately)
- Connect NSB-series stage boxes to add remote analog inputs and outputs wherever required
- Add EarMix 16M personal monitor mixers to give your musicians their own customizable 16-channel monitor mixes
- Network multiple StudioLive Series III mixers
- Route audio to and from any device on the AVB network, thanks to the flexibility of digital patching
- Multichannel Recording
-
- Record 34 tracks (32 channels plus a stereo mix) without a computer via the onboard SD-card recorder
- Stream up to 128 channels (64 in, 64 out) of audio to a Mac or Windows computer via USB 2.0
- Record to SD card or via USB or both simultaneously for safe, redundant live recording
- Record with PreSonus Capture, PreSonus Studio One, or any recording software that supports ASIO or Core Audio
- DAW Control
-
- Advanced Studio One control integration
- MCU emulation mode optimized for Logic Pro
- HUI emulation mode optimized for Pro Tools
- Complete Software Bundle
-
- UC Surface touch-control for Mac, Windows, and iPad
- Capture recording app with virtual soundcheck for Mac and Windows
- Studio One Artist DAW for recording, mixing, mastering, sharing, and collaborating on Mac and Windows
- QMix-UC personal monitor mix control for iPhone, iPod touch, and Android
UPC: 673454008153 In the Box PreSonus StudioLive 32SC Series III S 32-Channel Subcompact Digital Mixer/Recorder/Interface 3.3' USB Cable 3.3' Cat6 Ethernet Cable IEC Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus StudioLive 32SC Series III S 32-Channel Subcompact Digital Mixer Recorder Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus StudioLive 32SC Specs | Software System Requirements | Mac OS X 10.8.5 or Later (64-Bit)
Intel Core 2 Duo CPU (Intel Core i3 or Faster Recommended)
4 GB RAM (8 GB or More Recommended)
Internal or External 7200 rpm Storage Drive with 30 GB Free Disk Space
1366 x 768 Minimum Screen Resolution
Available USB 2.0 Port
Internet Connection
Windows 7 SP1 Plus Platform Update, Windows 8.1, or Windows 10 (All 32-/64-Bit)
Intel Core 2 Duo CPU (Intel Core i3 or Faster Recommended)
4 GB RAM (8 GB or More Recommended)
Internal or External 7200 rpm Storage Drive with 30 GB Free Disk Space
1366 x 768 Minimum Screen Resolution
Available USB 2.0 Port
Internet Connection
iOS 10 or Later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina Display, iPad (4th Generation), iPad mini, or iPad (3rd Generation)
Android 5.0 (Lollipop) or Later
Android Smartphone (QMix-UC)
Android Tablet (8") with 1024 x 768 Resolution (UC Surface) Minimum System Requirements for UC Surface, QMix-UC, and Studio One | | Channels | Mixing Channels: 40
Analog Input Channels: 16 (Expandable to 32) | | Buses | 26 | | Faders | 17 | | Mic/Line Inputs | 8 x 3-Pin XLR Female Mic Input
8 x XLR-1/4" TRS Mic/Line Input | | Talkback Input | 1 x 3-Pin XLR Female | | Main/Monitor Out | 2 x 3-Pin XLR Male Main Outputs
1 x 3-Pin XLR Male Mono Sum Output
2 x 1/4" TRS Monitor Outputs
1 x 1/4" TRS Headphone Output | | AUX Sends | 6 x 3-Pin XLR Male FlexMix Aux/Subgroup/Matrix Output
4 x 1/4" TRS FlexMix Aux/Subgroup/Matrix Output | | AUX Returns | 4 x 1/4" TRS (Two Stereo Pairs) | | Inserts | None | | Digital I/O Options | 1 x RJ45 for AVB I/O | | 2 Trk Master I/O | 2 x RCA Coaxial Tape Inputs (One Stereo Pair)
2 x RCA Coaxial Tape Outputs (One Stereo Pair) | | Stereo Digital I/O | 1 x 3-Pin XLR Stereo AES/EBU Output | | Word Clock I/O | None | | Host Connection | 1 x USB 2.0 Type-B | | Bluetooth Version | 4.1 | | MIDI Ports | None | | Control Ports | 1 x RJ45 GbE | | Lamp Socket | 1 x BNC (12 V) | | EQ Section | Channel: 4-Band Equalizer
Outputs: 6-Band Equalizer | | Solo/Mute | Solo and Mute per Channel | | Phantom Power | 48 VDC (
