User Manual for PreSonus SW5E 5-Port AVB Switch with PoE Click to enlarge the picture
Contents of the user manual for the PreSonus SW5E 5-Port AVB Switch with
- Product category: Accessories PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Accessories
 |
User manual for the PreSonus SW5E 5-Port AVB Switch with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

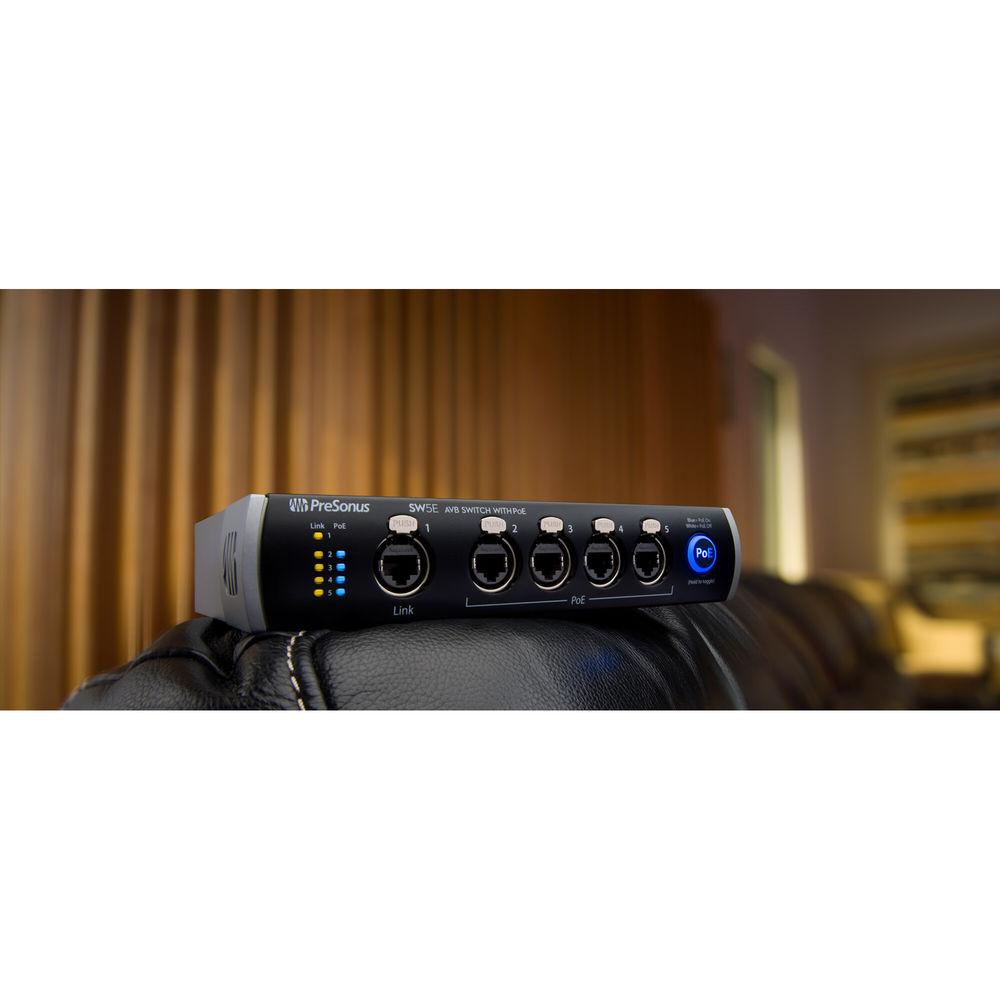

Product description The PreSonus SW5E is a rugged AVB network switch, designed to connect digital audio devices over long distances using CAT5e or CAT6 Ethernet cable. The device provides Power over Ethernet (PoE) and allows for the routing of audio anywhere on the network with extremely low latency. The AVB protocol provides a high-precision clock that significantly reduces harmonic distortion and phasing, ensuring the audio remains clean and clear.
PoE enables network cables to carry electrical power to compatible devices, delivering both network data, such as digital audio, and electrical power from a single cable. Four of the five ports on the SW5E provide PoE, with the fifth port being used for networking to additional switches to create a larger network. The heavy-duty metal enclosure is designed to withstand the rigors of on-the-road wear and tear and can be rack-mounted using an optional rack tray. The PreSonus SW5E ships with a standard IEC power cord. - Ports and Indicators

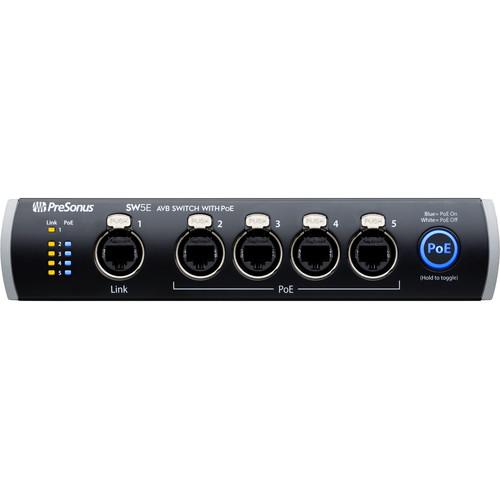

- 5 AVB Ethercon jacks
- 4 ports with PoE
- PoE power indicators
- Network link/activity indicators
Switches and Power- PoE power on/off

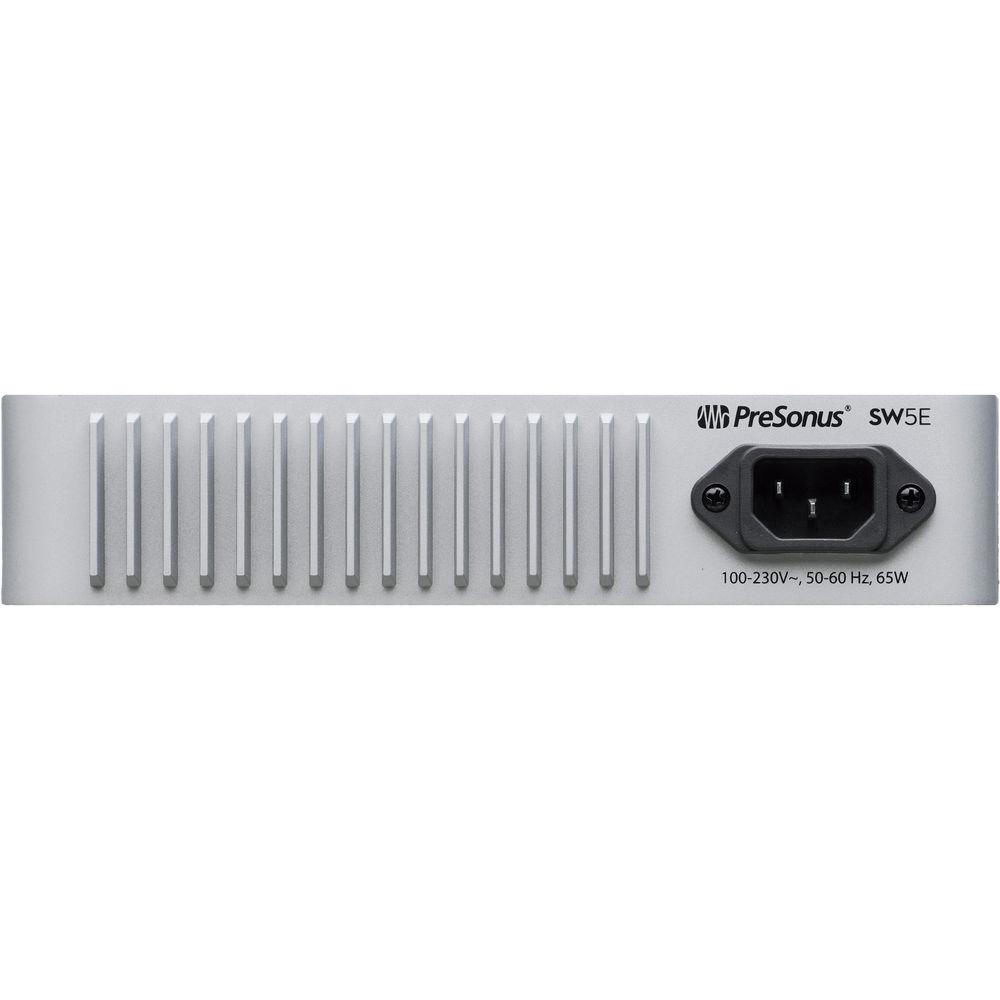

- Internal power supply with IEC connector
Physical- Rugged metal chassis
- Rack mountable (screws to a rack tray)
UPC: 673454006265 In the Box PreSonus SW5E 5-Port AVB Switch with PoE IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus SW5E 5-Port AVB Switch with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus SW5E Specs | Ports | AVB Ports: 5
PoE Ports: 4 | | PoE | PoE Supported: IEEE 802.3at-2009 (Type 1) | | Bandwidth | Operational Bandwidth: 10/100/1 Gb | | Front Panel | Activity LED: 5
PoE Active LED: 4 | | Power | 100 to 230 VAC, 50/60 Hz, 65 W | | Dimensions | 1.7 x 8.5 x 7" / 43.2 x 215.9 x 177.8 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 15.0 x 10.0 x 5.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
