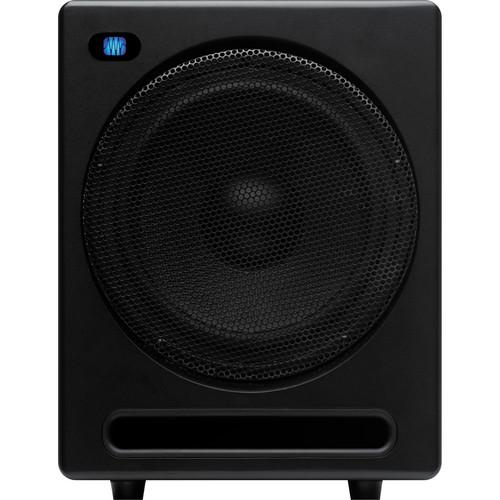

User Manual for PreSonus Temblor T10 Active 10" Studio Subwoofer Click to enlarge the picture
Contents of the user manual for the PreSonus Temblor T10 Active 10" Studio
- Product category: Studio Monitors PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Studio Monitors
|
User manual for the PreSonus Temblor T10 Active 10" Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|
Product description The Temblor T10 Active 10" Studio Subwoofer is designed for low frequency sound reinforcement while monitoring in a recording studio. The subwoofer utilizes a 10-inch composite low frequency driver with a frequency response of 20 to 200 Hz and a maximum SPL of 110 dB. The driver is housed within a heavily braced and reinforced MDF cabinet with a vinyl finish and ported bass reflex design. It is powered by a 250 Watt Class AB plate amplifier. To reduce vibration, the unit features internal dampening and rests on built-in feet. The subwoofer features a variable crossover frequency between 50 and 130 Hz, input gain controls from -30 dB to +6 dB, a 0° or 180° phase switch, and a ground lift switch.
You can connect to the subwoofer via a pair of balanced XLR inputs, a balanced pair of 1/4" TRS inputs, or an unbalanced pair of RCA inputs. The subwoofer also includes a balanced pair of XLR pass-through outputs, a balanced pair of 1/4" TRS pass-through outputs, and a balanced XLR sub output. The unit features a 120/240 VAC switchable power supply to accompany studio monitors in different regions. UPC: 673454002687 In the Box PreSonus Temblor T10 Active 10" Studio Subwoofer Power Cord Limited 1-Year Warranty User Manual PDF 2.6mbztqyxcccexxffwxbdcdqswdbyurfcbcbwrtur Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Temblor T10 Active 10" Studio Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus T10 Specs | Transducer | 10" Composite | | Power | 250 W | | Amplifier Type | Class AB | | Maximum SPL | 110 dB continuous | | Controls | Input gain: continuously variable from -30 to +6 dB
Low pass filter: continuously variable from 50 to 130 Hz
Phase switch: 0° and 180°
Ground lift switch | | Inputs | Left and right balanced XLR
Left and right balanced 1/4" TRS
Left and right unbalanced RCA | | Outputs | Left and right balanced XLR pass-through
Left and right balanced 1/4" TRS pass-through
Balanced XLR Sub out
1/4" Sub bypass | | Design | Front firing bass-reflex acoustic port
Internal dampening and heat sink | | Construction | Resonance-suppressing internal bracing
Internal dampening and heat sink | | Frequency Response | 20 to 200 Hz | | Crossover Frequency | Variable 50 to 130 Hz | | Voltage | 100 to 120 VAC at 50/60 Hz
220 to 240 VAC at 50-60 Hz | | Dimensions (H x W x D) | 16.14 x 13.19 x 16" (410 x 335 x 406 mm) | | Weight | 31.7 lb (14.4 kg) | | | | Package Weight | 46.45 lb | | Box Dimensions (LxWxH) | 21.7 x 20.3 x 17.1" |
