User Manual for PreSonus TubePre v2 - Tube Preamplifier DI Box Click to enlarge the picture
Contents of the user manual for the PreSonus TubePre v2 - Tube Preamplifier
- Product category: Microphone Preamps PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Microphone Preamps
 |
User manual for the PreSonus TubePre v2 - Tube Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

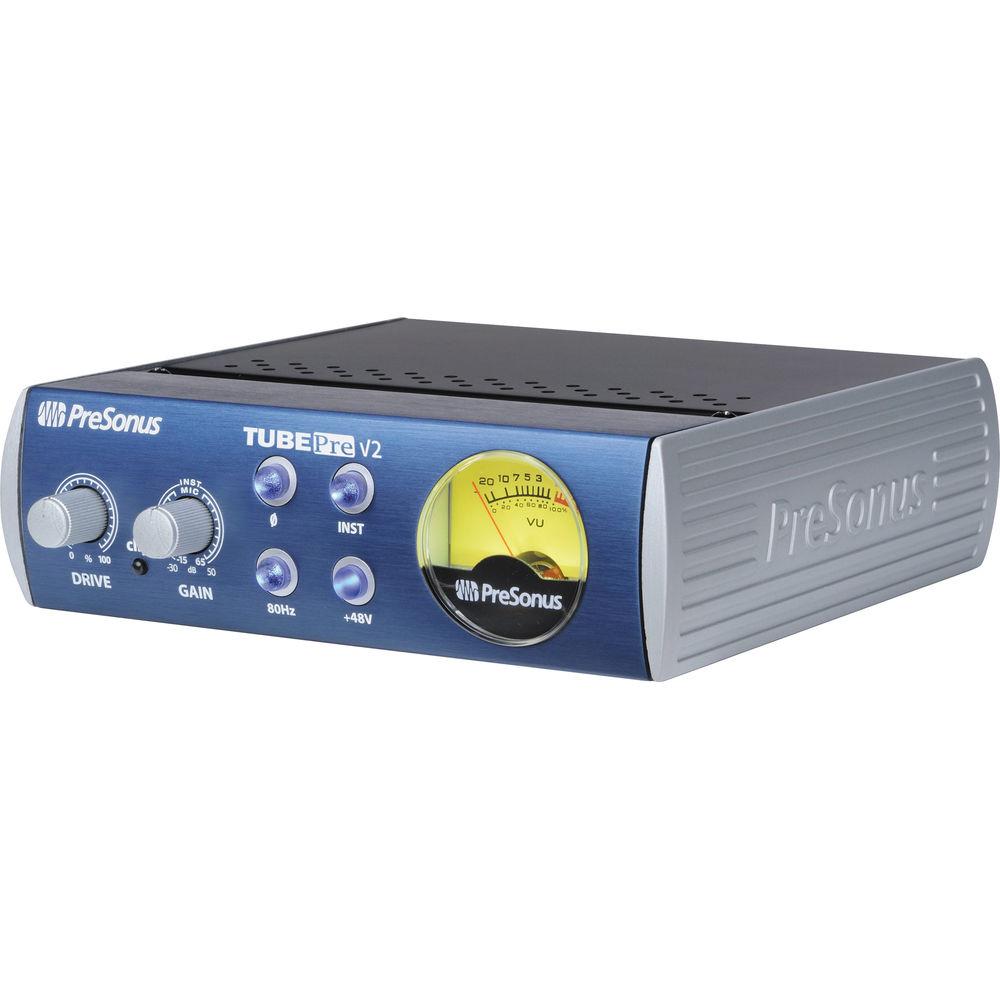

Product description The TubePre V2 from PreSonus is a fully professional tube preamp with a dual-servo (no capacitors) gain stage that allows for boosting the program signal to high levels without significantly increasing the background noise. Discrete components and high-voltage operation provide wide dynamic range without sacrificing detail. The preamp also serves as a direct box (DI) for guitars and basses and it's small enough to carry almost anywhere.

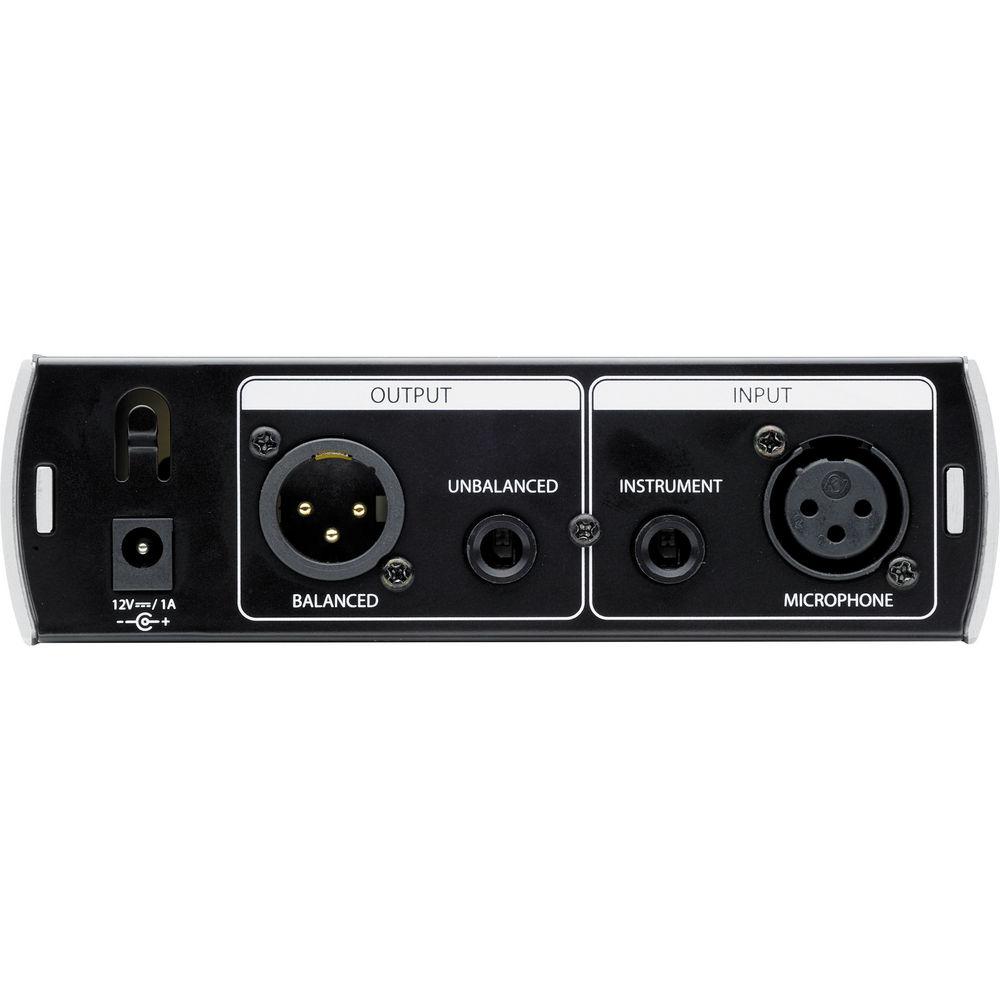

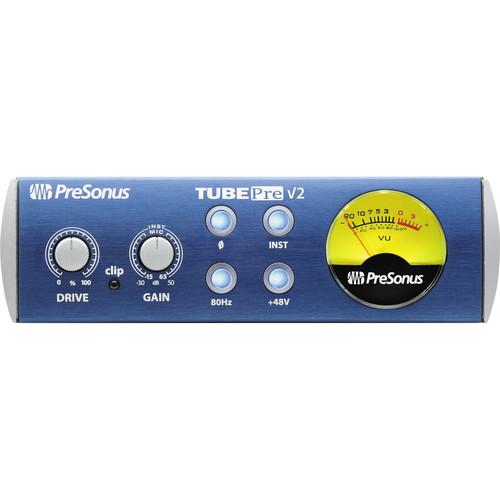

Housed in a rugged case, the unit features an XMAX Class A solid-state preamp followed in the signal path by a 12AX7 vacuum tube output stage. Also included are high-pass filter, phantom power for condenser microphones, a phase reverse switch, and a backlit VU meter. The rear panel contains an unbalanced 1/4" instrument and a balanced XLR microphone input, along with unbalanced 1/4" and balanced XLR line outputs. - Mono, tube-based microphone preamp with DI functionality
- XMAX Class-A preamp input stage
- 12AX7 dual-servo vacuum tube output stage
- Powered via an external (included) 12VDC, 1A power supply
UPC: 673454001659 In the Box PreSonus TubePre v2 - Tube Preamplifier/DI Box External Power Supply One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus TubePre v2 - Tube Preamplifier DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus TubePre V2 Specs | Number of Channels | Single | | Inputs | 1 x XLR Microphone
1 x 1/4" TS phone Instrument | | Input Impedance | Microphone
1.3kΩ
Instrument
1MΩ | | Gain Range | Microphone
-15dB to +65dB
Instrument
-30dB to +50dB | | Output | 1 x XLR
1 x 1/4" TS phone | | Output Impedance | 51Ω | | Maximum Output Level | +20dBu | | Phantom Power | 48V switchable | | Multi Function | No | | Frequency Response | Microphone
20Hz to 20kHz, -0.3dB (+4dBu, unity gain)
5Hz to 120kHz, -3.0dB (+4dBu, unity gain) | | Noise | Microphone EIN
-131dB, 20kHz BW, maximum gain, Rs=40Ω, A-weighted
-128dB, 20kHz BW, maximum gain, Rs=40Ω, unweighted | | THD + N | Microphone
0.01%, -10dBu, 1kHz, unity gain, 20kHz BW, unweighted | | Dynamic Range | Microphone
115dB, 1kHz, unity gain, 20kHz BW, A-weighted
107dB, 1kHz, unity gain, 20kHz BW, unweighted | | Power Requirements | +12VDC, 1000mA, center pin positive, via included external power supply
PSU Barrel Dimensions: 5.5mm outer dimension x 2.1mm inner dimension x 9.5mm length | | Dimensions (WxDxH) | 1/3U rack-mount chassis | | Weight | Not specified by manufacturer | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 12.5 x 7.7 x 4.3" |
