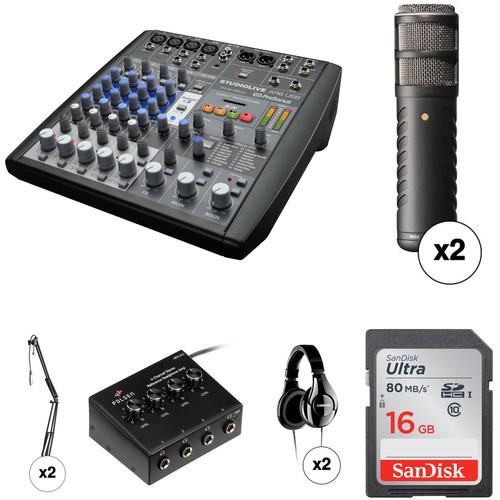

PreSonus Two-Person Radio and Podcast Kit

User Manual for PreSonus Two-Person Radio and Podcast Kit with StudioLive Mixer, Microphones, Boom Stands, and Headphones

• Product category: Digital Mixers PreSonus
• Brand: PreSonus
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for PreSonus Digital Mixers

Product description

• PreSonus StudioLive AR8 USB 8-Channel Hybrid Performance and Recording Mixer
  • PreSonus StudioLive AR Mixers: Rick's Top 3 Features
  The StudioLive AR8 USB from PreSonus is an 8-channel hybrid performance and recording mixer well suited for a variety of applications including mixing and recording live shows, studio productions, band rehearsals, podcasts, and more. The mixer is packed with analog connections and digital tools that are powerful, yet easy to learn and use. The mixer features Class-A preamps and 3-band EQ.

  The StudioLive AR8 offers recording with or without a computer. Multitrack record and fly in backing tracks with its 24-bit/96 kHz, USB2.0 audio interface or record and playback a stereo mix with the integrated SD digital recorder. Additionally, the mixer features a Super Channel, which allows you to connect four stereo analog and digital sources at once, enabling the mixer to be used with high-tech devices including smartphones and tablets for wireless Bluetooth streaming. The StudioLive AR8 ships with a power cord, USB cable, Studio One 3 Artist production software, and Capture recording software.
  Channels and Buses
  • • 8-channel mixer
    • 2 mono and 2 stereo channels, each with:
      • Level knob
      • Pan
      • Mute
      • PFL solo
    • 1 stereo Super Channel (Ch. 7/8)
    • 1 monitor buses with PFL solo
    • 1 stereo effects bus
    • 1 stereo effects return with:
      • 60 mm master fader
      • Dedicated monitor sends
      • Effects bypass footswitch jack
  Inputs and Outputs
  • • 2 instrument inputs
    • 8 balanced line inputs
    • 4 balanced mic inputs with:
      • Class-A microphone preamp
      • Global 48V phantom power
    • Stereo Super Channel with:
      • Stereo RCA inputs
      • 1/8-inch stereo input
      • Switchable SD/USB stereo playback
      • Bluetooth 4.1 input
    • L/R XLR main outputs
    • 1 balanced TRS monitor outputs
    • 1 balanced TRS effects output
    • L/R Control Room outputs with level control
    • Headphone output with level control
  Signal Processing
  • • High-pass filter on every channel
    • 3-band semi-parametric EQ (Channels 1-6)
    • Stereo effects processor with 16 presets
  Recording Options
  • • 8x4 24-bit/96 kHz, USB 2.0 audio recording interface
      • Record every channel plus the Main Mix
    • 2x2 SD recorder
      • Record main mix
      • Supports SD and SDHC formats up to 32 GB
  Integrated Software
  • • Capture recording software
    • Includes Studio Magic Plug-in Suite with Maag Audio EQ 2, SPL Attacker, Arturia instruments and more
    • Includes Studio One 3 Artist software (DAW)
  Power
  • • Internal power supply
    • Standard IEC power connector

  Physical
  • • Sturdy metal construction
    • Level knob
    • Rackmount kit included

  UPC: 673454004285
• 2 x Rode Procaster Broadcast Quality Dynamic Microphone
  • PreSonus StudioLive AR Mixers: Rick's Top 3 Features
  The Procaster Broadcast Quality Dynamic Microphone from Rode is designed for capturing speech in broadcast radio, voice-over recording, podcasts, and similar applications. It features a tight cardioid polar pattern and tailored frequency response that result in optimum speech reproduction without off-axis noise. The all metal contruction, internal pop-filter, and internal shockmount further minimize handling noise and contribute to the microphone's durability. The package includes a microphone stand mount and a zip pouch.
  • Tailored frequency response for maximum speech reproduction
  • Tight cardioid polar pattern minimizes off-axis noise
  • Internal shockmount and pop filter minimize handling noise and plosives
  • Durable all metal contruction
  UPC: 698813001118
• 2 x On-Stage MBS5000 Broadcast/Webcast Boom Arm with XLR Cable
  • PreSonus StudioLive AR Mixers: Rick's Top 3 Features
  The MBS5000 is a professional articulating mic boom that provides just the right counterbalance for popular broadcast microphones or other devices weighing up to 3.5 pounds. It can be used in studio environments and allows for quiet, easy, and repeatable positioning for on-air broadcast and webcast applications.With square-tubing construction, the boom arm offers strength and a long service life. The preinstalled 10' XLR cable provides a neat clean look and the standard 5/8"-27 threading, which mates with common mic clips, offers plenty of room for a shockmount. Additionally, the MBS5000 comes with two mounting options: one is a removable C-clamp for desktops and the other is a screw-in flange mount for permanent desktop or overhead installations. UPC: 659814125500
• Polsen HPA-4X2 4-Channel Stereo Reference Headphone Amplifier
  • PreSonus StudioLive AR Mixers: Rick's Top 3 Features
  The HPA-4X2 4-Channel Stereo Reference Headphone Amplifier from Polsen features a durable and compact design and can be used for a variety of professional and project applications including studio recording and stage monitoring, or any application that requires multiple headphone connections. Features include a wide frequency response of 20 Hz to 20 kHz with low distortion at high volumes, and no signal loss when all 4 headphone outputs are used simultaneously. Each of its four channels allows for independent volume control. Thanks to its Link feature, you can daisy chain multiple HPA-4X2s together to cater to your needed headphone count.

  The unit features a 1/4" stereo TRS input, and stereo RCA inputs. It mono button allows for mono signal compatibility. For its headphone outputs, it features four 1/4" TRS connectors. To assure compatibility with a variety of headphones, Polsen includes four 1/8" to 1/4" adapters as well as a stereo mini cable that, when used with one of the included adapters, allows you to connect a device with a 1/8" output.
  • Durable, compact, and easy to use
  • High output level for precise monitoring at high volume
  • Low noise circuitry
  • 1/4" TRS and RCA inputs
  • Four headphone jacks each with independent volume control
  • Wide frequency response (20 Hz to 20 kHz) for full-range stereo sound
  • Stereo/mono switch provides options for monitoring playback
  • Link feature to daisy chain additional headphone amplifiers
  • No loss of signal when all four headphones are connected
  • Included stereo mini cable for connecting devices with 1/8" output (use included 1/4" adapter)
  UPC: 847628577695
• 2 x Shure SRH240A Professional Around-Ear Stereo Headphones
  • PreSonus StudioLive AR Mixers: Rick's Top 3 Features
  The SRH240A Professional Around-Ear Stereo Headphones from Shure provide high-quality audio in a lightweight and comfortable design. Large 40mm neodymium dynamic drivers provide clear, detailed sound with a wide frequency response while the closed-back earcup design helps to block out ambient noise.

  The enhanced design features thick around-ear cushions and an adjustable headband that provide long-lasting comfort, allowing you to listen for hours without fatigue. The OFC cable provides plenty of slack and has a standard 3.5mm plug and a 1/4" adapter for wide compatibility with consumer and professional audio gear.
  • The lightweight and durable construction withstands the rigors of day-to-day use
  • Large 40mm neodymium dynamic drivers provide high-quality sound with a wide frequency response so you experience deep bass, clear mids, and crisp treble
  • The closed-back earcup design helps to block out ambient noise so you can focus on your music instead of your environment
  • The re-engineered ergonomic design features thick around-ear cushions and an adjustable headband for long-lasting comfort
  • The impedance, power handling, and sensitivity are calibrated for optimum performance with a variety of sound sources
  • The cable has a straight design that provides plenty of slack, while the oxygen-free copper construction provides a clear signal path
  • The standard 3.5mm stereo mini plug and threaded 1/4" adapter provide wide compatibility with consumer and professional audio devices
  UPC: 042406229210
• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)
  • PreSonus StudioLive AR Mixers: Rick's Top 3 Features
  Record Full HD 1080p video with this Class 10 compliant 16GB Ultra UHS-I SDHC Memory Card from SanDisk. With enhanced data read speeds of up to 80 MB/s this Ultra SDHC memory card is designed to suit the needs of compact and mid-range point and shoot cameras. You can also save and store a variety of files such as music, movies, documents and more. The writable label found on the card allows you to write down what is saved to the card while the built-in write protect switch helps to prevent accidental data loss. This card, as with most SanDisk cards, comes shock, temperature, x-ray, magnet, and waterproof to take your files with you nearly anywhere you go.
  • Class 10 performance for Full HD Video (1080p)
  • Read speeds up to 80 MB/s
  • Writable label for easy identification and organization
  • Engineered with UHS-I bus architecture
  • This SD memory card comes shock, temperature, x-ray, magnet, and waterproof proof
  UPC: 619659136451

• StudioLive AR8 USB 8-Channel Hybrid Performance and Recording Mixer xstbwtzusuxu
• Capture Recording Software
• Studio One 3 (Artist Production Software)
• Studio Magic Plug-In Suite (Download)
• Limited 1-Year Warranty

• 2 x Rode - Procaster Broadcast Quality Dynamic Microphone

• 2 x On-Stage - MBS5000 Broadcast/Webcast Boom Arm with XLR Cable

• Polsen - HPA-4X2 4-Channel Stereo Reference Headphone Amplifier

• 2 x Shure - SRH240A Professional Around-Ear Stereo Headphones

• SanDisk - 16GB Ultra UHS-I SDHC Memory Card (Class 10)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• PreSonus StudioLive AR8 USB 8-Channel Hybrid Performance and Recording Mixer

  Computer System Requirements	Mac Mac OS X 10.8.5 Intel Core 2 Duo processor (Intel Core i3 or faster recommended) Windows Windows 7 x64/x86 SP1 +platform update, 8.1 x64/x86, 10 x64/x86 Intel Core 2 Duo or AMD Athlon X2 processor (Intel Core i3 or AMD Athlon X4 or faster recommended) Mac and Windows Systems 4 GB RAM (8 GB or more recommended) 30 GB hard-drive space (Studio One) Internal or external 7200 RPM storage drive highly recommended Monitor with 1366x768 resolution (high-dpi monitor recommended)
  Microphone Preamplifier	Type: XLR Female, Class-A Maximum Input Level (Unity Gain): +22 dBu, ±1.0 dB Gain Control Range Mono Channels: 50 dB, ±1 dB (Unity to +50 dB) Stereo Channels: 40 dB, ± 1 dB (+5 to +45 dB Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 20 Hz to 40 kHz, +0.5/- 1.5 dB S/N Ratio to Outputs (+4 dBu): 94 dB THD+N (min. gain, A-wtd): < 0.01% Input Impedance: 1 kOhms EIN (+55 dB gain, 150 Ohms input, 20 Hz to 22 kHz, A-wtd): <128 dBu Common Mode Rejection Ratio (1 kHz, +55 dB gain): 65 dB Phantom Power: +48V, ±3V, Global Note: All Channel Inputs sum through Mic preamp
  Instrument Inputs	Type: ¼” / 6.35 mm TS female, unbalanced, Hi-Z Maximum Input Level (min. gain, 1 kHz @ 0.5% THD+N): +22 dBu, ±1.0 dB Gain Control Range: 50 dB, ±1 dB (Unity to +50 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 20 Hz to 40 kHz, +0.5/-1.5 dB Dynamic Range (min. gain, A-wtd): >105 dB Dynamic Range (mid. Gain, unwtd): >100 dB THD+N (1 kHz, -1 dBFS, A-wtd): <0.01% THD+N (1 kHz, -1 dBFS, unwtd): <0.01% Input Impedance: >1 MOhms
  Line Inputs	Type: ¼” / 6.35 mm TRS female, balanced Maximum Input Level (min. gain, 1 kHz@0.5% THD+N): +22 dBu, ±1.0 dB Gain Control Range Mono Channels: 50 dB, ±1 dB (-20 to +30 dB) Stereo Channel: 50 dB, ±1 dB (-15 to +25 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 10 Hz to 40 kHz, +0.5/-1.5 dB S/N Ratio to Analog Outputs (+4 dBu): 94 dB THD+N (1 kHz, -1 dBFS, A-wtd): <0.01% Input Impedance (Balanced): 10 kOhms
  Outputs	Type (Main Outputs): XLR male, impedance balanced Type (Control Room, Monitor, FX Outputs): ¼” / 6.35 mm TRS female, balanced Rated Output Level (Main Outputs): +24 dBu, ±1.0 dB Rated Outputs Level (Control Room, Monitor, FX Outputs): +18 dBu Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB Dynamic Range (A-wtd): >108 dB THD+N (Bandwidth 20 Hz to 20 kHz, -1 dBFS, unwtd): <0.01% Output Impedance: 100 Ohms
  Headphone Output	Type: ¼” / 6.35 mm TRS female, stereo, unbalanced Maximum Output Level: 150 mW/channel @ 60 ohms Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB Dynamic Range (A-wtd): >103 dB THD+N (Bandwidth 20 Hz to 20 kHz, -1 dBFS, unwtd): <0.01%
  Crosstalk	Input to Output (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd): -85 dBu Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd): -80 dBu
  Signal Level LEDs	Signal: -50 dBFS (pre-EQ) Clip: -3.0 dB before clip (pre- or post-EQ)
  Graphic Equalizer	Low Cut: 100 Hz, -18 dB/Octave High Shelving: ±15 dB @ 12 kHz Mid Peaking: ±15 dB @ 2.5 kHz Mid-Band Q: Fixed, 0.55 Low Shelving: ±15 dB @ 80 Hz
  Digital Audio	Host Interface: USB 2.0 ADC Dynamic Range (Component): 114 dB ADC Dynamic Range (Measured: A-wtd, 48 kHz): 105 dB DAC Dynamic Range (Component): 114 dB DAC Dynamic Range (Measured: A-wtd, 48 kHz): 105 dB Bit Depth: 24 bits Internally Supported Sample Rates: 44.1, 48, 88.2, 96 kHz Jitter: <80 ps RMS (20 Hz to 20 kHz) Jitter Attenuation: >60 dB (1 ns in => 1 ps out)
  Recorder	SD Recorder Supported Media Format: FAT16 formatted SD card, FAT32 formatted SDHC card Media Storage Capacity: SD card: 2 GB; SDHC card: 32 GB Recording File Format: Stereo WAV Playback File Formats: Stereo WAV, MP3 Sampling Rate (WAV): 44.1 kHz Bit Depth (Recorded WAV): 24-bits
  Dimensions (H x W x D)	3.7 x 12.0 x 12.0" / 94.0 x 304.8 x 304.8 mm
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	15.8 x 7.5 x 1.5"

• 2 x Rode Procaster Broadcast Quality Dynamic Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	75 Hz to 18 kHz
  Impedance	320 Ohms
  Sensitivity	-56 dB at 1 kHz

  Output Connectors	1 x 3-Pin XLR
  Length	8.43" / 214 mm
  Diameter	2.09" / 53 mm
  Weight	1.64 lb / 745 g

  Box Dimensions (LxWxH)	11.2 x 5.3 x 2.6"

• 2 x On-Stage MBS5000 Broadcast/Webcast Boom Arm with XLR Cable

  Horizontal Arm Length	19.5" (49.5 cm)
  Vertical Arm Length	19.5" (49.5 cm)
  Arm Reach	Total: 38" (96.5 cm)
  Material of Construction	Steel
  Grip Range	C-Clamp: 2" (5.08 cm)
  Dimensions	Not specified by manufacturer
  Weight Capacity	3.5 lb (1.6 kg)
  Color	Black powder-coat finish

  Box Dimensions (LxWxH)	22.7 x 6.9 x 2.8"

• Polsen HPA-4X2 4-Channel Stereo Reference Headphone Amplifier

  Channels	4
  Input Connections	1x 1/4" (6.3 mm) TRS master input 1x L,R RCA
  Output Connectors	4x 1/4" (6.3 mm) TRS headphone outputs
  Maximum Input Level	+14 dBV
  Maximum Output Level	22 dB, per channel
  Input Impedance	1 kΩ
  Output Impedance	Minimum 10 Ω, per channel
  Signal to Noise Ratio	>98 dB
  THD	<0.007%
  Power	12 V DC, 150 mA
  Dimensions (L x W x D)	3.00 x 3.75 x 1.20" (76 x 95 x 30 mm)
  Weight	10.4 oz (295 g)

  Box Dimensions (LxWxH)	8.25 x 4.85 x 2.8"

• 2 x Shure SRH240A Professional Around-Ear Stereo Headphones

  Driver Type	Dynamic
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	20 Hz to 20 kHz
  Sensitivity	107 dB
  Impedance	38 Ohms
  Maximum Power Handling	500 mW

  Audio Connector	1/8" (3.5 mm) TRS
  Connector Plating	Nickel

  Cable Length	6.6' / m

  Weight	10.1 oz / 238 g

  Box Dimensions (LxWxH)	9.5 x 8.7 x 4.6"

• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)

  Card Type	SDHC
  Storage Capacity	16 GB
  Bus Type	UHS-I
  Speed Class	10
  Bus Interface Speed	UHS Class I
  Data Transfer	Read Speed: 80 MB/s Maximum (Burst) Write Speed: 10 MB/s Minimum
  Durability	Magnet-Proof, Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Built-in Write-Protect Switch	Yes

  Box Dimensions (LxWxH)	4.3 x 4.0 x 0.1"
