Product description - PreSonus ULT Active Loudspeakers by WorxAudio

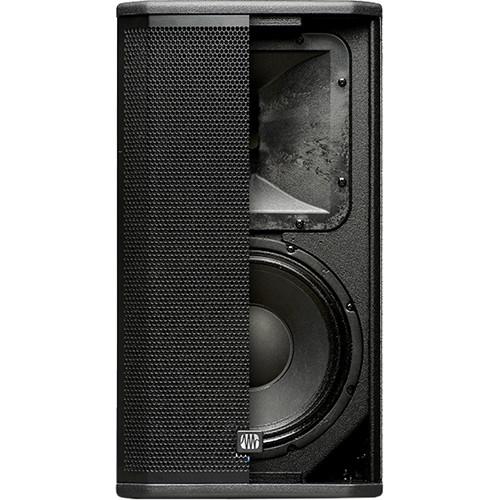

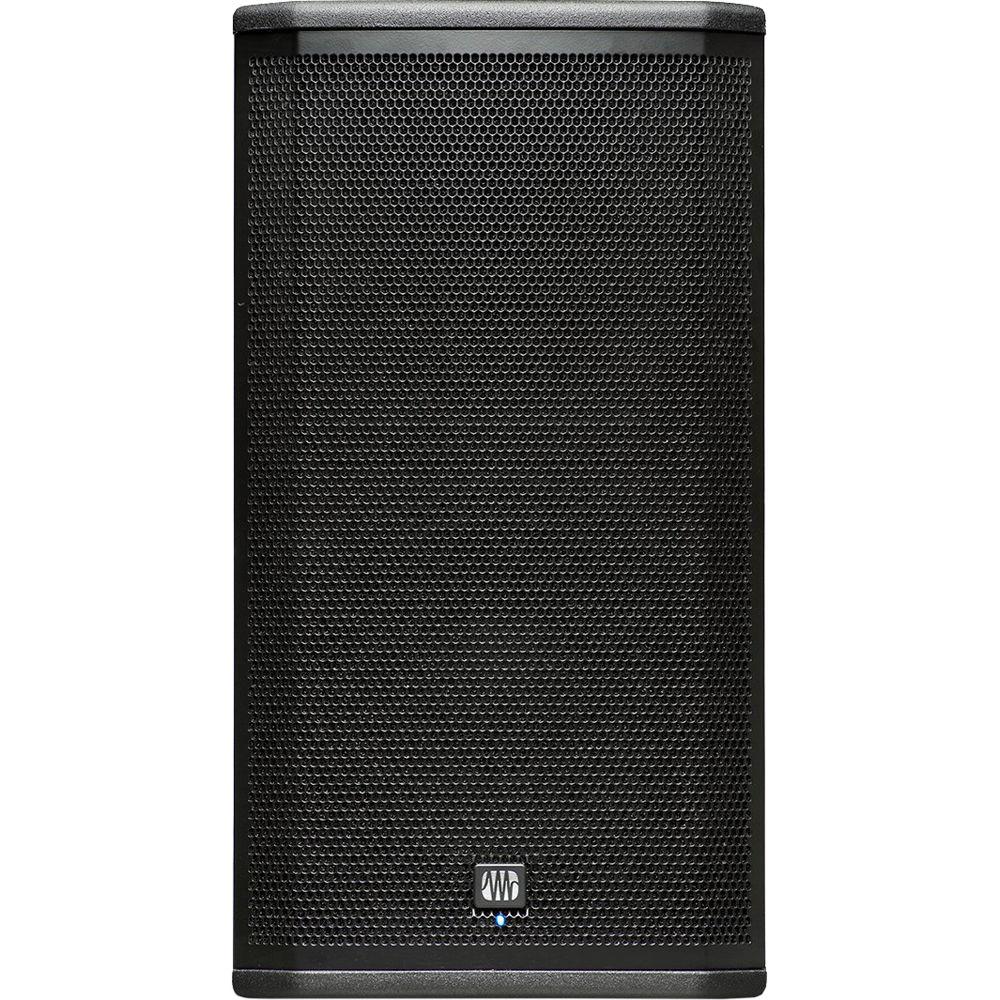

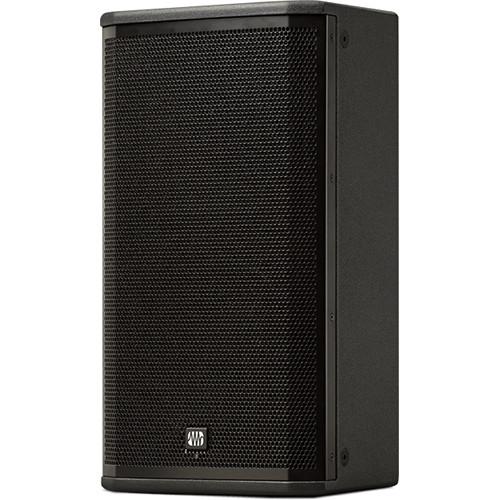

The ULT10 from PreSonus is a 2-way 10" active loudspeaker with a wide 110° horizontal and a 50° vertical dispersion horn for delivering even coverage and an ultra-long throw. It features 1300W of Class-D power (peak) and can be used as monitors in applications for sound reinforcement, PA systems, DJ setups, and more.Featuring a custom low-frequency driver with a 2.5" voice coil and a 1.75" voice coil exit horn, the speaker is built with an onboard mixer with two combo XLR-1/4" input jacks and an XMAX preamp. The rotatable waveguide-Pivot X110 horn delivers precise coverage. Plus, there are 3 operation-mode presets for the following: FOH (Front of House); for normal live setups, DJ; for music playback, and Mon; when using it as a wedge monitor.Finally, the ULT10 2-way loudspeaker is built with top and side ergonomic handles, and the Chemline finished eucalyptus enclosure is designed with a tour-grade, 16-gauge steel grille. Additionally, a 35mm pole socket with a 6° downward tilt and integrated M10 rigging points for suspended installation are also included. - Main Components
-
- 10-inch custom woofer with 2.5-inch voice coil
- WorxAudio-designed waveguide Pivot X110 horn for precise coverage
- Ultra-wide 110˿ horizontal dispersion
- Tight 50˿ vertical dispersion for longer throw
- 1300W Class D power (150x500W continuous)
- XMAX preamp

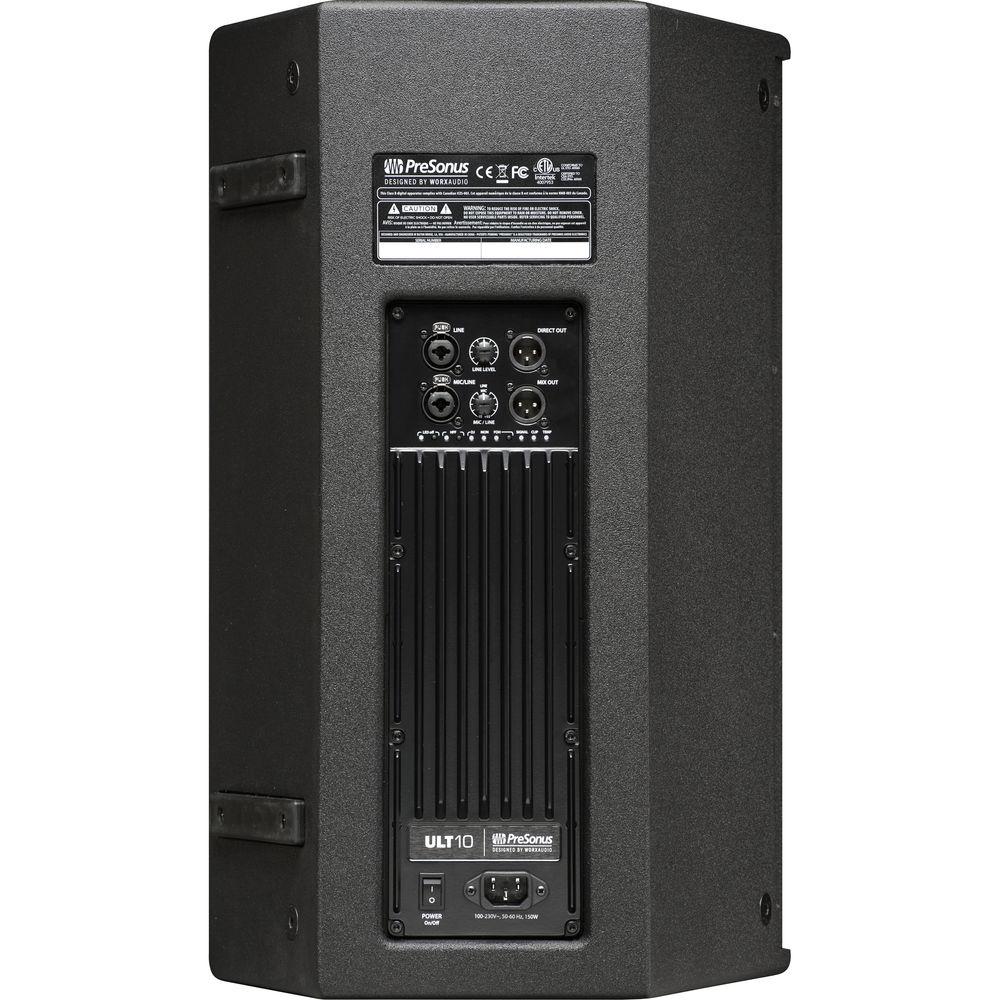

- Onboard mixer with two combo XLR-1/4" inputs
- Direct line-input channel output
- Single summed balanced output
- Controls
-
- Mic/Line Level
- Line/Level
- 3 operation mode presets
- FOH: Normal live front of house
- DJ: Music playback
- Mon: Stage wedge floor monitor
- HPF On/Off
- Front LED On/Off
- Convenience Features
-

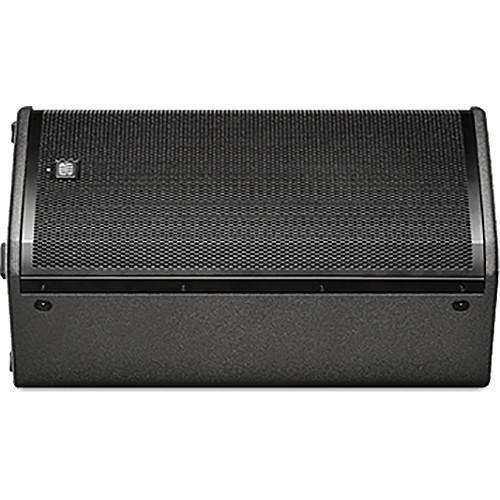

- Multi-angle enclosure for mains or monitor wedge application
- Defeatable front-panel LED
- Rugged, texture-painted eucalyptus plywood enclosures
- Tour-grade 16-gauge steel grille
- Comfortable ergonomic handles
- 35mm pole sockets with 6° downward tilt
- Integrated M10 rigging points for suspended horizontal and vertical installation
- Locking IEC connection
UPC: 673454005626 In the Box PreSonus ULT10 - Ultra-Long Throw 2-Way Active Loudspeaker Locking IEC Power Cord Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus ULT10 - Ultra-Long Throw 2-Way Active Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus ULT10 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1300 W Peak
650 W RMS | | Amplifier Power Rating | LF:
1000 W Peak
500 W RMS
HF:
300 W Peak
150 W RMS | | | | HF Voice Coil | 1.75" / 4.44 cm | | LF Driver | 1 x 10" / 25.4 cm Woofer | | LF Voice Coil | 2.5" / 6.35 cm | | | | Frequency Range | 20 Hz to 20 kHz | | Frequency Response | 60 Hz to 18 kHz -3 dB
55 Hz to 20 kHz -10 dB | | Maximum SPL | 130 dB | | Coverage Angle | 110° H x 50° V at -6 dB | | Max Input Level | +22 dBu | | I/O Impedance | Line Input:
10 kOhms
Mic Input:
1 kOhms | | THD | <0.05% | | Protections | DC, Overcurrent, Overvoltage, Thermal, Undervoltage | | | | Audio I/O | 2 x Combo XLR / 1/4"
1 x Combo XLR / 1/4" Line/Mic Input
1 x Combo XLR / 1/4" Line Input
2 x XLR Male Output | | | | Crossover | 1.6 kHz | | Filters | High-Pass:
100 Hz, 24 dB/Octave Linkwitz-Riley | | Dynamic Processing | HF Limiter, Limiter | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | AC Input Power | 100 to 230 VAC, 50 / 60 Hz | | Power Consumption | 150 W (1/8 Power) | | | | Mounting | 1 x 1.4" / 35 mm Pole Socket (Dual Angle)
12 x M10 | | Handles | 1 x Top
1 x Side | | Cooling | Convection | | Construction Material | Metal Grille, Plywood | | Dimensions | 22.0 x 13.2 x 11.9" / 558.8 x 335.3 x 302.3 mm | | Weight | 44 lb / 20 kg |
