User Manual for PreSonus ULT12 2-Way 12" Active Loudspeaker Click to enlarge the picture
Contents of the user manual for the PreSonus ULT12 2-Way 12" Active Loudspeaker
- Product category: PA Speakers PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus PA Speakers
 |
User manual for the PreSonus ULT12 2-Way 12" Active Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

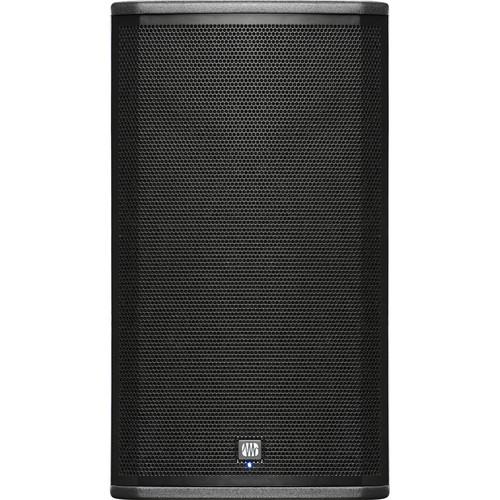

Product description - PreSonus ULT Active Loudspeakers by WorxAudio

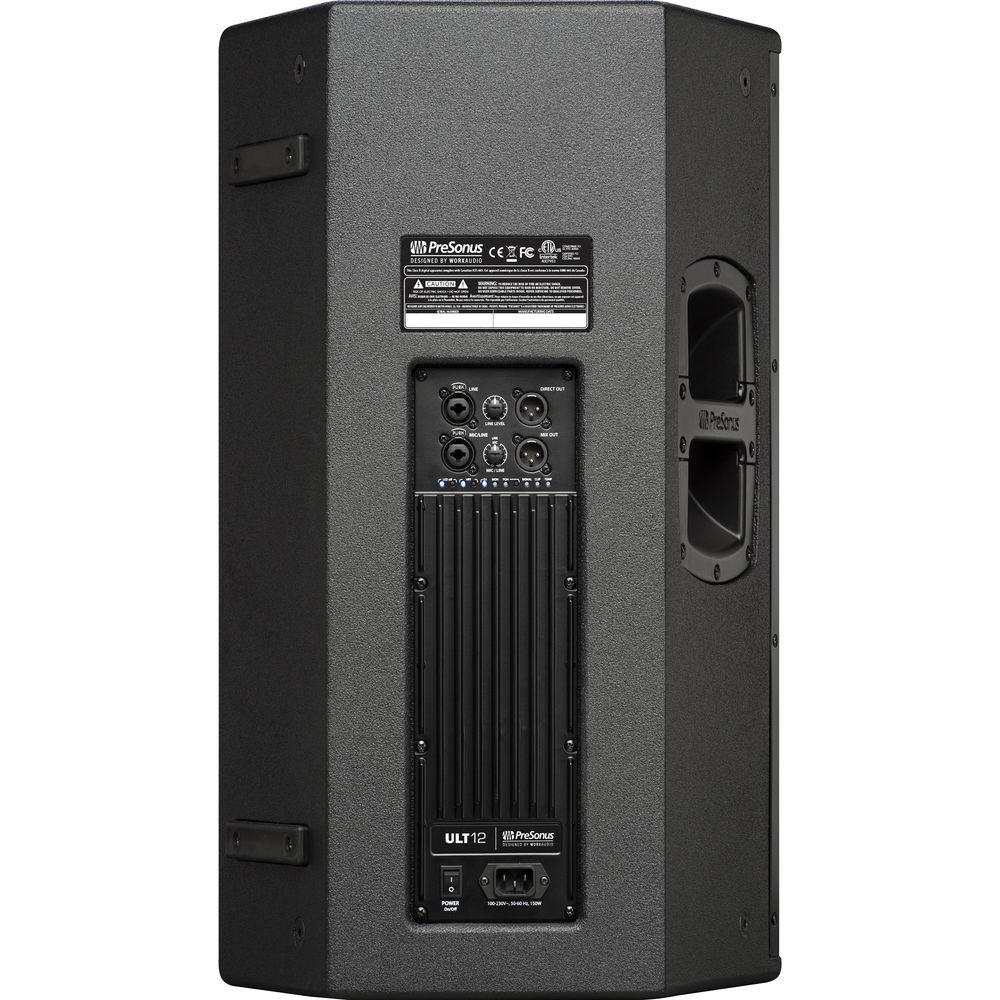

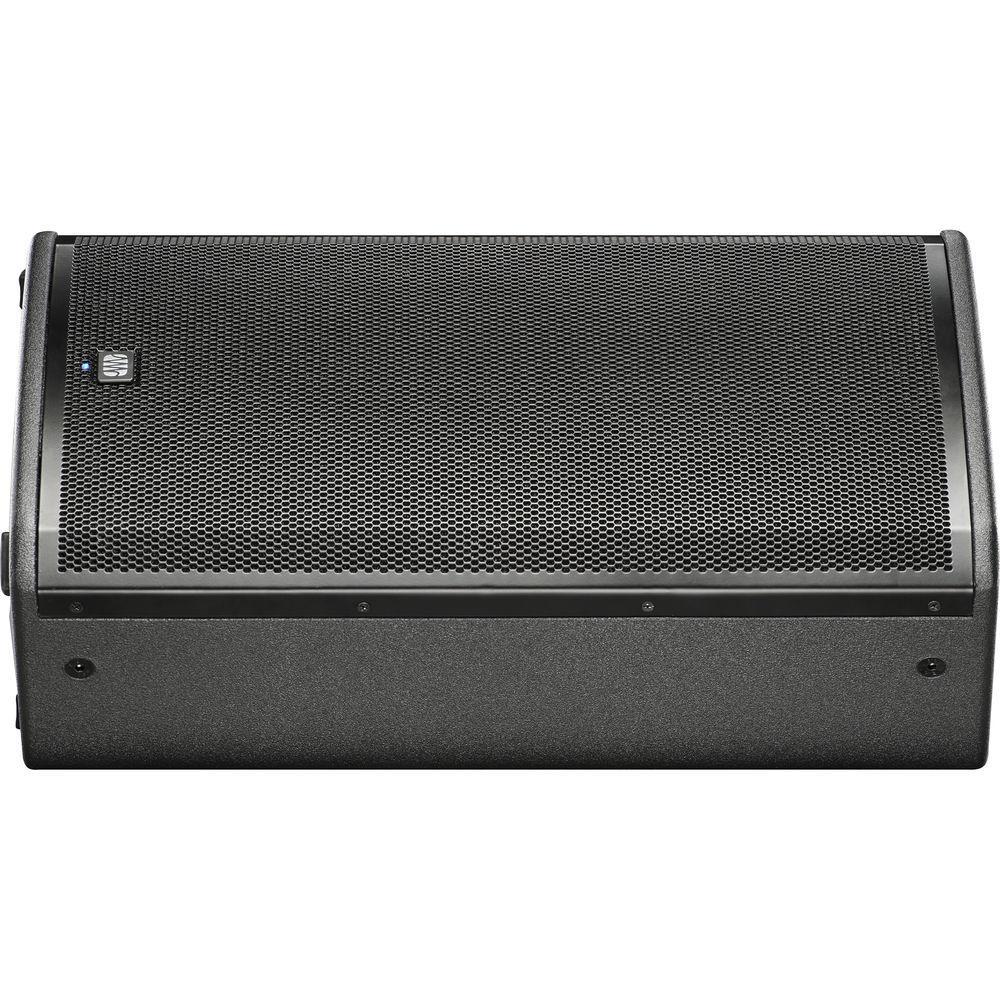

The ULT12 from PreSonus is a 2-way 12" active loudspeaker with a wide 110° horizontal and a 50° vertical dispersion horn for delivering even coverage and an ultra-long throw. It features 1300W of Class-D power (peak) and can be used as monitors in applications for sound reinforcement, PA systems, DJ setups, and more.Featuring a custom low-frequency driver with a 2.5" voice coil and a 1.75" voice-coil exit horn, the speaker is built with an onboard mixer with two combo XLR-1/4" input jacks and an XMAX preamp. The rotatable waveguide-Pivot X110 horn delivers precise coverage. Plus, there are 3 operation-mode presets for the following: FOH (Front of House); for normal live setups, DJ; for music playback, and Mon; when using it as a wedge monitor.Finally, the ULT12 2-way loudspeaker is built with top and side ergonomic handles, and the texture-painted birch enclosure is designed with a tour-grade, 16-gauge steel grille. Additionally, a 35mm pole socket with a 6° downward tilt and integrated M10 rigging points for suspended installation are also included. - 12-inch custom low-frequency driver with 2.5-inch voice coil
- Onboard mixer with two combo XLR-1/4" inputs
- Direct line-input channel output
- Defeatable front-panel LED
- Rugged, texture-painted birch enclosures with tour-grade 16-gauge steel grille
- Top and side ergonomic handles
In the Box PreSonus ULT12 2-Way 12" Active Loudspeaker Limited 6-Year Warranty User Manual PDF 4.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus ULT12 2-Way 12" Active Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus ULT12 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1300 W Peak | | | | HF Driver | 1 x Compression Driver with 1" / 2.54 cm Throat | | HF Voice Coil | 1.75" / 4.44 cm | | LF Driver | 1 x 12" / 30.5 cm Woofer | | LF Voice Coil | 2.5" / 6.35 cm | | | | Frequency Range | 55 Hz to 18 kHz ±3 dB | | Maximum SPL | 135 dB | | Coverage Angle | 110° H x 50° V | | | | Mounting | 1 x Pole Socket (Dual Angle)
12 x M10 | | Dimensions | 25.3 x 14.0 x 13.9" / 64.3 x 35.6 x 35.3 cm | | Weight | 52 lb / 23.6 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
