PRG ReNEW Tungsten LED Retrofit Assembly

Search your instruction manual in PDF to download

User Manual for PRG ReNEW Tungsten LED Retrofit Assembly with Bare Ends Power Cord for ETC

Click to enlarge the picture
PRG ReNEW Tungsten LED Retrofit Assembly with Bare Ends Power Cord for ETC Contents of the user manual for the PRG ReNEW Tungsten LED Retrofit Assembly
  • Product category: Misc. Parts PRG
  • Brand: PRG
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for PRG Misc. Parts

PRG ReNEW Tungsten LED Retrofit Assembly with Bare Ends Power Cord for ETC PRG ReNEW Tungsten LED Retrofit Assembly with Bare Ends Power Cord for ETC
User manual for the PRG ReNEW Tungsten LED Retrofit Assembly contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any PRG product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official PRG user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a PRG product will considerably shorten its lifespan!



Product description

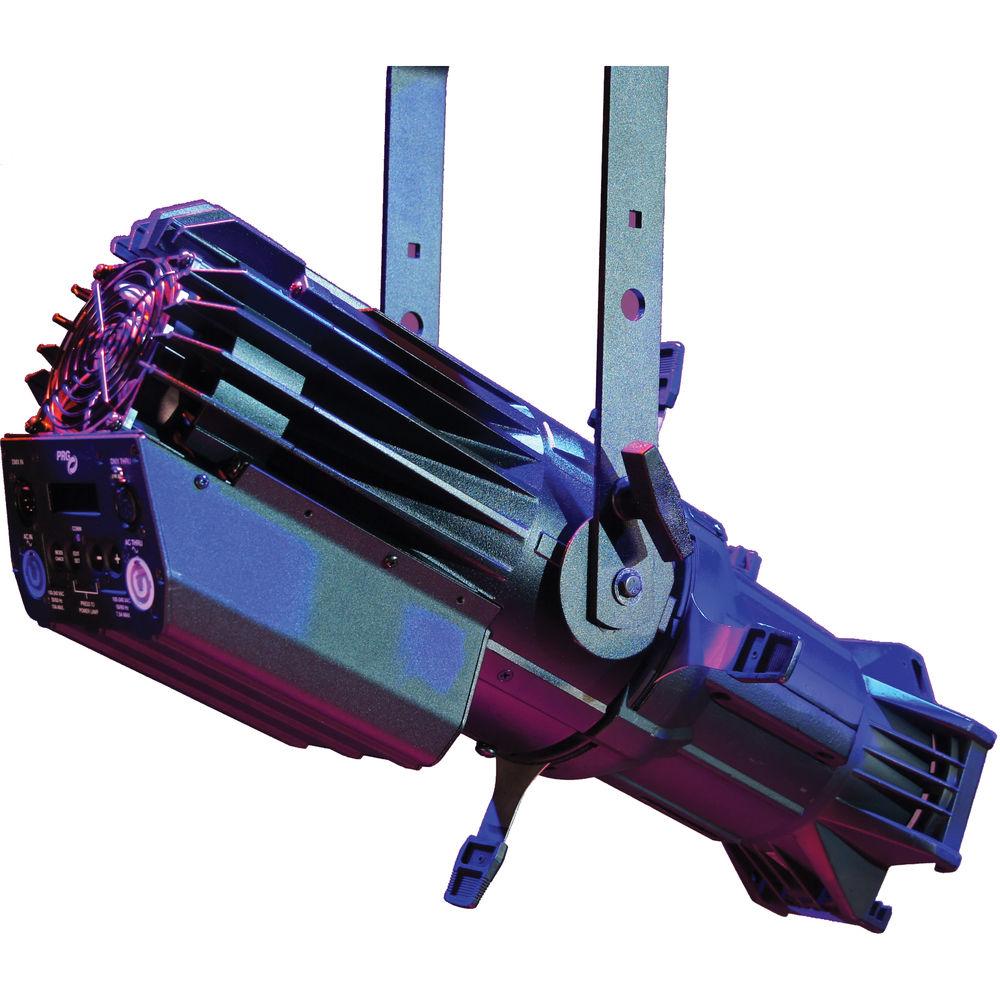

The 3,000K ReNEW Tungsten LED Retrofit Assembly with Bare Ends Power Cord from PRG is an LED light engine designed to work in conjunction with the lens tube and shutter assemblies of the ETC Source ellipsoidal. Exchanging the tungsten light source of the Source Four with the tungsten LED source of the ReNEW Assembly reduces energy consumption and HVAC costs while producing lumen output that exceeds a 575W HPL lamp. The ReNEW light engine draws 190W at full output and just 3.1W during standby. The assembly is designed around a chip-on-board (COB) LED light source array paired with a specially designed reflector and lens that provides optimal illuminance distribution through the Source Four lens. The COB array is designed for easy future upgrading as improved LEDs become available. The Source Four reflector and lamp assembly can be replaced in less than a minute with the ReNEW Assembly which is compatible with both ETC standard and Enhanced Definition Lens Tubes (EDLT) and all Source Four accessories. The fixture can be operated with 1, 2, or 3 channels of DMX control, or operated in user-selectable stand-alone mode for simple installations or where DMX is not available. A DMX signal can be connected and passed through the unit via optically isolated male and female flush-mount 5-Pin XLR connections. The ReNEW Assembly offers 90-240 VAC 50/60 Hz operation via its Neutrik powerCON connection while up to four 4 units may be linked using the thru connector. An additional power connection is available for a 9 VDC battery to operate the control panel for quick setup or for shop preparation without need to connect primary full power to the unit. In the Box PRG ReNEW Tungsten LED Retrofit Assembly with Bare Ends Power Cord for ETC
  • Power Cord
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the PRG ReNEW Tungsten LED Retrofit Assembly with Bare Ends Power Cord for ETC in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    PRG RHA-RN1.1130.00 Specs

    Light Source LED Chip-on-Board
    Reflector Coated aluminum
    Dimming 8-bit or 16-bit, 0 - 100%
    Color Temperature 3,000K
    Effects Strobe and Effects available on Effects channel

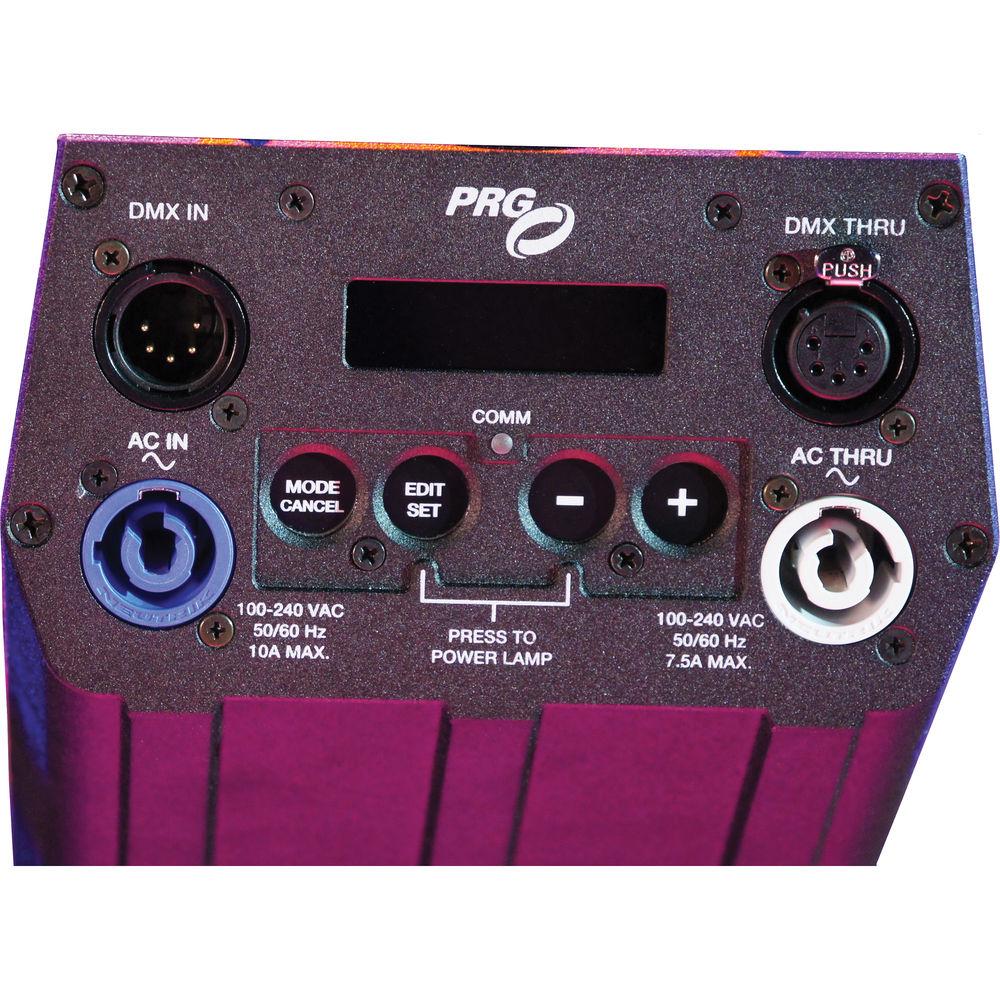

    Control Standalone: onboard local setting of light intensity or effects
    DMX channels 1, 2, or 3
    5-Pin XLR DMX In and Thru
    Power 90-240 VAC 50/60 Hz universal Neutrik powerCON in and thru
    9.0 V battery connector
    Power Consumption Full power: 190 W
    Standby: 3.1 W
    Power Linking Up to 4 units using AC power thru connector
    Cooling Fan
    Approvals and Certifications ETL and CETL Listed, CE marked
    Dimensions 13.8 x 10 x 9.0" (350.5 x 254 x 228.6 mm) including yoke
    Weight 12.5 lb (5.66 kg)
