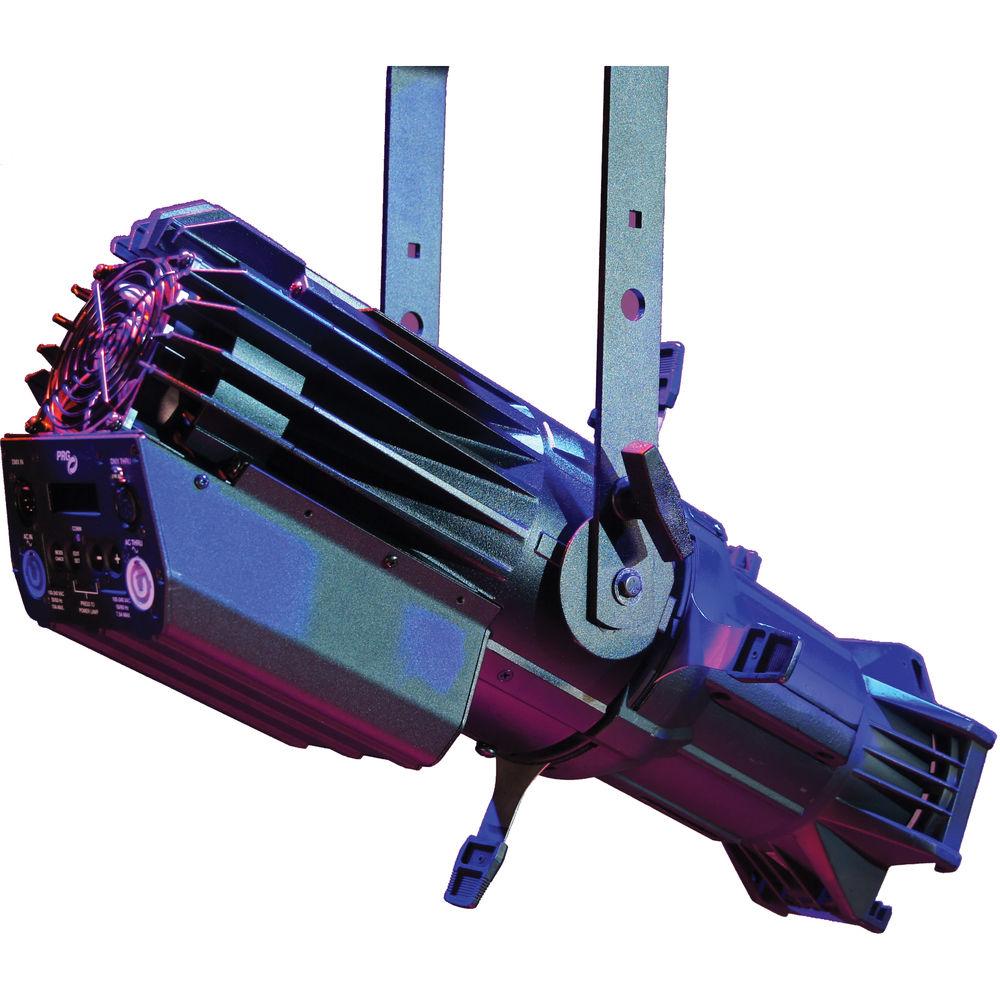

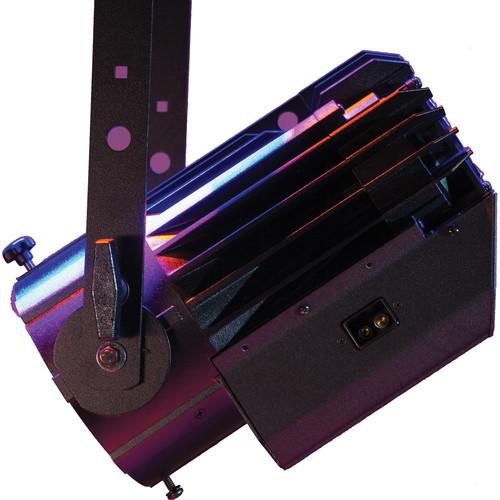

Product description The 3,000K ReNEW Tungsten LED Retrofit Assembly with L6-20P Power Cord from PRG is an LED light engine designed to work in conjunction with the lens tube and shutter assemblies of the ETC Source ellipsoidal. Exchanging the tungsten light source of the Source Four with the tungsten LED source of the ReNEW Assembly reduces energy consumption and HVAC costs while producing lumen output that exceeds a 575W HPL lamp. The ReNEW light engine draws 190W at full output and just 3.1W during standby. The assembly is designed around a chip-on-board (COB) LED light source array paired with a specially designed reflector and lens that provides optimal illuminance distribution through the Source Four lens. The COB array is designed for easy future upgrading as improved LEDs become available. The Source Four reflector and lamp assembly can be replaced in less than a minute with the ReNEW Assembly which is compatible with both ETC standard and Enhanced Definition Lens Tubes (EDLT) and all Source Four accessories. The fixture can be operated with 1, 2, or 3 channels of DMX control, or operated in user-selectable stand-alone mode for simple installations or where DMX is not available. A DMX signal can be connected and passed through the unit via optically isolated male and female flush-mount 5-Pin XLR connections. The ReNEW Assembly offers 90-240 VAC 50/60 Hz operation via its Neutrik powerCON connection while up to four 4 units may be linked using the thru connector. An additional power connection is available for a 9 VDC battery to operate the control panel for quick setup or for shop preparation without need to connect primary full power to the unit. In the Box PRG ReNEW Tungsten LED Retrofit Assembly with L6-20P Power Cord for ETC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PRG ReNEW Tungsten LED Retrofit Assembly with L6-20P Power Cord for ETC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

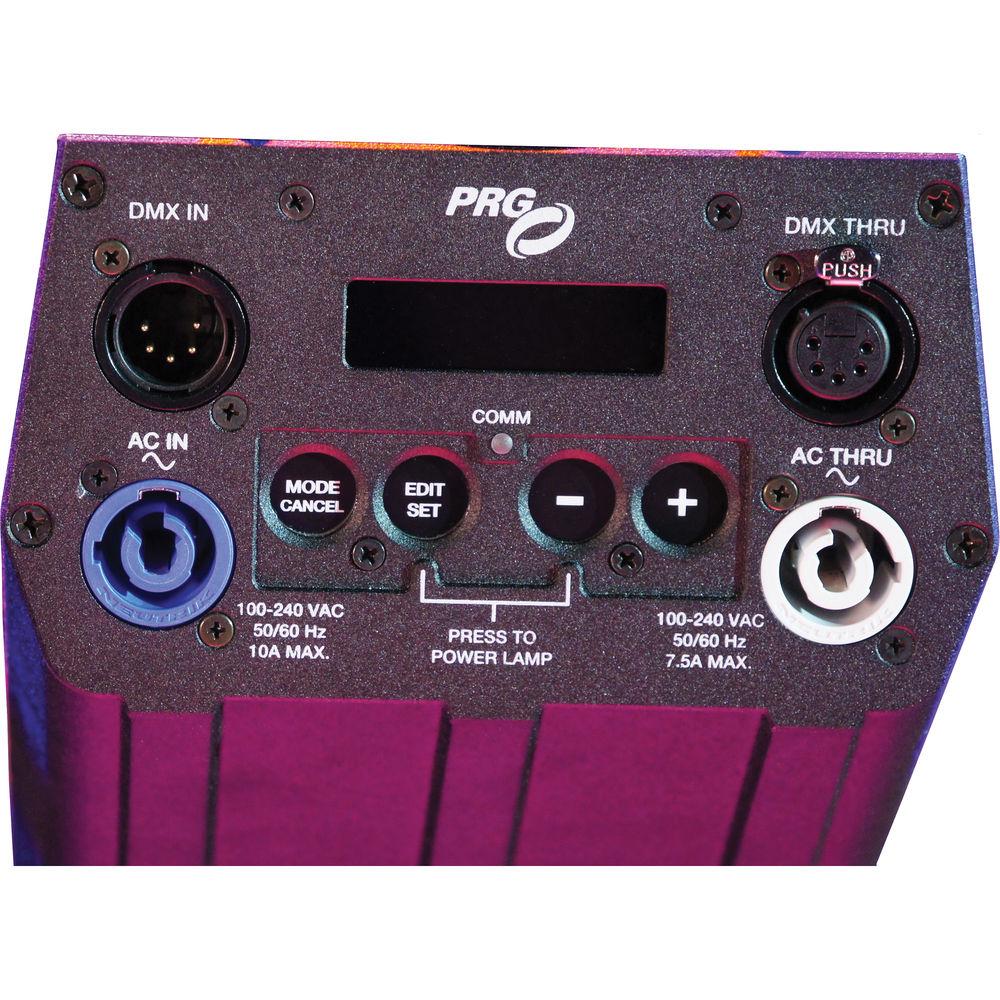

Technical parametersPRG RHA-RN1.1130.02 Specs | Light Source | LED Chip-on-Board | | Reflector | Coated aluminum | | Dimming | 8-bit or 16-bit, 0 - 100% | | Color Temperature | 3,000K | | Effects | Strobe and Effects available on Effects channel | | Control | Standalone: onboard local setting of light intensity or effects
DMX channels 1, 2, or 3
5-Pin XLR DMX In and Thru | | Power | 90-240 VAC 50/60 Hz universal Neutrik powerCON in and thru
9.0 V battery connector | | Power Consumption | Full power: 190 W
Standby: 3.1 W | | Power Linking | Up to 4 units using AC power thru connector | | Cooling | Fan | | Approvals and Certifications | ETL and CETL Listed, CE marked | | Dimensions | 13.8 x 10 x 9.0" (350.5 x 254 x 228.6 mm) including yoke | | Weight | 12.5 lb (5.66 kg) |
