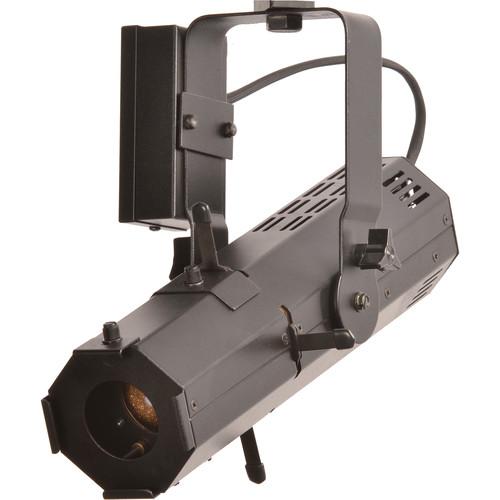

User Manual for PRG RH A 25-50 Degree Zoom Ellipsoidal LED Projector Click to enlarge the picture
Contents of the user manual for the PRG RH A 25-50 Degree Zoom
- Product category: Stage & Studio PRG
- Brand: PRG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PRG Stage & Studio
|
User manual for the PRG RH A 25-50 Degree Zoom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PRG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PRG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PRG product will considerably shorten its lifespan!
|
Product description The black RH+A 25-50 Degree Zoom Ellipsoidal LED Projector from PRG is a focusable white light source with a small lightweight, form factor that outputs 2,400 lumens and is meant for entertainment and architectural applications. Fully dimmable via most ELV and triac type dimmers, the luminaire features a low 24W power draw, making it ideal in multi-light configurations that benefit from its low generated heat. The full-featured fixture has a multi-voltage power supply for worldwide use and ships with a filter frame, safety cable, 4 framing shutters and a 6' power cord with a molded Edison connector. Optional accessories include a snoot and an E-size gobo pattern holder. - Features
-
- High power 24W 3,000K white light LED emitter
- Lumen output: 2,400
- Focal range: 25 - 50°
- LED lifetime rated at 50,000 hours
- Accepts glass or steel gobo patterns - 37.5 mm OD, 28 mm image area
- Multi-voltage power supply: 120-277V AC, 50/60HZ
- Safety cable and filter frame included
- Optional track and non-track and canopy versions
- Optional accessories include pattern holder, snoot and donut
- Photometrics
- Beam angle: 25°, Center Peak in fc
60 fc @ 10' (3.0 m) with a beam diameter of 4.5' (1.37 m)
26.7 fc @ 15' (4.57 m) with a beam diameter of 6.75' (2.0 m)
15 fc @ 20' (6.0 m) with a beam diameter of 9.0' (2.74 m)
9.6 fc @ 25' (7.62 m) with a beam diameter of 11.25' (3.42 m)
Beam angle: 55°, Center Peak in fc
30 fc @ 10' (3.0 m) with a beam diameter of 7.75' (2.36 m)
13.3 fc @ 15' (4.57 m) with a beam diameter of 11.6' (3.53 m)
7.5 fc @ 20' (6.0 m) with a beam diameter of 15.5' (4.72m)
4.8 fc @ 25' (7.62 m) with a beam diameter of 19.37' (5.9 m) In the Box PRG RH+A 25-50 Degree Zoom Ellipsoidal LED Projector (Black) Power Cable: 6' 4 x Framing Shutters Filter Frame Safety Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PRG RH A 25-50 Degree Zoom Ellipsoidal LED Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPRG RH+A Specs | Light Source | 3,000K warm white LED array | | Rating | 2,400 lumens | | Beam Angle | 25 to 50° | | Dimming | Yes, at 120V only | | Mounting | 1/2" (12.7 mm) Through hole | | Yoke | Yes | | Connectors | Power input x1 | | Power Requirements | 120-277V AC, 50/60HZ | | Power Consumption | 24W max. | | Cable | 6.0' (1.8 m) With molded Edison (North American) connector | | Approvals and Compliance | ETL, CETL, and CE listed | | Dimensions | 12.96 x 6.31 x 9.36" (32.9 x 16 x 23.7 cm) including yoke and shutters
Front accessory size: 3.18" (8.0 cm) square or diagonal
Accepts E size gobos with 1.47" 37.5 mm OD and 1.1" (28 mm) image area. | | Weight | Not specified by manufacturer | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 20.4 x 8.4 x 6.7" |
