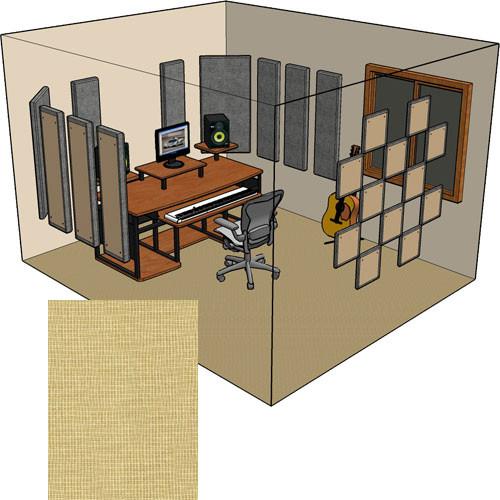

Product description The London 12 Room Kit from Primacoustic has been designed to address acoustic room problems such as primary reflections, flutter echo, standing waves, and excessive bass. It is intended for rooms up to 150 ft² (13.9 m²), or can be combined with other products to treat larger spaces. This package is a single-box solution for studio control rooms and home theaters.Broadway panels are made from high-density, 6-lb-per-cubic-foot glass wool, offering more substantial absorption than foam alternatives. This means that you get more absorption with fewer panels, while assuring an even absorption curve throughout the frequency range.This London 12 room kit comes in a beige paintable finish and includes 22 panels (two broadband panels, eight control columns, and 12 scatter blocks). The kit includes all the necessary mounting hardware and instructions for easy installation. - Single-box acoustic treatment solution
- Designed for rooms up to 150 ft² (13.9 m²)
- Two broadband panels: 24 x 48 x 2" / 61 x 122 x 5cm (per panel)
- Eight control columns: 12 x 48 x 2" / 30.5 x 122.0 x 5.0cm (per panel)
- 12 scatter blocks: 12 x 12 x 1" / 30.5 x 30.5 x 2.5cm (per panel)
- Up to 40% recycled content
- Combine with other products to treat larger spaces
- Suitable for studio control rooms and home theaters
- Includes mounting hardware
UPC: 676101038695 In the Box Primacoustic London 12 Room Kit (Beige) 2 x Broadband Panels 8 x Control Columns 12 x Scatter Blocks 8 x Corner Impalers 28 x Surface Impalers Set of Drywall Anchors and Screws Limited 30-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Primacoustic London 12 Room Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrimacoustic London 12A Specs | Sound Absorption Coefficient | @1" (25 mm) Depth:
0.17 @ 125 Hz
0.28 @ 250 Hz
0.81 @ 500 Hz
1 @ 1 kHz
1.02 @ 2 kHz
0.95 @ 4 kHz
0.80 @ NRC
@2" (51 mm) Depth:
0.45 @ 125 Hz
0.83 @ 250 Hz
1.07 @ 500 Hz
1.00 @ 1 kHz
1.01 @ 2 kHz
1.00 @ 4 kHz
1.00 @ NRC
@2" (51 mm) Depth Corner Mount:
0.68 @ 125 Hz
1.2 @ 250 Hz
1.07 @ 500 Hz
1.00 @ 1 kHz
1.01 @ 2 kHz
1.00 @ 4 kHz
1.00 @ NRC | | Surface Coverage | 60 ft² / 5.6 m² | | Edge Material | Beveled:
Broadband panels, control columns, scatter blocks | | Construction Material | High-density glass wool (6 lb per ft³) | | Recycled Content | Up to 40% | | Dimensions | Broadband Panels: 24 x 48 x 2" / 61 x 122 x 5 cm (per panel)
Control Columns: 12 x 48 x 2" / 30.5 x 122.0 x 5.0 cm (per panel)
Scatter Blocks: 12 x 12 x 1" / 30.5 x 30.5 x 2.5 cm (per panel) | | Weight | Broadband Panels: 5.3 lb / 2.4 kg (per panel)
Control Columns: 2.7 lb / 1.2 kg (per panel)
Scatter Blocks: 0.8 lb / 0.4 kg (per panel) | | | | Package Weight | 91.5 lb | | Box Dimensions (LxWxH) | 50.5 x 30.0 x 22.0" |
