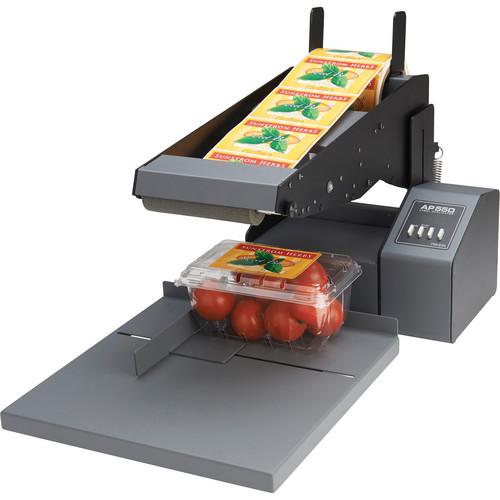

User Manual for Primera AP550 Flat-Surface Label Applicator Click to enlarge the picture
Contents of the user manual for the Primera AP550 Flat-Surface Label Applicator
- Product category: Label Printer Primera
- Brand: Primera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Primera Label Printer
|
User manual for the Primera AP550 Flat-Surface Label Applicator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Primera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Primera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Primera product will considerably shorten its lifespan!
|
Product description The AP550 Flat-Surface Label Applicator from Primera is a semi-automatic label applicator that makes it fast and easy to precisely apply product and identification labels onto a wide range of flat surfaces such as rectangular or tapered bottles, boxes, packages, bags, pouches, lids, tins, and much more. Labels are applied straight without wrinkles or folds in exactly the location desired, which gives finished products a professional look and increases the number of containers that can be labeled per hour versus manually applying labels.Operation is simple; just place the container in the mechanism, pull the arm toward the container, and the label is automatically applied. Variable spacing, memory for up to nine jobs, and a counter with a built-in LED display are all featured. No air pressure supply is required. With this label applicator you will be able to apply labels at speeds of up to 500 per hour. Roll-printed labels by other methods such as flexographic, offset, and thermal transfer can also be applied with the applicator. - Left or right justification of labels is not necessary; operator can adjust to the most convenient position
- High precision, reliable micro-switch activation
- Nothing to clean or get dirty; works with virtually any label including clear labels
- LED display with built-in up/down counter for labels dispensed and applied
UPC: 665188743912 Table of Contents
|
Upload User Manual
Have you got an user manual for the Primera AP550 Flat-Surface Label Applicator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrimera AP550 Specs | | | Container Shape | Flat, tapered | | Container Platform (W x D) | 12.0 x 12.2" (305.0 x 310.0 mm) Container may overhang platform to the front and/or either side. | | Container Height | 0.002 to 8" (0.050 to 203 mm) Containers shorter than 0.8" (20.3 mm) may require adaptive spacers. | | | | Label Size | Label Width: 0.75 to 4.00" (19.00 to 101.60 mm)
Label Height: 0.75 to 6.00" (19.00 to 152.40 mm) | | Label Liner Width | 0.875 to 4.125" (22.200 to 104.800 mm) | | Label Placement | Leading edge up to 8" (203 mm) from trailing container edge | | Label Roll Diameter | 8" (203 mm) (maximum) | | Label Roll Core | 2.0 to 3.0" ID (50.8 to 76.2 mm) | | | | Electrical Ratings | 12 V DC, 5.0 A | | Power Requirements | 0 to 240 V AC, 50/60 Hz, 60 W | | | | Agency Certifications | UL, UL-C, CE, FCC Class A | | | | Dimensions (W x H x D) | 12.0 x 10.1 to 15.4 x 21.3" (305.0 x 256.0 to 391.0 x 541.0 mm) | | Weight | 24.0 lb (10.9 kg) | | | | Package Weight | 33.1 lb | | Box Dimensions (LxWxH) | 26.0 x 18.0 x 15.0" |
