User Manual for Primera DX850 Label Dispenser Click to enlarge the picture
Contents of the user manual for the Primera DX850 Label Dispenser
- Product category: Label Printers Accessories Primera
- Brand: Primera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Primera Label Printers Accessories
|
User manual for the Primera DX850 Label Dispenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Primera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Primera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Primera product will considerably shorten its lifespan!
|

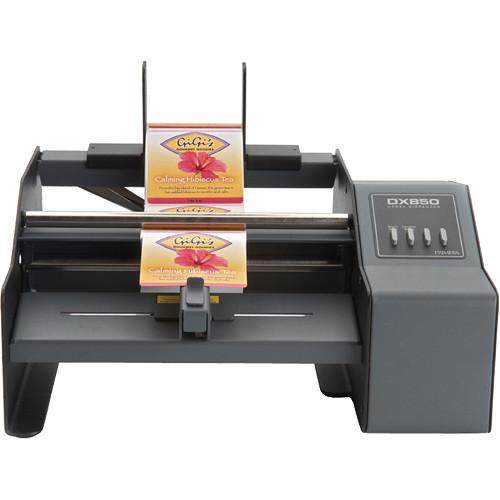

Product description Primera's DX850 Label Dispenser automatically peels and presents self-adhesive labels one at a time. It replaces manual label peeling, making production lines faster and more efficient. The DX850 has a built-in precision micro-switch to detect when a label has been removed from the dispenser and the next label is quickly and automatically fed forward, ready to be removed. A built-in LED display counts up or down, indicating how many labels have been applied or how many are left. The DX850 is robust and reliable, assembled in the USA of heavy-duty sheet metal and machined steel. - Easy to use - no screws or clamps to adjust.
- Left or right justification of labels is not necessary; operator can adjust to the most convenient position.
- High-precision, reliable micro-switch activation.
- It works with virtually any label (including clear labels).
- It features a built-in LED display with an up/down counter for labels dispensed.
- With its Universal Power Supply users simply change the line cord for use in any country.
- The DX850 has UL, UL-C, CE listings, FCC approval, and is RoHS compliant.
In the Box Primera DX850 Label Dispenser Universal Power Supply 1-Year Primera Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Primera DX850 Label Dispenser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrimera 74231 Specs Speed | Feed speed: 4" per sec in Default Mode 2" per sec in Half-speed Mode for 6 - 8" wide labels | Roll | Supply Roll diameter: up to 8" (203mm) Supply Roll core: 2 - 3" (58.1 - 76.2mm) (inner diameter) | Size | Labels: Height/length: 0.75 - 24.0" (19.1 - 609.6mm) Width: 0.75 - 8.25" (19.1 - 209.6mm) | Certifications | UL, UL-C, CE, FCC Class B | Power Requirements | 100-240VAC, 50/60 Hz, 60W | Dimensions (WxHxD) | 13.44 x 8.75 x 11.25" (341 x 222 x 2876mm) | Weight | 11.5 lb (5.2 kg) | | Package Weight | 23.61 lb | Box Dimensions (LxWxH) | 19.0 x 17.0 x 14.0" |
