User Manual for Princeton Tec Axis Rechargeable LED Head Lamp Click to enlarge the picture
Contents of the user manual for the Princeton Tec Axis Rechargeable LED Head
- Product category: Headlamps Princeton Tec
- Brand: Princeton Tec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Princeton Tec Headlamps
|
User manual for the Princeton Tec Axis Rechargeable LED Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Princeton Tec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Princeton Tec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Princeton Tec product will considerably shorten its lifespan!
|

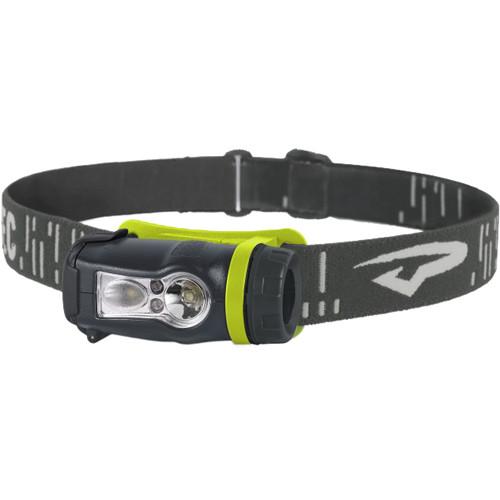

Product description Enjoy a wide range of beam shapes and brightness and forget about replacing batteries with the lightweight, easy-to-use Axis Rechargeable Headlamp from Princeton Tec. From its powerful 250-lumen maximum output to a campsite-friendly red glow that won't spoil your night-acclimated vision, the Axis will provide the right light for your outdoor adventures. Click the push-button switch once for red light and twice for a white spot beam, then twist the dial surrounding the button to adjust output. Click and hold the button for the white flood beam, and twist the dial to activate both beams for light that shines both far and wide.Charging the Axis is easy: a door on the right side of the light opens to reveal a micro-USB port where you plug in. A 5-volt, 1-amp charger will have the lamp ready for use in 4 hours or less. Runtimes range from 2 hours on spot high to 138 hours on red low. The Axis is rated the equivalent of IPX4 water resistance to resist splashing and brief dunkings, and weighs just 2.9 ounces. - Light Performance
-
- Maximum output: 250 lumens
- Spot, flood, dual, and red light modes
- Runtimes: Spot 2-17 hours, flood 8-54 hours, dual 2-3 hours, red 32-138 hours
- Switching
-
- Side-mounted switch and surrounding dial
- Click once for red light, twist dial for brightness
- Click twice for spot, twist dial for brightness
- Click and hold for flood, twist dial for dual beam
- Use & Handling
-
- Lightweight at 2.9 ounces
- Lockout mode prevents accidental activation
- Princeton Tec Level 1 water resistance, equivalent to IPX4
- Recharges in 4 hours with 5V, 1A adapter
UPC: 795626023327 In the Box Princeton Tec Axis Rechargeable LED Head Lamp (Green/Gray) Micro-USB Charging Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Princeton Tec Axis Rechargeable LED Head Lamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrinceton Tec Axis Rechargeable Specs | | | Lumen Output | 250 Lumens | | Illumination Source | 1 x White LED
1 x Red LED | | Estimated Runtime | High: 2 Hours
Low: 17 Hours
High (Flood): 8 Hours
Low (Flood): 54 Hours
High (All Beams): 2 Hours
Low (All Beams): 3 Hours
High (Red): 32 Hours
Low (Red): 138 Hours | | Battery Type | 1 x Built-In Lithium-Ion | | | | Water Resistance | Water Resistant, IPX4 | | Weight | 2.9 oz / 81 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 5.4 x 3.4 x 1.3" |
