Princeton Tec Eos 130 LED Bike

Search your instruction manual in PDF to download

User Manual for Princeton Tec Eos 130 LED Bike Lamp

Click to enlarge the picture
Princeton Tec Eos 130 LED Bike Lamp Contents of the user manual for the Princeton Tec Eos 130 LED Bike
  • Product category: Bicycle Lights Princeton Tec
  • Brand: Princeton Tec
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Princeton Tec Bicycle Lights

Princeton Tec Eos 130 LED Bike Lamp Princeton Tec Eos 130 LED Bike Lamp
User manual for the Princeton Tec Eos 130 LED Bike contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Princeton Tec product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Princeton Tec user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Princeton Tec product will considerably shorten its lifespan!



Product description

With its 1-watt Maxbright LED shining a bright 130-lumen beam, the Eos Bike Light from Princeton Tec will let you see and be seen when cycling in low light or after dark. The single push-button switch on the top of the lamp housing cycles through high, medium, low, and flash settings, with regulated light runtimes of 1, 10, 50, and 100 hours, respectively. The regulated LED circuitry assures consistent brightness across the life of the three AAA batteries. Mounts are included to use the 3.7-ounce light on your handlebars or your helmet, and an elastic headband is also supplied for general outdoors or around-the-house use.
    Light Performance
    • 130 lumens
    • High, medium, low, flash modes
    • Optic collimator provides a focused beam with a generous throw
    Switching
    • Single push-button
    • Location: top of housing
    • Press 1x for high, 2x for medium, 3x for low, 4x for flash
    Use and Handling
    • IPX7-rated, waterproof/submersible down to 3.3' for 30 minutes
    • Regulated runtimes: high 1 hour, medium 10 hours, low 50 hours, flash 100 hours
    • Regulated LED circuitry for consistent output across battery life

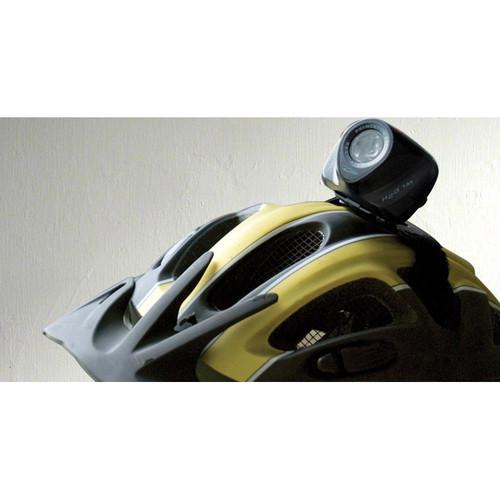

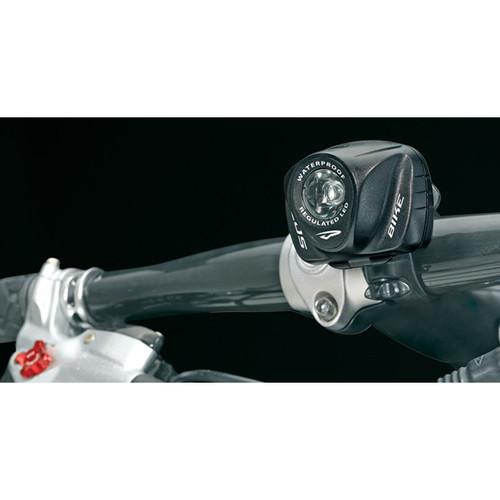

    • Comes with handlebar and helmet mounts and elastic headband
    • Runs on three AAA batteries
    • Weight: 3.7 ounces
UPC: 795626023785 In the Box Princeton Tec Eos 130 LED Bike Lamp (Black)
  • Handlebar Mount
  • Bike Helmet Mount
  • Headband
  • Limited Lifetime Warranty in U.S., 10-Year Warranty Elsewhere
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Princeton Tec Eos 130 LED Bike Lamp in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Princeton Tec Eos Bike Specs

    Output 130 lumens max
    Light Source Maxbright LED
    Battery 3 x AAA
    Runtime Regulated: high 1 h, medium 10 h, low 50 h, flash 100 h
    Unregulated: high 113 h, medium 115 h, low 121 h, flash 100 h
    Unregulated runtime is the time it takes to produce a minimum of 0.25 lux at 6.6' / 2 m
    Water Resistance IPX7-rated, submersible to 3.3' / 1 m
    Dimensions Not specified by manufacturer
    Weight 3.7 oz / 105 g
    Package Weight 0.25 lb
    Box Dimensions (LxWxH) 7.0 x 4.0 x 4.0"

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 71 owners. Add your rating and experience with the product.
