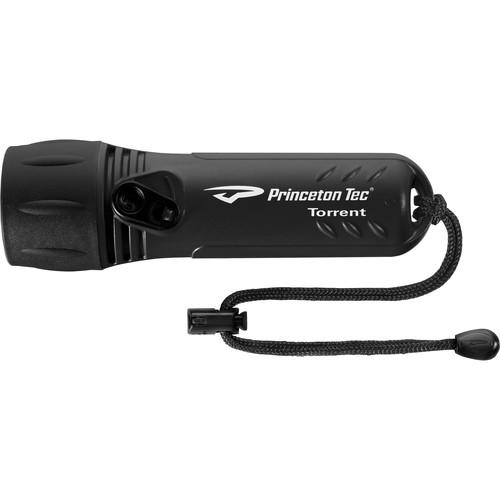

Product description Brighten the world beneath the sea with the compact black Princeton Tec Torrent LED Dive Light, which features a depth rating of 328'. Its single Lumileds Maxbright LED outputs smooth white light at 280 lumens, a brightness which can be maintained for up to 4.5 hr by the light's regulating circuit. When the maximum output is not maintained, the light will burn for up to 30 hr and become gradually dimmer until the 8 AA alkaline, lithium, NiCad, or NiMH batteries are drained. The wide, focused beam simulates normal daylight conditions and is suitable for numerous applications.
The Torrent also has heatsink technology, which dissipates heat to prevent the LED from reaching excessively high temperatures that can cause damage. The heatsinks allow the light to burn safely at a high brightness for long periods of time. - Light Performance
-
- Single Lumileds Maxbright LED outputs 280 lumens
- Max. brightness can be maintained for up to 4.5 hr by the light's regulating circuit
- When unregulated, light will burn for up to 30 hr and become gradually dimmer until the 8 AA batteries are drained
- Runs on alkaline, lithium, NiCad, or NiMH batteries. Lithium will yield longest max brightness time and best performance in cold temperatures, followed next by alkaline. Use of other chemistry types will likely cause reduced brightness and run time
- Wide, focused beam with smooth white light simulates normal daylight conditions and is suitable for numerous applications
- Heatsink technology dissipates heat to prevent the LED from reaching excessively high temperatures that can cause damage
- Heatsinks allow the light to burn safely at a high lumen output for long stretches of time
- Construction Details
-
- Meets IPX8 specifications and carries a Princeton Tec Level 3 rating, meaning it has a depth rating of 328' and is safe for continuous submersion in water
- O-ring provides watertight seal
- Switching System
-
- Lever switch centrally located on body just below light head
- Pushing the switching lever forward deactivates the lock, which is there to prevent light from accidentally being turned on when not in use
- Rotating switch to off position and sliding lever back re-locks it
- Moving lever over to the right turns light on
UPC: 795626014110 In the Box Princeton Tec Torrent LED Dive Light (Black) Limited Lifetime USA Warranty Limited 10-Year International Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Princeton Tec Torrent LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrinceton Tec TORR-BK Specs | Depth Rating | 328' / 100 m
IPX8 and Princeton Tec Level 3 ratings for continuous submersion in water | | Light Source | Single Lumileds Maxbright LED | | Light Intensity | 280 lumens | | Modes | Regulated: Constant brightness until batteries drained
Unregulated: Gradually dwindling brightness until batteries drained | | Beam Angle | Not specified by manufacturer | | Beam Distance | Approx. 270' / 82 m | | Color Temperature | Not specified by manufacturer | | Run Time | Maintained Max Brightness (Regulated): Up to 4.5 hr
Unregulated: Up to 30 hr | | Switching System | Lever switch with lock | | Material of Construction | Not specified by manufacturer | | Power Source | 8 AA alkaline (LR03), lithium (L92), rechargeable NiCad, or rechargeable NiMH batteries
NiCad and NiMH will likely result in reduced brightness and burn time | | Certifications | UL public safety certification for Class I, Division 2, Group A/B/C/D locations/environments
UL Temperature Code T4: Surface or electrical equipment exposed to atmosphere will not exceed 275°F / 135°C | | Dimensions | Not specified by manufacturer | | Weight | 12.9 oz / 365 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.5 x 5.1 x 2.4" |
