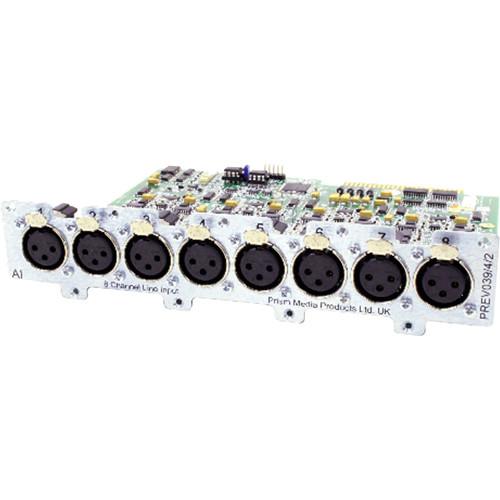

User Manual for Prism Sound 8C-AD 8-Channel A D Module for ADA-8XR Interface Click to enlarge the picture
Contents of the user manual for the Prism Sound 8C-AD 8-Channel A D
- Product category: Accessories Prism Sound
- Brand: Prism Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Prism Sound Accessories
|
User manual for the Prism Sound 8C-AD 8-Channel A D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Prism Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Prism Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Prism Sound product will considerably shorten its lifespan!
|
Product description The Prism Sound 8C-AD is an 8-channel A/D module offering uncompromising analog-to-digital conversion for producers, musicians, and audio engineers using a Prism Sound Dream ADA-8XR audio interface in a variety of studio environments. Exhibiting low noise, minimal distortion, and high dynamic range, it features eight balanced XLR 3-pin female inputs, which accept line-level signals and feed them to 24-bit/192 kHz A/D converters. Input level and trim are adjustable per channel for precise calibration and gain optimization. Prism Sound's Overkiller limiters are individually selectable for each of the eight inputs, allowing protection against clipping on a channel-by-channel basis. The 8C-AD easily installs into an analog I/O slot of a Dream ADA-8XR (available separately). - Adds eight analog line-level inputs to your Prism Sound Dream ADA-8XR audio interface
- Supports resolutions up to 24-bit/192 kHz
- Selectable per-channel Overkiller limiters utilize automatic threshold configuration according to the specified input level, and catch fast transients to minimize A/D clipping
- Input level (0.5 dBu increments) and trim (0.05 dBu increments) are adjustable via the host ADA-8XR's menu system
- Eight balanced XLR 3-pin female input jacks
In the Box Prism Sound 8C-AD 8-Channel A/D Module for ADA-8XR Interface Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Prism Sound 8C-AD 8-Channel A D Module for ADA-8XR Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrism Sound ADA-8XR AD Specs | Inputs | 8 x XLR 3-pin female (balanced) | | Input Impedance | 21.005 kOhms | | Input Range | +5 to +24 dBu | | Gain Accuracy |
