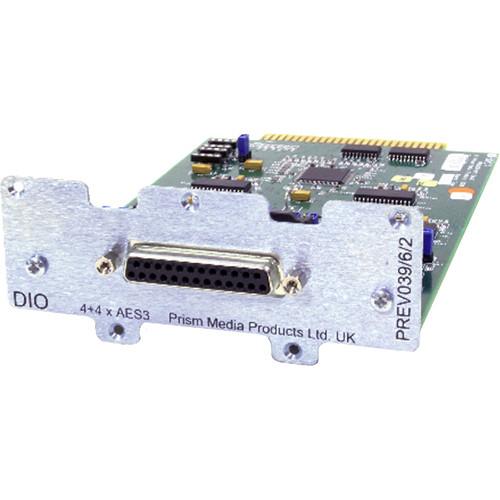

User Manual for Prism Sound 8C-AES 8-Channel AES I O Module for ADA-8XR Interface Click to enlarge the picture
Contents of the user manual for the Prism Sound 8C-AES 8-Channel AES I
- Product category: Accessories Prism Sound
- Brand: Prism Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Prism Sound Accessories
|
User manual for the Prism Sound 8C-AES 8-Channel AES I contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Prism Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Prism Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Prism Sound product will considerably shorten its lifespan!
|
Product description The Prism Sound 8C-AES is an 8-channel AES I/O module offering flexible digital input and output configurations for producers, musicians, and audio engineers using a Prism Sound Dream ADA-8XR audio interface in a variety of studio environments. It supports resolutions up to 24-bit / 192 kHz, AES3 and S/PDIF channel status, and one- and two-wire modes. One transformer-coupled DB25 connector accommodates eight channels in and out and can be wired to XLR-equipped gear via the supplied 4.9' DB25 to XLR breakout cable.The input and output sections are independent, which allows them to operate at different sample rates, sync to different clock sources, and utilize different impedances. The 8C-AES easily installs into the upper or lower digital I/O slot of a Dream ADA-8XR (available separately). - Eight channels of digital audio I/O on four AES3 carriers in each direction
- Input and output sections are independent and may be assigned to different paths with different sample rates, sync sources, and more
- Accommodates sample rates up to 192 kHz in Split96 (two-wire) or high-speed (one-wire) mode, and can output consumer (S/PDIF) or professional (AES3) channel status
- Inputs and outputs can be jumpered to comply with AES3 or S/PDIF carrier voltage levels and impedances
- Supplied breakout cable features a DB25 male connector on one end and eight XLR connectors (four female and four male) on the other
- Easily installs in an ADA-8XR upper slot (DIO1) if no workstation I/O card is fitted, or in the lower slot (DIO2) if a workstation card is fitted
In the Box Prism Sound 8C-AES 8-Channel AES I/O Module for ADA-8XR Interface DB25 to XLR AES3 Breakout Cable (4.9') rqtxdxzddxxaeruarxrfsebtbbxzazdfacduxb Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Prism Sound 8C-AES 8-Channel AES I O Module for ADA-8XR Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrism Sound ADA-8XR DIO-AES Specs | I/O Connections | 1 x DB25 female (transformer coupled) | | Impedance | AES3 Mode: 110 Ohms
S/PDIF Mode: 75 Ohms | | Output Signal Amplitude | AES Mode: 3.2 V p-p (loaded)
S/PDIF Mode: 0.5 V p-p (loaded) | | Sample Rates | Up to 192 kHz
One-wire or two-wire (Split96) input and output modes are supported at 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz | | Bit Depth | 16-bit, 20-bit, 24-bit | | Channel Support | Consumer (S/PDIF) or professional (AES3) | | Jitter Tolerance | Below 200 Hz: 15 UI p-p
Above 8 kHz: 0.5 UI p-p*1 (UI = 163 ns at 48 kHz) | | Latency | 44.1 kHz: 34 samples / 0.77 ms
48 kHz: 34 samples / 0.71 ms
96 kHz: 34 samples / 0.35 ms
192 kHz: 34 samples / 0.18 ms | | Dimensions (W x D x H) | 4.3 x 6.7 x 1.6" / 11 x 17 x 4 cm | | Weight | 0.2 lb / 0.1 kg |
