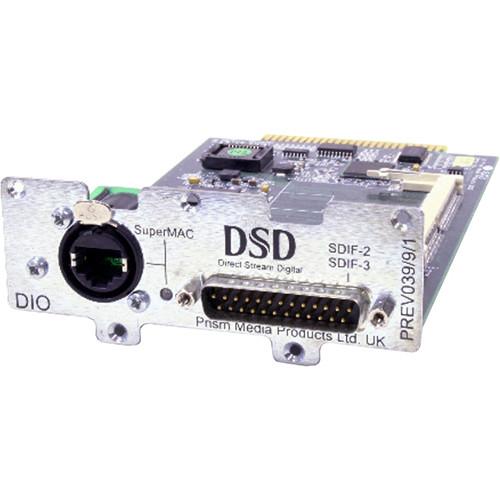

Product description The Prism Sound 8C-DSD is an 8-channel DSD I/O module offering flexible digital input and output configurations for producers, musicians, and audio engineers using a Prism Sound Dream ADA-8XR audio interface in a variety of studio environments. It supports SDIF-2, SDIF-3, and MAC-DSD / SuperMAC formats at the Direct Stream Digital resolution of 1-bit / 2.8224 MHz. One DB25 connector accommodates eight channels of SDIF-2 or SDIF-3 in and out, and can be wired to BNC-equipped, DSD-capable gear via the supplied 4.9' DB25 to BNC breakout cable. The RJ45 port enables use of the MAC-DSD / SuperMAC format over a Cat5e cable.A Dream ADA-8XR's sample rate and sync options remain applicable to paths connected via DSD. Input may be accepted from the DB25 or RJ45 port, while output signal is sent simultaneously to both ports. The 8C-DSD easily installs into the upper or lower digital I/O slot of a Dream ADA-8XR (available separately). - Eight channels of digital audio I/O at 1-bit / 2.8224 MHz
- Supports SDIF-2, SDIF-3, and MAC-DSD / SuperMAC formats
- Supplied breakout cable features a DB25 female connector on one end and 17 color-coded BNC jacks on the other
- Easily installs in an ADA-8XR upper slot (DIO1) if no workstation I/O card is fitted, or in the lower slot (DIO2) if a workstation card is fitted
UPC: 669014270528 In the Box Prism Sound 8C-DSD 8-Channel DSD I/O Module for ADA-8XR Interface DB25 to BNC DSD Breakout Cable (4.9') bxyqsadyevvfuusyua Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Prism Sound 8C-DSD 8-Channel DSD I O Module for ADA-8XR Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrism Sound ADA-8XR DIO-DSD Specs | I/O Connections | 1 x DB25 male
1 x RJ45 female | | Bit Depth | 1-bit | | Sample Rate | 2.8224 MHz | | Formats Supported | SDIF-2, SDIF-3, and MAC-DSD / SuperMAC | | Maximum Input Level | Normal: 0 dB SACD
Hot: +3.1 dB SACD | | Maximum Output Level | Normal: 0 dB SACD
Hot: +3.1 dB SACD | | Dimensions (W x D x H) | 4.3 x 6.7 x 1.6" / 11 x 17 x 4 cm | | Weight | 0.2 lb / 0.1 kg |
