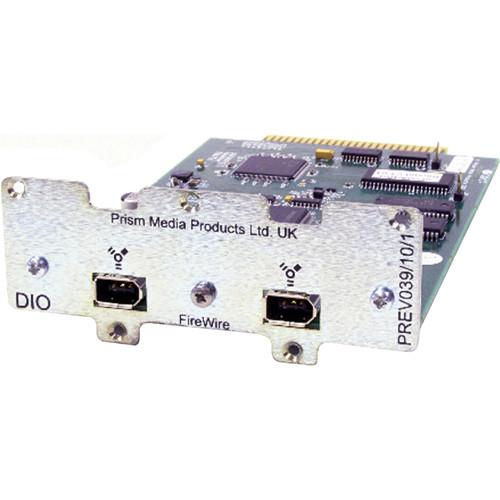

User Manual for Prism Sound 8C-FW 8-Channel FireWire I O Module for ADA-8XR Interface Click to enlarge the picture
Contents of the user manual for the Prism Sound 8C-FW 8-Channel FireWire I
- Product category: Audio Interfaces & Systems Prism Sound
- Brand: Prism Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Prism Sound Audio Interfaces & Systems
|
User manual for the Prism Sound 8C-FW 8-Channel FireWire I contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Prism Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Prism Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Prism Sound product will considerably shorten its lifespan!
|
Product description The Prism Sound 8C-FW is an 8-channel FireWire I/O module offering flexible digital input and output configurations for producers, musicians, and audio engineers using a Prism Sound Dream ADA-8XR audio interface in a variety of studio environments. With selectable configurations, it supports up to eight channels of I/O at up to 96 kHz or up to four channels of I/O at 176.4 kHz or 192 kHz. Two 6-pin FireWire 400 (1394a) ports enable proper connectivity with computers equipped with 4- or 6-pin FireWire 400. The 8C-FW easily installs into the upper or lower digital I/O slot of a Dream ADA-8XR (available separately) and is compatible with Mac OS X and Windows systems. - Eight channels of digital audio I/O at sample rates up to 96 kHz
- Four channels of digital audio I/O at 176.4 kHz or 192 kHz
- Functions as a Core Audio device under Mac OS X (multiple FireWire modules are not supported by Mac OS X)
- Functions as a WDM and ASIO compliant device under Windows XP and later (multiple FireWire modules are supported by Windows)
- Compatible with 4- or 6-pin FireWire 400 (1394a) ports
- Supports multiple I/O configurations—8-in / 8-out, 2-in / 8-out, 8-in / 2-out, or 4-in / 4-out
- Easily installs in either digital I/O slot (DIO1 or DIO2) of an ADA-8XR (available separately)
UPC: 669014270535 In the Box Prism Sound 8C-FW 8-Channel FireWire I/O Module for ADA-8XR Interface Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Prism Sound 8C-FW 8-Channel FireWire I O Module for ADA-8XR Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrism Sound ADA-8XR Specs | System Requirements | Mac OS X 10.3.7 or later
PowerPC G4 or G5 at 700 MHz or faster (1.2 GHz G4 processor or faster recommended for high sample rates)
256 MB RAM minimum
800 x 600 minimum screen resolution at 65,536 colors or more
FireWire 400 port
Windows XP Home or Pro (SP1) or later
Celeron or Pentium-compatible CPU at 900 MHz or faster (2 GHz Pentium processor or faster recommended for high sample rates or multiple units)
256 MB RAM minimum
800 x 600 minimum screen resolution at 65,536 colors or more
FireWire 400 port | | I/O Connectors | 2 x 6-pin IEEE-1394a FireWire 400 ports | | Power | IEEE-1394 Power Class: 4 | | Audio Format | IEC 61883-6 (2nd edition) | | Sample Rates | Up to 192 kHz | | Number of Channels | Up to 96 kHz: 8 simultaneous input and output channels
176.4 kHz or 192 kHz: 4 simultaneous input and output channels | | Dimensions (W x D x H) | 4.3 x 6.7 x 1.6" / 11 x 17 x 4 cm | | Weight | 0.2 lb / 0.1 kg |
