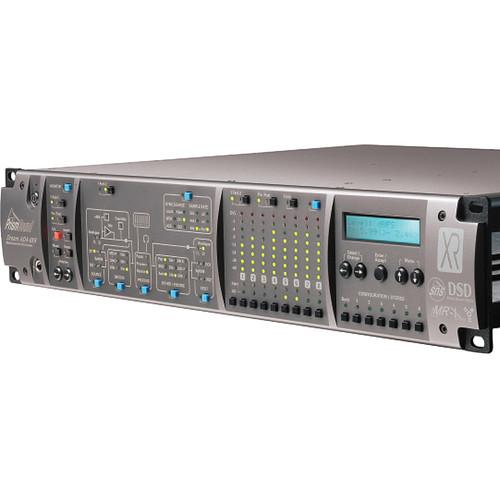

Prism Sound ADA-8XR Frame Audio Interface

User Manual for Prism Sound ADA-8XR Frame Audio Interface Chassis

• Product category: Audio Interfaces & Systems Prism Sound
• Brand: Prism Sound
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Prism Sound Audio Interfaces & Systems

Product description

• Modular architecture accommodates special configurations and provides future-proofing with individually upgradeable A/D conversion, D/A conversion, DSP, digital interfacing, and utility hardware

• Supports sample rates up to 192 kHz

• 2-channel monitor section follows channel pairs or a mix of all channels

• 8-channel assignable bargraph meter array with over-detection

• Renowned Prism Sound jitter-rejecting PLL technology and low-jitter master clock

• Flexible synchronization options including sync to AES11, word clock, or video sync

• Flexible routing allows creation of digital-to-digital processing paths for processing or format conversion

• SNS noise-shapers preserves dynamic quality during 16-/20-bit transfers

• MR-X bit-splitting allows extended bit depths and sample rates on 16-bit media

• DRE (Dynamic Range Enhancement) enables 24-bit performance on 16-bit stereo media without sacrificing tracks

• Optional DSP expansion facility for extended processing features including synchronous sample-rate conversion

• Comprehensive store system for fast-access factory and user presets

• Unique "Access button" layout combines the flexibility of menus with the speed of dedicated controls

• Internet-upgradeable software loads from your computer into flash memory inside the ADA-8XR

• Rack-mountable enclosure occupies 2 RU of rack space

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Prism Sound ADA-8XR Specs

Outputs	1 x RCA analog stereo pair (electronically balanced) 1 x 1/4" TRS stereo headphone jack 1 x BNC digital stereo output (AES-3id or S/PDIF)
Module Slot	2 x analog I/O module slots 2 x digital I/O module slots 1 x utility slot 1 x internal DSP expansion slot
Sync I/O	1 x BNC input (word clock, AES, or video in) 1 x BNC output (word clock) 1 x XLR 3-pin female input (AES11) 1 x XLR 3-pin male output (AES11)
Serial Communication	1 x DB9 male connector (RS-232, RS485, MIDI)
Input Impedance	XLR: 110 Ohms BNC (Sync): 75 Ohms
Output Impedance	RCA: 50 Ohms 1/4": 115 Ohms XLR: 110 Ohms BNC (Sync): 75 Ohms
Headroom	RCA: 0 dBFS = +15 dBu, +18 dBu, +21 dBu, or +24 dBu
