User Manual for Prism Sound DB25 to BNC DSD Breakout Cable Click to enlarge the picture
Contents of the user manual for the Prism Sound DB25 to BNC DSD
- Product category: Audio Snake Cables Prism Sound
- Brand: Prism Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Prism Sound Audio Snake Cables
|
User manual for the Prism Sound DB25 to BNC DSD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Prism Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Prism Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Prism Sound product will considerably shorten its lifespan!
|

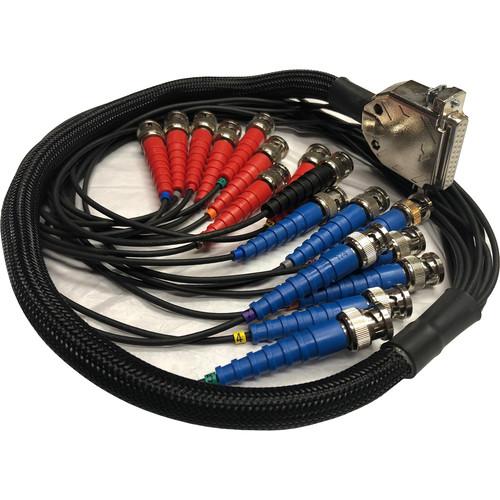

Product description The 4.9' Prism Sound DB25 to BNC DSD Breakout Cable is designed for interconnecting digital audio gear in touring setups, recording studios, and mastering houses. Configured for eight channels of DSD I/O, it features a DB25 female connector on one end and 17 color-coded BNC jacks (eight inputs, eight output, and one clock output) on the other. Use it for efficient hookup of a Prism Sound Dream ADA-8XR audio interface (available separately) and external A/D-D/A converters or a multitrack DSD recorder. - DSD breakout cable for use with the 8C-DSD card in a Prism Sound Dream ADA-8XR audio interface
- Supports eight channels in and out
- Dedicated BNC for clock output signal
- DB25 female splits to 17 BNC coaxial connectors (eight inputs, eight outputs, and one clock output)
- Connectors are color-coded for easy identification
In the Box Prism Sound DB25 to BNC DSD Breakout Cable (4.9') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Prism Sound DB25 to BNC DSD Breakout Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrism Sound ADA-8XR SQ-DSD Specs | Cable Type | Digital multichannel cable | | Connector 1 | 1 x DB25 female | | Connector 2 | 8 x BNC inputs (blue)
8 x BNC outputs (red)
1 x BNC clock output (black) | | Cable Length | 4.9' / 1.5 m | | I/O Impedance | 75 Ohms | | Output Voltage | Output Carrier Amplitude (Loaded): 3.6 V p-p |
