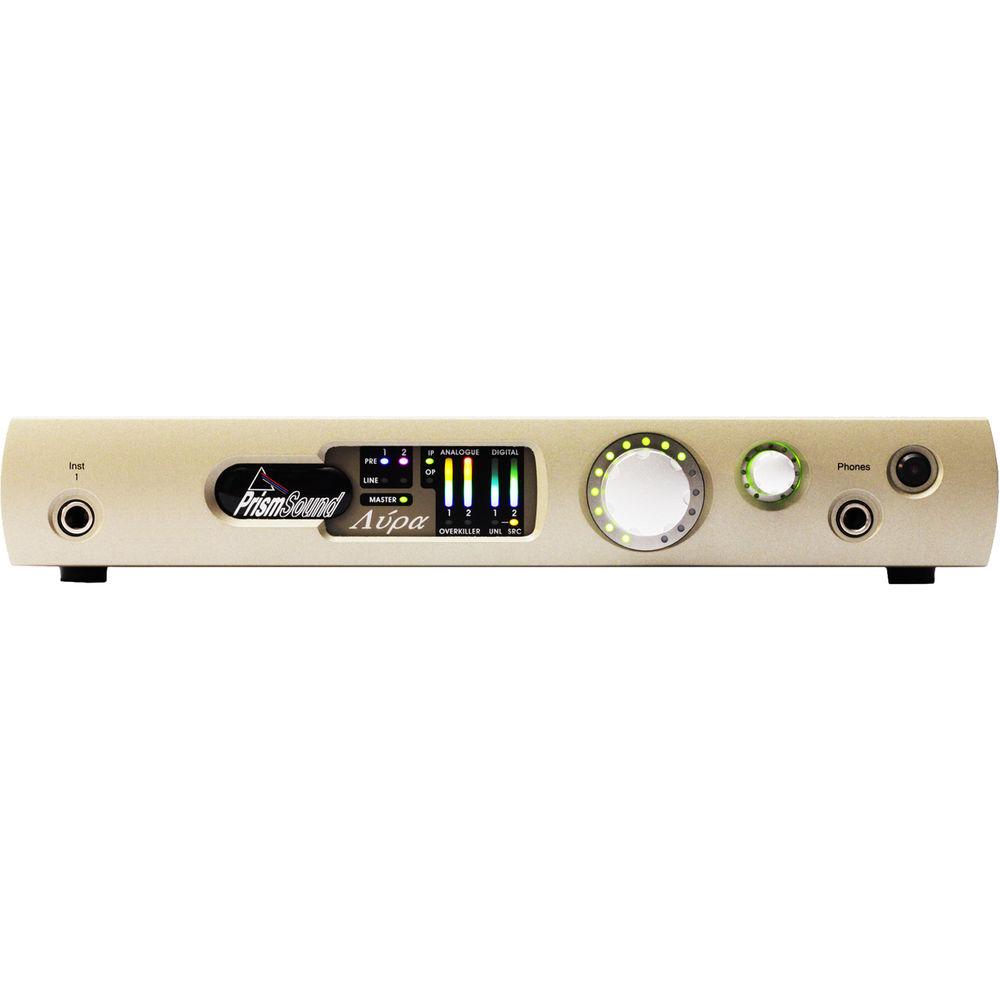

Product description The Prism Sound Lyra 1 is a USB audio interface designed to deliver reliable precision and high-resolution audio I/O for musicians, vocalists, songwriters, and audio engineers in home, project, and mobile studios. Its stable clock allows operation at up to 24-bit / 192 kHz resolution with high jitter rejection. With latency as low as 0.08 ms, it is well suited for recording, overdubbing, and even send-and-return routing.Line, instrument, or microphone sources can be connected via the stereo 1/4" TRS inputs, 1/4" instrument input, and XLR 3-pin input. Phantom power is selectable as are the input pads and built-in limiters. The stereo 1/4" line outputs are ideal for connection to speakers while the front-panel 1/4" jack offers dedicated level and mix controls for independent headphone monitoring. Additionally, TOSLINK optical I/O ports allow easy hook-up of S/PDIF digital equipment.The Lyra 1 is compatible with Mac OS X and Windows systems via its Class-Compliant USB 2.0 connectivity. An IEC power cable and USB cable are included. - Signal Path
- Analog and digital input channels are available as inputs for your audio workstation software through the host computer's audio driver. Similarly, analog and digital outputs and stereo headphone outputs can be played independently. For low-latency monitoring to headphone or main outputs, each output pair can optionally be driven from the built-in DSP mixer with an individual local mix of any selection of inputs through the controller applet. All analog inputs are electronically balanced with automatic unbalanced operation. Analog outputs are electronically balanced with bootstrapping (level is maintained if one leg is grounded).
- Verifile Technology
- Verifile is a radical new proprietary technology exclusive to Prism Sound which allows computer audio streams and recorded files to be quickly checked for a wide range of clicks, errors and dropouts, without any compromise in the audio content or any additional metadata. Verifile is a fragile steganographic process, which embeds derivative data within the dither of the ADC, containing a rolling hash code which allows the audio data to be thoroughly and continuously checked. Recovery of this data from the audio stream or file enables verification that the stream or file contains exactly the audio data that was produced by the ADC at the time of recording. Any incorrect samples, missing or repeated audio segments or any other audio errors in the resulting files can be reliably detected, providing complete confidence that the recorded file is error-free. Processing such as EQ, level changes, additional re-dithering, or sample-rate conversion done to a Verifile recording will result in a failure to decode the rolling hash code in the dither and hence indicate that the recording is not an original.
- Reliable Quality
- Prism Sound uses precise software calibration techniques in its converters to avoid the unreliability of pots and tweaks. Minimizing noise, interference, and hum was a priority in the design. All the analog circuits have galvanic isolation, while the unit's electronically balanced I/O allows it to handle common mode interference sources and trouble-free connection to unbalanced equipment.
- USB 2.0 Compatibility
- The Lyra 1 is easy to connect to your computer and to your outboard gear. For both Mac and Windows platforms, there is a controller application to configure the unit and control its built-in mixer and various functions. Aside from the monitor and headphone level controls, everything else is operated solely from the Lyra controller application. The controller software opens on-screen as a separate panel alongside your existing editing software. Since the Lyra 1 is UAC2 compliant, it will also work in recent Linux and Android builds, although no control panel is provided.
- Flexible I/O
- Utilizing the same mic amps as Orpheus, the Lyra offers software-controlled gain in 1 dB steps, switchable phantom power, a 20 dB pad, and low noise and distortion. The inputs are auto-sensing with software override. Channel one can be instrument or line while channel two can be microphone or line. Analog inputs have individually-selectable Prism Sound Overkiller peak limiters built in—just as on the ADA-8XR and Orpheus—to catch those fast transients. The Overkiller threshold automatically follows the operating line-level selection (+4 dBu or -10 dBV). Overkillers are ideal for percussive sounds, particularly drums, where headroom can be a problem.
- Low-Latency Digital Mixer
- A built-in digital mixer can be configured from the host computer to provide foldback feeds to performers, each with their own stereo mix of workstation playback and any of the inputs. This provides console quality local mixing—each output has its own independent mixer, with channel strips for all inputs and workstation feeds, complete with fader, pan/balance pot, solo and mute buttons, and full metering. Strips can be stereo or mono, and the mixes are dithered with filtered coefficients, just as in a top-end digital mixer. With the Prism Sound DSP mixer, the latency is as low as 0.08 ms at a 192 kHz sampling rate.
- Sample Rate Conversion & Noise Shaping
- Sample rate conversion on the digital input enables use of any standard input sample rate between 44.1 kHz and 192 kHz. The digital output is equipped with the four Prism Sound SNS noise-shaping curves, allowing you to reduce to 16-bits for CD at mastering-house quality.
- Stable Clocking
- State-of-the-art clock generation with proprietary hybrid 2-stage DPLL keeps jitter to a minimum. The sample rate can be sourced from the local clock or via the S/PDIF input stream.
UPC: 669014270887 In the Box Prism Sound Lyra 1 USB Audio Interface IEC Cable USB Type-A to USB Type-B Cable CD with Software and Manuals Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Prism Sound Lyra 1 USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

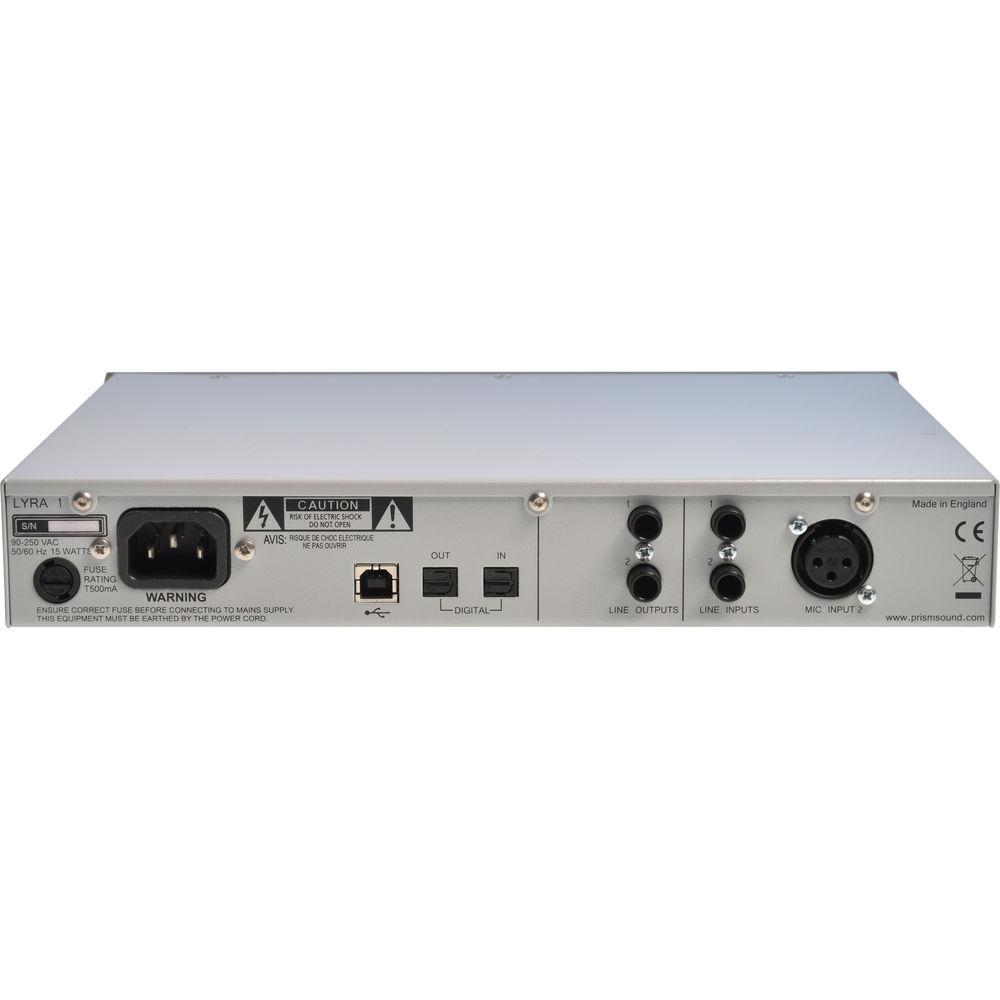

Technical parametersPrism Sound Lyra 1 Specs System Requirements | Mac OS X 10.5 or later (Intel only) Host application that supports Core Audio Windows Vista or later (32- / 64-bit) Host application that supports ASIO | Inputs | 1 x XLR 3-pin female mic input (balanced) 1 x 1/4" TS instrument input (unbalanced) 2 x 1/4" TRS line inputs (balanced or unbalanced) 1 x TOSLINK optical S/PDIF input | Outputs | 2 x 1/4" TRS line outputs (balanced or unbalanced) 1 x 1/4" TRS headphone output (unbalanced) 1 x TOSLINK optical S/PDIF output | USB | 1 x USB Type-B | Input Sensitivity | Line Inputs: +4 dBu (0 dBFS = +18 dBu) or -10 dBV (0 dBFS = +6 dBu) | Input Impedance | Line Inputs: 14.5 kOhms Mic Input: 5.5 kOhms Instrument Input: 1 MOhm | Output Level | Analog Outputs: +4 dBu (0 dBFS = +18 dBu) or -10 dBV (0 dBFS = +6 dBu) | Output Impedance | Balanced: 100 Ohms Unbalanced: 50 Ohms | Balance | Output: >50 dB | Total Harmonic Distortion (THD) | Line Inputs: -117 dB at -0.1 dBFS (0.00014%) Mic Input at +10 dB Gain: -116 dB at -0.1 dBFS (0.00016%) Mic Input at +40 dB Gain: -110 dB at -0.1 dBFS (0.00032%) Analog Outputs: -107 dB at -1 dBFS (0.00045%) | THD + N | Line Inputs: -111 dB at -0.1 dBFS (0.00028%) Mic Input at +10 dB Gain: -108 dB at -0.1 dBFS (0.00040%) Analog Outputs: -106 dB at -0.1 dBFS (0.00050%) Sample Rate Converter: < -137 dB at -0.1 dBFS (0.000014%) | EIN | Mic Input at +30 dB Gain: -128.5 dBu (0-Ohm source), -126.3 dBu (150-Ohm source) Mic Input at +40 dB Gain: -130.9 dBu (0-Ohm source), -127.6 dBu (150-Ohm source) Mic Input at +50 dB Gain: -131.2 dBu (0-Ohm source), -127.7 dBu (150-Ohm source) Mic Input at +60 dB Gain: -131.4 dBu (0-Ohm source), -127.8 dBu (150-Ohm source) | Dynamic Range | Line Inputs: 116 dB (-60 dBFS) Analog Outputs: 115 dB (-60 dBFS) Sample Rate Converter: >138 dB (0.000013%, -60 dBFS) | Gain Range | Mic Input: 10 to 65 dB in 1 dB steps (0 dBFS = -56 to -1 dBu) Instrument Input: 10 to 65 dB in 1 dB steps (0 dBFS = -38 to +17 dBu) | Pad | Mic Input: -20 dB Instrument Input: -18 dB | Gain Accuracy | ±0.05 dB | Attenuation | LF Roll-Off (Line Inputs): -0.05 dB at 8 Hz, -3 dB at <1 Hz LF Roll-Off (Mic Input): -0.05 dB at 20 Hz, -3 dB at 5 Hz LF Roll-Off (Analog Outputs): -0.05 dB at 8 Hz, -3 dB at <1 Hz HF Roll-Off (Line/Mic Inputs) at 44.1 kHz: -0.05 dB at 21.1 kHz, -3 dB at 22 kHz HF Roll-Off (Line/Mic Inputs) at 48 kHz: -0.05 dB at 23 kHz, -3 dB at 23.9 kHz HF Roll-Off (Line/Mic Inputs) at 96 kHz: -0.05 dB at 32 kHz, -3 dB at 47.9 kHz HF Roll-Off (Line/Mic Inputs) at 192 kHz: -0.05 dB at 32 kHz, -3 dB at 78 kHz HF Roll-Off (Analog Outputs) at 44.1 kHz: -0.05 dB at 21.4 kHz, -3 dB at 22 kHz HF Roll-Off (Analog Outputs) at 48 kHz: -0.05 dB at 23.2 kHz, -3 dB at 23.9 kHz HF Roll-Off (Analog Outputs) at 96 kHz: -0.05 dB at 32 kHz, -3 dB at 47.8 kHz HF Roll-Off (Analog Outputs) at 192 kHz: -0.05 dB at 32 kHz, -3 dB at 76 kHz | CMRR | Line Inputs (20 Hz to 20 kHz): >70 dB Mic Input (50/60 Hz): >110 dB at all gains Mic Input (1 kHz): >100 dB at all gains Mic Input (20 kHz): >90 dB at all gains | Crosstalk | Line Inputs (1 kHz): < -140 dB Line Inputs (20 Hz to 20 kHz): < -120 dB Analog Outputs (1 kHz): < -135 dB Analog Outputs (20 Hz to 20 kHz): < -120 dB | Inter-Channel Differential Phase | Line Inputs (10 Hz to 5 kHz): ±0.25° Line Inputs (5 kHz to 20 kHz): ±1.0° Line Inputs (20 kHz to 50 kHz): ±2.0° Analog Outputs (10 Hz to 5 kHz): ±0.4° Analog Outputs (5 kHz to 20 kHz): ±0.25° Analog Outputs (20 kHz to 50 kHz): ±0.5° | Built-in Limiter | Line Inputs: Progressive limiter, auto-aligning, selectable per channel | Filter | Line Inputs: High-pass filter, -3 dB at 80 Hz, 40 dB/decade (selectable for channels 1-2) | Phantom Power | +48 VDC, switchable | Supported Digital Audio Standards | S/PDIF TOSLINK | Sample Rates | Up to 192 kHz | Bit Depth | Digital Input: 24-bit Digital Output: 24-bit or reduction to 16-bit using flat TPDF dither or Prism Sound SNS (Super Noise Shaping) | Channel Support | Digital Input: Channel status ignored Digital Output: Full implementation, consumer (S/PDIF) or professional (AES3) | Sample Rate Converter | Input: Selectable at S/PDIF input (allowing input at any sample rate) | Digital Performance | Input: Bit transparency maintained (allows recording of Dolby or DTS streams) Output: Bit transparency maintained in 24-bit mode (allows playback of Dolby or DTS streams to external decoder) | Clock Sources | Local or S/PDIF | Clock Accuracy | ±50 ppm | Jitter Rejection Filter | >60 dB/decade above 100 Hz | Latency | 0.57 ms at 44.1 kHz 0.52 ms at 48 kHz 0.2 ms at 88.2 kHz 0.18 ms at 96 kHz 0.09 ms at 176.4 kHz 0.08 ms at 192 kHz | Ambient Operating Temperature | 32 to 95°F / 0 to 35°C | Relative Humidity | 85% maximum | Fuse Rating | 0.5 A (T), 0.8" / 20 mm, glass | Power Consumption | 15 W | Power Requirement | 90 to 250 VAC, 50 to 60 Hz via IEC 6A connector | Dimensions (W x D x H) | 11.2 x 9.5 x 2.0" / 285 x 242 x 50 mm (including feet) | Weight | 4.6 lb / 2.1 kg |
