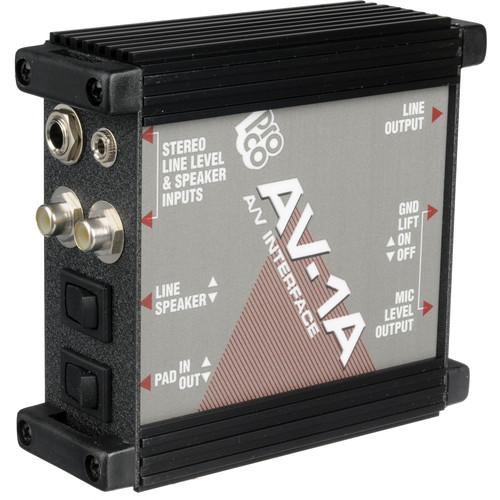

User Manual for Pro Co Sound AV1 Audio Video High to Low Impedance Interface Box for Portable Recorder and Film Projector Connection to Balanced PA Mic Inputs Click to enlarge the picture
Contents of the user manual for the Pro Co Sound AV1 Audio Video
- Product category: Level Matching Transformers Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Level Matching Transformers
|
User manual for the Pro Co Sound AV1 Audio Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|
Product description Pro Co's AV-1 Audio/Video Interface allows for clean, worry free transfers of line or speaker-level audio from movie projectors, audio and video tape cassette recorders, phonographs and more. These sources can then be connected to the microphone inputs of house or portable PA systems for a variety of uses. Uniquely designed for stacking or side-by-side strapping together, the rugged and durable AV-1 offers all necessary connections and controls to make a quick transfer from low to high-quality sound. - Better Sound from Projectors, Phonographs and Recorders
- Output Transformer for Ground Isolation
- Offers Choice of Standard Connectors with no Adapters Needed
- Handles Signal Levels from -20 to +40dBv
- 16W Dummy Load Prevents Amplifier Damage
- Rugged "Uni-Box" Steel Construction Provides Protection and Shielding
UPC: 703272070237 In the Box Pro Co Sound AV1 Audio/Video High to Low Impedance Interface Box for Portable Recorder and Film Projector Connection to Balanced PA Mic Inputs 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound AV1 Audio Video High to Low Impedance Interface Box for Portable Recorder and Film Projector Connection to Balanced PA Mic Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound AV1A Specs | Input Impedance | Greater than 130 kOhm @ 1.0kHz (Lo Mode)
82 kOhm in (Hi Mode)
16 kOhm in (Speaker Mode) | | Output Impedance | Less than 200 ohm @ 1.0kHz | | Frequency Response | 20Hz to 20kHz | | Attenuation / Gain | 20dB in High and Speaker Modes | | Input Connections | 1/4 in. phono
RCA
3.5mm mini wired connection | | Output Connections | Line Level 1/4 in. and Mic Level XLR | | Weight | 1.0 lbs. (0.45 kg) | | Dimensions | 4.875 x 4.375 x 1.75 in. (123.8 x 111.1 x 44.4mm) | | | | Package Weight | 1.555 lb | | Box Dimensions (LxWxH) | 6.25 x 5.05 x 2.5" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
