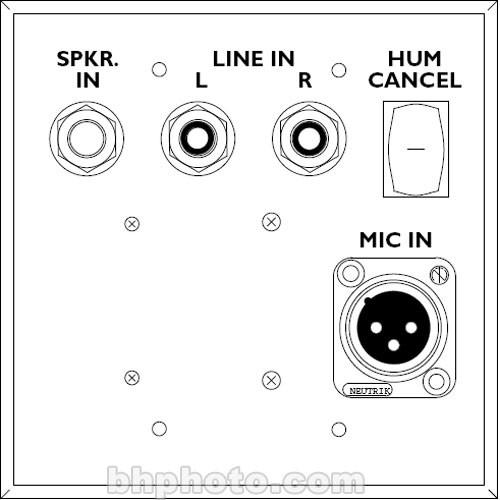

User Manual for Pro Co Sound AVP-1 - Wall Plate Audio Video Interface - Stainless Steel Click to enlarge the picture
Contents of the user manual for the Pro Co Sound AVP-1 - Wall
- Product category: Wall Plates & Installation Boxes Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Wall Plates & Installation Boxes
|
User manual for the Pro Co Sound AVP-1 - Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|
Product description The Proco AVP-1 is a wall-mounted impedance matching unit with multiple audio inputs, designed for Audio/Video applications in school classrooms, lecture halls, and meeting or conference rooms. The unit features a dedicated microphone input, a transformer-balanced, low-impedance barrier strip output, and a hum-canceling ground loop switch on the front panel. - A/V wall mounted impedance matching unit for use in schools, houses of worship and meeting or conference rooms
- Improved sound from projectors, recorders and audio playback devices
- Projector In jack loads source with 16-Ohm/5W dummy load
- Output Transformer for ground isolation, front panel Hum Cancel ground lift switch
- Independent microphone input
- Transformer-isolated low impedance output on Barrier Strip
In the Box Pro Co Sound AVP-1 - Wall Plate Audio/Video Interface - Stainless Steel 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound AVP-1 - Wall Plate Audio Video Interface - Stainless Steel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound AVP1STS Specs Input Impedance | >130 kOhm @1kHz (line in L/R jacks, mono source) 4.0 kOhm (line in L/R jacks, stereo source, resistively mixed) 16 Ohms (PROJ IN jack) | Output Impedance | <200 ohms @1kHz | Frequency Response | 20 Hz - 20 kHz, +/-.5dB @-15dBv output -3dB @85 kHz 6dB/octave attenuation above 8 kHz (PROJ IN jack) | Input Connectors | 2 x RCA Phono Line In 1 x 3-pin XLR Female Mic In 1 x 1/4" TS Phone PROJ IN(SPKR.) | Output Connector | Barrier Strip | Weight | 6.5 oz (184.3) | Dimensions | 4.6 x 4.6 x 1.25" (115.8 x 115.8 x 31.75mm) |
