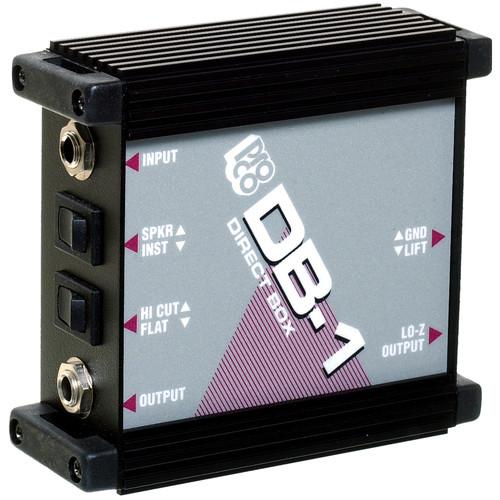

User Manual for Pro Co Sound DB-1 Passive Direct Box with Speaker Line-Level Attenuator, High Cut Filter and Ground Lift Switches Click to enlarge the picture
Contents of the user manual for the Pro Co Sound DB-1 Passive Direct
- Product category: Direct Boxes Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Direct Boxes
|
User manual for the Pro Co Sound DB-1 Passive Direct contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|
Product description The DB-1 is a simple passive direct box that offers clean and reliable performance. It can be used for nearly any instrument or signal source, from electric bass, keyboards and drum machines to sub-mixers and external speaker outputs. The DB-1 preserves the "punch" and clarity of a sound that is often lost when placing a microphone in front of a speaker, while eliminating the leakage, distortion and coloration. The signal delivered to the P.A. or studio mixer is crisp and clean - a vital element in retaining the full depth and sound of such current equipment as FM synthesizers and digital drum machines. The DB-1 may be inserted into the signal path at virtually any stage. For instance, a bass guitar signal can be "taken direct" for a clean, natural tone, from a preamplifier or line output for a punchier or "equalized" sound, or from the speaker output of the amplifier if a dirtier "edge" is desired. Built for the road, but equally at home in the recording studio, the DB-1 is housed in a rugged 16-gauge steel and aluminum "Uni-box" construction enclosure. The uniquely slotted side channels allow for stacking on top or strapping side-to-side of virtually any number of Pro Co Monoface devices using the Uni-box construction. - Single channel passive direct box
- Floating transformer-balanced XLR output for maximum isolation
- SPKR (speaker) mode handles amplifiers up to 600W RMS
- Hi-cut filter reduces distortion
- Ground lift switch eliminates hum and buzz
- Passive design requires no batteries or phantom power
- Rugged "Uni-box" construction for super-strength and shielding
UPC: 703272014347 In the Box Pro Co Sound DB-1 Passive Direct Box with Speaker/Line-Level Attenuator, High Cut Filter and Ground Lift Switches Five (5) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound DB-1 Passive Direct Box with Speaker Line-Level Attenuator, High Cut Filter and Ground Lift Switches in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound DB1 Specs | Input Connections | 1 x 1/4" TS phone (unbalanced) | | Output Connectors | 1 x XLR
1 x 1/4" TS phone (loop through) | | Input Level | Maximum for 1% THD:
+16dBv (INST mode), +34dBv (SPKR mode) @ 20Hz
+21dBv (INST mode), +41dBv (SPKR mode ) @ 30Hz
+26dBv (INST mode), +46dBv (SPKR mode ) @ 50Hz | | Output Level | Not specified by manufacturer | | Frequency Response | 20Hz to 20kHz, +/-0.5dB @ -15dBv output | | Noise | Not specified by manufacturer | | Power | Passive | | Dimensions (WxDxH) | 4 3/8" x 4 7/8" x 1 3/4" | | Weight | 1 lb | | Specialties | Recessed switches and connectors resist damage | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 6.2 x 4.9 x 2.5" |
