User Manual for Pro Co Sound EC8 Siamese Twin AC & Audio Combo Cable- 50' Click to enlarge the picture
Contents of the user manual for the Pro Co Sound EC8 Siamese Twin
- Product category: Speaker Cables Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Speaker Cables
|
User manual for the Pro Co Sound EC8 Siamese Twin contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|

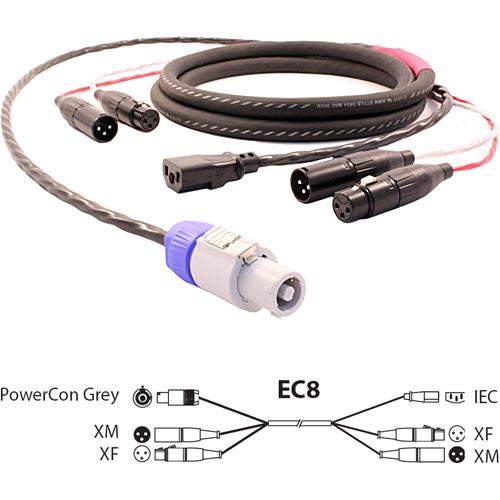

Product description Pro Co Sound brings multi-tasking to their line of cables with Siamese Twin Cables. They are a unique combination of balanced audio and AC electrical power carried through the same cable assembly with individual shielded lines that prevent EMI/RFI from disturbing the audio signal. Its ingenious construction is extremely useful for providing power to self-powered, full-range, and bi-amplified loudspeaker systems from manufacturers like Turbosound, JBL, EON, EAW, Meyer, Mackie and others. This design minimizes the number of individual cables flowing from a set of components and aids in reducing cable snarls. Each cable has a fanout of connectors that provide enough reach for the lines to connect to the power and audio ports which may or may not be near each other. The cable ends are color-coded for easy identification and the cable body has a rugged jacket that protects the individual lines inside. - Combined balanced audio and AC power in a single, easy-to-handle cable assembly
- Rugged, and flexible combination-use cable provides fast set-ups and tear-downs without adding "clutter"
- Single-shielded AC and double-shielded audio line completely prevent all hum and buzz problems under 100 kHz
In the Box Pro Co Sound EC8 Siamese Twin AC (Powercon Grey to IEC) & Audio (XLR Male + XLR Female to XLR Female + XLR Male) Combo Cable- 50' 20-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound EC8 Siamese Twin AC & Audio Combo Cable- 50' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound EC8-50 Specs | Cable Type | EC8 Composite AC & audio cable | | Length | 50' (15.2 m) | | Gauge | Power Cable:14 Gauge, 3-conductor power wire, 18 Gauge drain wire (connected to ground contacts of the AC connectors) Audio Cable: 24 Gauge Overall Cable Diameter: 0.501" matte black PVC | | Shielding | Power Cable: 0.015" PVC insulation, provides 100% shielding Audio Cable: 0.015" SR-PVC insulation, provides with 100% coverage aluminum/mylar shield under 60% coverage 36 gauge tinned copper braid shield | | Power Connector | Powercon Grey to IEC | | Audio Connector | XLR Male + XLR Female to XLR Female + XLR Male |
