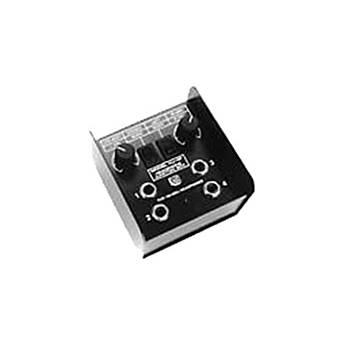

User Manual for Pro Co Sound HJ4P - 4-Channel Headphone Junction Box Click to enlarge the picture
Contents of the user manual for the Pro Co Sound HJ4P - 4-Channel
- Product category: Headphone Amplifiers Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Headphone Amplifiers
|
User manual for the Pro Co Sound HJ4P - 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|
Product description The Proco HJ4P Passive Headphone Junction Box is a ruggedly built, creatively engineered, and cost-effective solution for the delivery of custom Cue or Foldback monitoring mixes to specific groups of musicians and vocalists on stage or in the recording studio. The flexibility of the HJ4P's design also enables it's use in conference and bi-lingual speech monitoring situations, or in support of headphone sound reinforcement systems for the hearing-impaired. - Portable, Passive Headphone Junction Box with 4 Separate Headphone Outputs use
- Cost-effective delivery of Cue and Foldback Mixes to Multiple Musicians or Vocalists for Stage or Studio use
- Headphone outputs individually Resistor-Isolated for quiet performance when removing Headphones from Jack; Prevents defective Headphones from interfering with other monitoring levels
- Resistor-Isolated Amplifier input protects Amplifier, accepts unbalanced Speaker-level sources
- Stereo/Mono Monitor Switching assigns Left Input to Left Headphone side, Right Input to Right Headphone Side in Stereo Mode; Mono Mode drives both sides with single Input
- Stereo/Mono Mode Monitoring assigns both Stereo Cue Mixes and either of 2 Mono Mixes; good for Bi-Lingual Sound Reinforcement or individual L/R Foldback Monitoring
- Left/Right Switching selects Input driving both sides in Mono mode
- Works with wide 150-600 Ohm range of Headphone Impedances
- Mil-Spec Left and Right Volume Control Knobs for Individual Level Balancing
- Durable XLR Amplifier In and Loop Out Connectors
UPC: 703272016723 In the Box Pro Co Sound HJ4P - 4-Channel Headphone Junction Box 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound HJ4P - 4-Channel Headphone Junction Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound HJ4P Specs | Headphone Connectors | 4 x 1/4" TRS Phone Jacks | | Inputs | 3-Pin XLR Female Amplifier In | | Output | 3-Pin XLR Male Loop Out | | Controls | 2 x Mil-Spec Volume Control Knobs(L,R)
1 x Stereo/Mono Rocker Switch
1 x Left/Right Rocker Switch | | Input Impedance | <6 ohms(mono mode, 4 sets, 8 ohm stereo headphones)
<30 Ohms(Mono Mode, 4 Sets, 600 Ohm Stereo Headphones) | | Output Jitter | Nominally 47 Ohms | | Maximum Output Level | Approx. 340 mW(8 Ohm Headphones)
Approx. 25.5 Watts(600 Ohm Headphones) | | Dimensions | 4.85 x 4.25 x 3.45" (123.2 x 108 x 87.7mm) | | Weight | 2.5 lb (1.13 kg) | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 8.1 x 5.0 x 3.7" |
