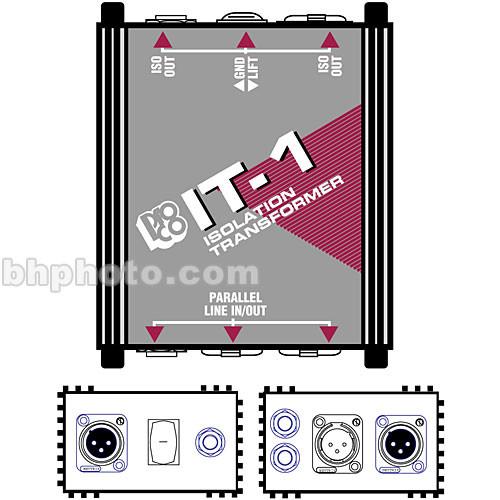

User Manual for Pro Co Sound IT1 Isolation Transformer Box for Line Level Outputs from Mixers, Crossovers and other Equipment Click to enlarge the picture
Contents of the user manual for the Pro Co Sound IT1 Isolation Transformer
- Product category: Hum Eliminators Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Hum Eliminators
|
User manual for the Pro Co Sound IT1 Isolation Transformer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|
Product description The ruggedly built Pro Co IT-1 Transformer is the perfect piece for a variety of applications where transformer-floated outputs are a necessity. The IT-1 provides a high-quality solution for interfacing problems including being used as a direct box, breaking ground loops between balanced and un-balanced lines, minimizing interference from SCR lighting dimmers, radio transmitters and 60Hz AC power wiring and more. - True Floating Transformer Isolation for Unbalanced Line-Level Outputs
- Input, Output and Loop-Thru XLR and 1/4" (6.3mm) Phone Jack Connectors
- Can Be Used As Line-Level Direct Box
- Ideal for Portable and Permanent Sound Systems
- Rugged "Uni-box" Construction Shields and Protects
UPC: 703272017003 In the Box Pro Co Sound IT1 Isolation Transformer Box for Line Level Outputs from Mixers, Crossovers and other Equipment 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound IT1 Isolation Transformer Box for Line Level Outputs from Mixers, Crossovers and other Equipment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound IT1 Specs | Frequency Response | 20Hz to 20kHz +/- 0.5dB @ 0dBv output
-3dB @ approximately 85Hz | | THD (Main Outputs) | Less than 0.25% 20Hz to 20kHz @ 0dBv output
Less than 0.05% 30Hz to 20kHz @ +18dBv output
Less than 1% 20Hz to 20kHz @ +18dBv output | | Input Impedance | Greater than 680 ohm @ 1.0kHz
Greater than 680 ohm @ 10kHz | | Output Impedance | Less than 120 ohm @ 1.0kHz
Less than 120 ohm @ 10kHz | | Voltage Loss | Less than 2dB @ 1kHz | | Input Connections | Male and Female XLR inputs wired in parallel to (2) 1/4 in. phone jacks | | Output Connections | XLR (male) and 1/4 in. phone | | Weight | 1.0 lb. (0.45 kg) | | Dimensions | 4.87 x 4.375 x 1.75 in. (123.8 x 111.1 x 44.4mm) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 6.2 x 4.9 x 2.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
