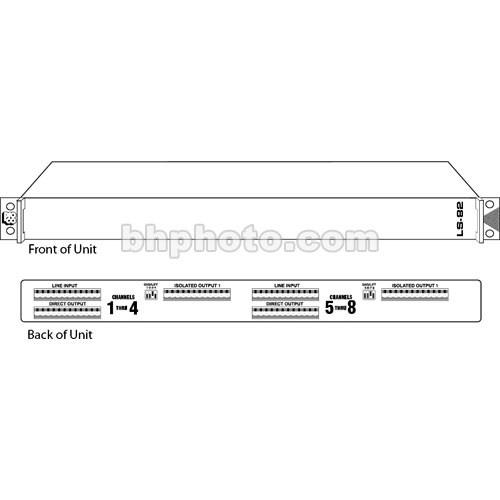

User Manual for Pro Co Sound LS-82 - MultiLink 8-Channel Line Splitter Click to enlarge the picture
Contents of the user manual for the Pro Co Sound LS-82 - MultiLink
- Product category: Splitters & Combiners Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Splitters & Combiners
|
User manual for the Pro Co Sound LS-82 - MultiLink contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|
Product description The LS-82 from Pro-Co is a rack-mountable eight-channel line splitter that splits eight line-level signals into two outputs and also provides eight 1:1 line-level output transformers for applications that require a high degree of electrical isolation. The LS-82 is ideal for sound reinforcement systems where the need to break ground loops between devices exists, or where two inputs need to be fed by one source. In complex systems grounding problems can cause unacceptable noise levels and shock hazards. Transformer isolation helps to minimize these problems, making the LS-82 a great choice for portable or installed applications.
The LS-82 features Phoenix COMBICON plug-in screw connectors for all ins and outs, making hookup a breeze. Only bare conductors and a screwdriver are required. The LOT-1 transformers found within the LS-82 provide a wide frequency response with very low distortion. Ground-Lift switches provide buzz-free operation in practically any environment. - Ideal for portable or installed sound applications
- Splits eight line-level sources into two line-level outputs
- Single rack space unit with Uni-Box(TM) construction for strength and shielding
- Isolates unbalanced line-level outputs
- Phoenix COMBICON plug-in screw connectors
- Ground-lift switches reduce hum and buzz
UPC: 703272064243 In the Box Pro Co Sound LS-82 - MultiLink 8-Channel Line Splitter 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound LS-82 - MultiLink 8-Channel Line Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound LS-82 Specs | Frequency Response | 20Hz - 20kHz, +/- 0.5dB @ 0 dBv Output | | Total Harmonic Distortion (THD) | Less than 0.25% (20Hz - 20kHz @ 0 dBv Output)
Less than 0.5% (30Hz - 20kHz @ +18 dBv Output)
Less than 1% (20Hz - 20kHz @ +18 dBv Output) | | Phase Response | Less than -3 Degrees @ 20kHz | | Input Impedance | Greater than 680 ohms | | Output Impedance | Less than 120 ohms | | Voltage Loss | Less than 2 dB @ 1kHz | | Connectors | 6 x Phoenix COMBICON Plug-In Screw Terminals (2 x Each for Line Input, Direct Output, and Isolated Output) | | Controls | 8 x Ground-Lift Switches | | Dimensions (WxHxD) | 19 x 1.75 x 4.75" (483 x 45 x 121 mm) | | Weight | 4.7 lbs (2.1 kg) | | | | Package Weight | 6.22 lb | | Box Dimensions (LxWxH) | 20.5 x 5.2 x 2.1" |
