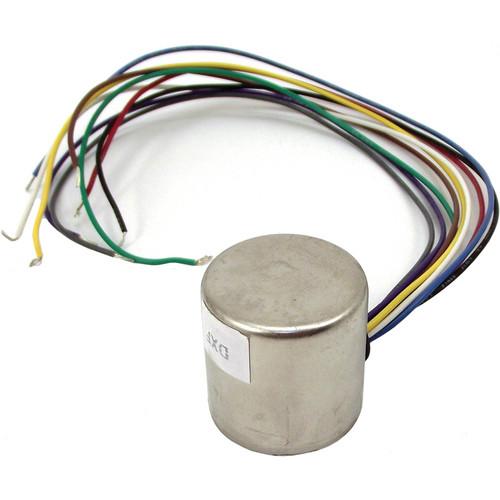

User Manual for Pro Co Sound MBT-2 1:1:1 Microphone Bridging Transformer Click to enlarge the picture
Contents of the user manual for the Pro Co Sound MBT-2 1:1:1 Microphone
- Product category: Preamp Accessories Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Preamp Accessories
|
User manual for the Pro Co Sound MBT-2 1:1:1 Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|
Product description The MBT-2 Microphone Bridging Transformer from Pro Co Sound is a carefully designed, custom-built 1:1:1 microphone bridging transformer whose characteristics are optimized for use with balanced low-impedance microphones or similar sources. Special winding techniques and a high-permeability (80% nickel) core lamination preserve full frequency response while minimizing signal losses and other "loading" effects. Mu metal can and separate electrostatic shields for primary (input) and each secondary (output) winding reduce capacitive coupling of ground-borne electrical noise between main, stage monitor and recording or broadcast feed mixers, eliminating annoying 60-Hz hum and buzz. The source impedance of the MBT-2 is very similar to that of a low-impedance microphone to ensure proper matching to the input circuitry of the mixers. The result is clean transient response (minimal overshoot or ringing) and low distortion even at low frequencies and high input levels.. UPC: 765811044055 In the Box Pro Co Sound MBT-2 1:1:1 Microphone Bridging Transformer 9" Color-Coded Lead Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound MBT-2 1:1:1 Microphone Bridging Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound DXF Specs | | | Voltage Loss | One Secondary Loaded: < 1.2 dB
Both Secondaries Loaded: < 2.5 dB at 1.0 kHz All measurements made with 150 ohms source and 1.0 kOhms load to simulate typical real-world microphone and mic preamps (0 dBv ref = 0.775V). | | Input Impedance | One Secondary Loaded: > 1070 ohms, > 1090 ohms
Both Secondaries Loaded: > 570 ohms at 1.0 kHz, > 570 ohms at 10 kHz | | Source Impedance | Secondary:
One Secondary Loaded: < 285 ohms < 310 ohms
Both Secondaries Loaded: < 255 ohms at 1.0 kHz, < 270 ohms at 10 kHz | | Total Harmonic Distortion | < 0.03% 20 Hz to 20 kHz at -30 dBv output
< 0.1% 30 Hz to 20 kHz ar -15 dBv output
< 0.25% 20 Hz to 20 kHz at -15 dBv output | | Maximum Input Level | For 1% THD:
0 dBv at 20 Hz
+4 dBv at 30 Hz
+8 dBv at 50 Hz | | Frequency Response | One Secondary Loaded: -0.5, -0.25, & -3.0 dB at 120 kHz
Both Secondaries Loaded: -0.25 dB @ 20 Hz, -0.10 dB @ 20 kHz, -3.0 dB @ 140 kHz | | Phase Response | At 20 kHz:
< -18 / -13° | | Rise Time | 2.0 kHz Square Wave, 10 to 90%:
< 3.0 / 2.4 μs | | Overshoot | < 1 / 3% | | Voltage | Common Mode:
>1500 VRMS (maximum) | | Common Mode Rejection | >80 dB at 1.0 kHz | | | | Turns Ratio | 1:1:1 (2 secondaries) | | Impedance Ratio | 150:150:150 ohms | | Primary Impedance | Source Impedance: 1.0 kOhm (typical microphone) | | Secondary Impedance | 1.0 kOhm (typical microphone preamp) | | Shield | Faraday Shield: 3 shields with separate leads | | Material | Core: 80% nickel alloy | | Maximum Input Level | At 20 Hz: 0 dBv (ref = 0.775 V) | | | | Package | MU metal can | | Termination | 9.0" (228.6 mm) 28 AWG tinned copper, color-coded leads | | Mounting | 2 holes, 0.09375" (2.3813 mm) diameter, 0.7185" (18.2499 mm) centers It is recommended to use only #4 Type-B self-tapping screws to mount transformer through mounting holes. They do not allow more than 0.15" of penetration into the transformer housing. | | Dimensions (L x W x H) | 1.125 x 1.125 x 1.063" (28.575 x 28.575 x 27.000 mm) |
