User Manual for Pro Co Sound MS-42A - 4-Channel Microphone Splitter Click to enlarge the picture
Contents of the user manual for the Pro Co Sound MS-42A - 4-Channel
- Product category: Splitters & Combiners Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Splitters & Combiners
|
User manual for the Pro Co Sound MS-42A - 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|

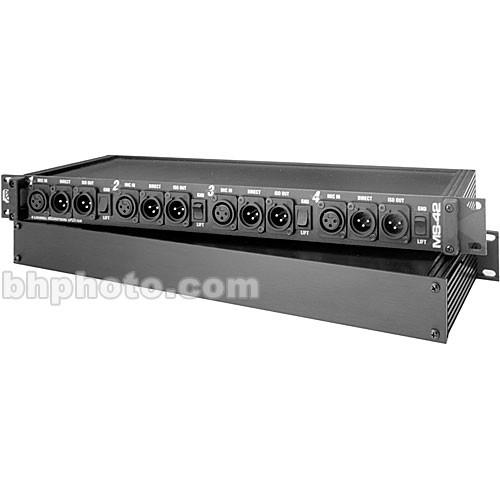

Product description The MS-42A from Pro-Co is a rack-mountable four-channel microphone splitter that splits four low-impedance microphone signals into two outputs, allowing two mic preamps to be fed from one source. The MS-42A is ideal for use in stage monitor systems where an on-stage mixer is used or in recording applications where PA system microphones must also go to a recording mixer. MBT-1 transformers in the MS-42A provide protection against interference and offer low-impedance outputs with a wide frequency response and low distortion. Ground-lift switches combined with these transformers provide buzz-free operation in practically every environment.
The MS-42A uses standard 3-pin XLR connectors for quick and easy hookup with your system. A rugged steel and aluminum Uni-box(TM) construction provides long-lasting durability. For quality audio and construction in a rack-mountable design, the MS-42A is a great choice. - Splits four low-impedance mic signals into two outputs
- Ideal for on-stage monitoring and remote recording
- Connects with standard XLR cables
- Front-panel connectors for easy access
- High-quality transformer-isolated outputs
- Rugged Uni-box(TM) construction for strength and durability
UPC: 703272017904 In the Box Pro Co Sound MS-42A - 4-Channel Microphone Splitter 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound MS-42A - 4-Channel Microphone Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound MS-42A Specs | Frequency Response | 20Hz - 20kHz (+/- 0.5dB @ -15 dBv Output) | | Total Harmonic Distortion (THD) | Less than 0.03% (20Hz - 20kHz @ -30 dBv Output)
Less than 0.1% (30Hz - 20kHz @ -15 dBv Output)
Less than 0.25% (20Hz - 20kHz @ -15 dBv Output) | | Phase Response | Less than -20 Degrees @ 20kHz | | Input Impedance | Greater than 1 k ohm | | Output Impedance | Less than 300 ohms | | Voltage Loss | Less than 1 dB @ 1kHz | | Connectors | 4 x Mic In XLR Female Connectors
4 x Direct Output XLR Male Connectors
4 x Isolated Output XLR Male Connectors | | Controls | 4 x Ground-Lift Switches | | Dimensions (WxHxD) | 19 x 1.75 x 4.75" (483 x 45 x 121 mm) | | Weight | 4.2 lbs (1.9 kg) | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 20.3 x 5.3 x 2.0" |
