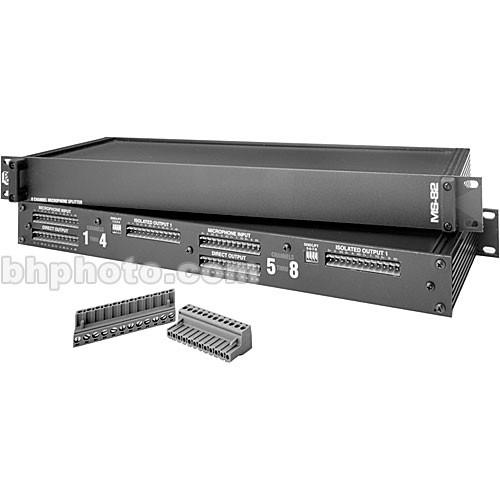

User Manual for Pro Co Sound MS-82 - 8-Channel, 2-Way Microphone Splitter Click to enlarge the picture
Contents of the user manual for the Pro Co Sound MS-82 - 8-Channel,
- Product category: Splitters & Combiners Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Splitters & Combiners
|
User manual for the Pro Co Sound MS-82 - 8-Channel, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|
Product description The MS-82 from Pro-Co is an eight-channel, two-way microphone splitter that splits eight low-impedance microphone signals into two outputs, allowing two mic preamps to be fed from one source. The MS-82 is ideal for large sound reinforcement systems where PA system microphones also need to be fed to a stage monitor system or remote recording mixer.
Complex sound systems, such as those mentioned above, often have grounding problems, which can cause unacceptable noise levels and shock hazards. The MS-82 uses transformer isolation and ground-lift switches to help minimize these risks. The ground-lift feature also provides buzz-free operation in practically any environment.
The MS-82 uses phoenix COMBICON plug-in screw connectors for easy hookup. MBT-1 transformers provide a wide frequency response with very low distortion. A steel and aluminum Uni-box(TM) construction provides long-lasting durability. All of these features pack neatly into a single-space rack unit, perfect for professional audio. - Splits eight low-impedance mic signals into two outputs
- Single rack space unit with durable Uni-box(TM) construction
- Allows assembly of an economical expandable splitting system
- Ideal for stage monitoring, broadcast, and remote recording
- Uses phoenix COMBICON plug-in screw connectors
- High-quality transformer-isolated outputs
UPC: 765811792239 In the Box Pro Co Sound MS-82 - 8-Channel, 2-Way Microphone Splitter 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound MS-82 - 8-Channel, 2-Way Microphone Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound MS-82 Specs | Frequency Response | 20Hz - 20kHz (+/- 0.5dB @ -15 dBv Output) | | Total Harmonic Distortion (THD) | Less than 0.03% (20Hz - 20kHz @ -30 dBv Output)
Less than 0.1% (30Hz - 20kHz @ -15 dBv Output)
Less than 0.25% (20Hz - 20kHz @ -15 dBv Output) | | Phase Response | Less than -20 Degrees @ 20kHz | | Input Impedance | Greater than 1 k ohm | | Output Impedance | Less than 300 ohms | | Voltage Loss | Less than 1 dB @ 1kHz | | Connectors | 6 x Rear-Panel 12-pin Phoenix COMBICON Plug-In Screw Connectors (2 x Each for Mic Input, Direct Output, and Isolated Output) | | Controls | 8 x Rear-Panel Ground-Lift Switches | | Dimensions (WxHxD) | 19 x 1.75 x 4.75" (483 x 45 x 121 mm) | | Weight | 4.7 lbs (2.1 kg) | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 20.0 x 5.433 x 2.5" |
