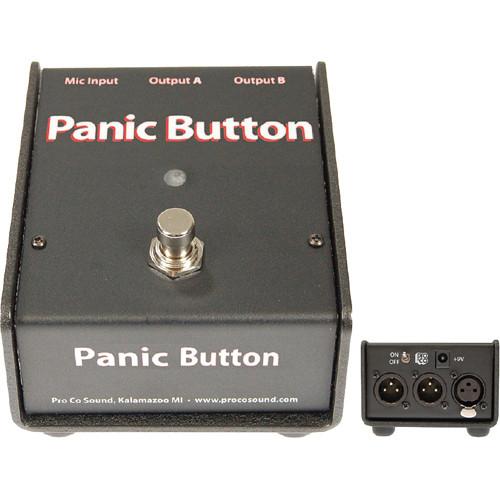

User Manual for Pro Co Sound Panic Button - Cough Drop Series Live Sound A B or Muting Switch Click to enlarge the picture
Contents of the user manual for the Pro Co Sound Panic Button -
- Product category: Pads & Mute Switches Pro Co Sound
- Brand: Pro Co Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro Co Sound Pads & Mute Switches
|
User manual for the Pro Co Sound Panic Button - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro Co Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro Co Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro Co Sound product will considerably shorten its lifespan!
|
Product description The Proco Panic Button is designed to enable live entertainers on stage to switch their microphone signal from Output A (Front of House normal operation) to Output B (Backstage or alternate location) for emergency contact with road personnel or the Monitor mix engineer. The Panic Button Channel B can also act as a mute switch, although the road personnel can still monitor the mic signal. Phantom power from the FOH mixer powers both channels when condenser microphones are being used, and the channel switching is silent. If the battery in the Panic Button dies, the circuit automatically reverts to Channel A. - Allows entertainers to switch microphone signal from front of house to backstage or alternate location from stage
- A/B switch also allows unit to be used as a muting switch via internal DIP selector
UPC: 703272076284 In the Box Pro Co Sound Panic Button - Cough Drop Series Live Sound A/B or Muting Switch AC Adapter 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound Panic Button - Cough Drop Series Live Sound A B or Muting Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound CDPB Specs | Connectors | 1 x 3-pin XLR Female Mic In
2 x 3-pin XLR Male Output | | Switches | 1 x A/B
1 x Mute/A/B DIP Switch | | Indicators | 2 x Status LED | | Construction | Metal | | Power Supply | 9VDC AC Adapter | | Dimensions | Width: 3.2" (81.3mm) Depth: 4.1" (104.1mm) Height(Rear): 2.25" (57.1mm) Height(Front): 1.7" (43.2mm) | | Weight | 1.7 lb (0.8 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.0 x 4.5 x 3.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Pro Co Sound Panic Button - Cough Drop Series Live Sound A B or Muting Switch
| Subject: Power adapter | | Date: 21.08.2022 00:41:30 | Name: Jimmy moon | | Was wondering why the unit doesn’t work with ac adapter thanks | | Post reply |
