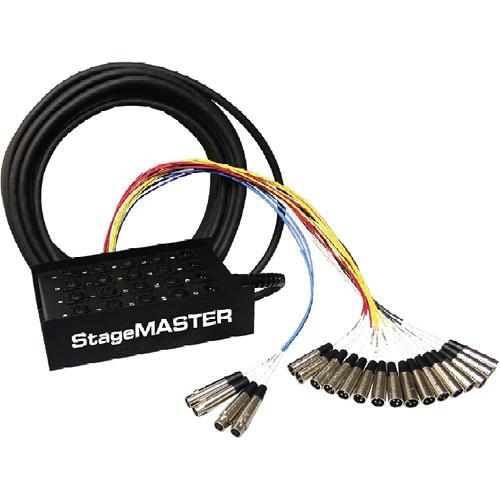

Product description The 150’ StageMASTER Multipair Audio Snake from Pro Co Sound features 16 mics, 4 returns, and a 150’ (45.72m) cable. The StageMASTER Stage Snake stagebox is constructed of a steel connector panel chassis and a heavy-duty steel U-channel enclosure designed for shielding and protecting the connectors. The stagebox has a durable black powder-coat finish with white silk-screened channel identification numbers. The mic inputs are rugged with Neutrik D-Series nylon XLR panel connectors and returns are D-Series nylon XLR-type connectors. The stagebox is wired with SN multipair audio cable to a 4’ (1.21m) fanout with RHC male XLR connectors and RHC female XLR connectors. The cable is secured to the stagebox with a rugged nylon strain relief. The individual channels of the fan-out are protected with color-coded irradiated polyolefin shrink tubing for long flex life and easy channel identification. It has a 16 x 4 (mics x returns) fan-to-box configuration and the cable length is 150’ (45.72m). - Low-profile steel U-channel stagebox for high level of shielding and connector protection
- SN multipair (2 x 24 AWG) audio cable
- Individually shielded pairs (100% coverage foil shield and drain wire)
- Durable matte PVC outer jacket
- Color-coded fanout and easy channel number identification
- Nylon cable grip / strain relief for the trunk
- Rugged Neutrik nylon D-Series type XLR panel-mount connectors on the stagebox
- Rugged metal-shell connectors for high-use durability on the fan end
- All terminations hand soldered
- Stagebox sports a black powder-coat finish
UPC: 703272081196 In the Box Pro Co Sound StageMASTER Multipair Audio Snake (150') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro Co Sound StageMASTER Multipair Audio Snake in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro Co Sound SMC1604FBX-150 Specs | | | Connectors | Microphone Input: Neutrik D-Series nylon XLR female panel mount
Returns Out XLR Model: Neutrik D-Series nylon XLR male panel mount | | Base | U-channel: 16-gauge steel | | Frame | Connector: 18-gauge steel | | Feet | 4x non-skid rubber | | Marking | Channel: 0.25" (6.35 mm) white (semi-gloss epoxy) characters | | Strain Relief | Nylon | | | | Connectors | Microphone Output: RHC XLR male cable mount
Returns Input XLR Model: RHC XLR female cable mount | | Insulation | Channel: 0.010" (0.254 mm) polyethylene | | Marking | Channel: Numbered color-coded polyolefin heat shrink tubing | | | | Wire Type | SN series-24GA | | Conductor Gauge | 24 AWG (0.20 mm²) | | Stranding | (no. strands x AWG): 7 x 32 (7 x 0.254 mm²) | | Insulation | 0.010" (0.254 mm) | | Insulation Material | Polypropylene | | Diameter | Insulation: 0.44" (11.20 mm) | | Drain Wire | Gauge: 24 AWG (0.20 mm²) | | Drain Wire | Stranding: 7 x 32 (7 x 0.254 mm²) | | Shield Material | Aluminum / polyester tape wrap | | Shield Coverage | 100% coverage | | Capacitance | Between paired conductors: 25 pF/ft (82 pF/m)
Between one of paired conductors and remaining conductor tied to shield: 45 pF/ft (148 pF/m) | | Impedance | Calculated: 60.0 Ω/kft (196.8 Ω/km) | | Resistance | Nominal conductor resistance @ 20˚C: 25.4 Ω/kft (83.3 Ω/km)
SN16-24GA: 16 pairs
Outer Diameter: 0.48" (12.10 mm) | | Lay Length | 7" (178 mm) | | | | Package Weight | 33.75 lb | | Box Dimensions (LxWxH) | 18.5 x 17.6 x 11.2" |
