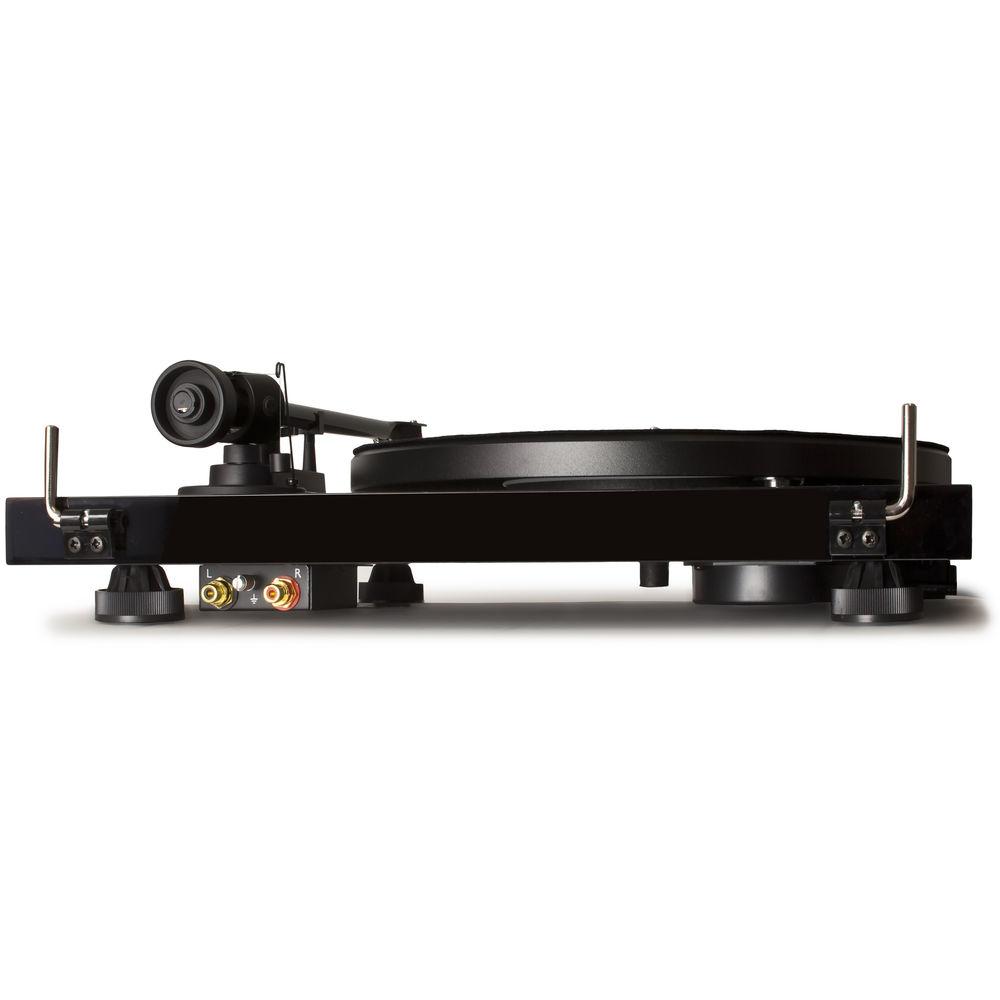

User Manual for Pro-Ject Audio Systems Debut Carbon DC Turntable with 8.6" Carbon Fiber Tonearm Click to enlarge the picture
Contents of the user manual for the Pro-Ject Audio Systems Debut Carbon DC
- Product category: Turntables Pro-Ject Audio Systems
- Brand: Pro-Ject Audio Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro-Ject Audio Systems Turntables
 |
User manual for the Pro-Ject Audio Systems Debut Carbon DC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro-Ject Audio Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro-Ject Audio Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro-Ject Audio Systems product will considerably shorten its lifespan!
|

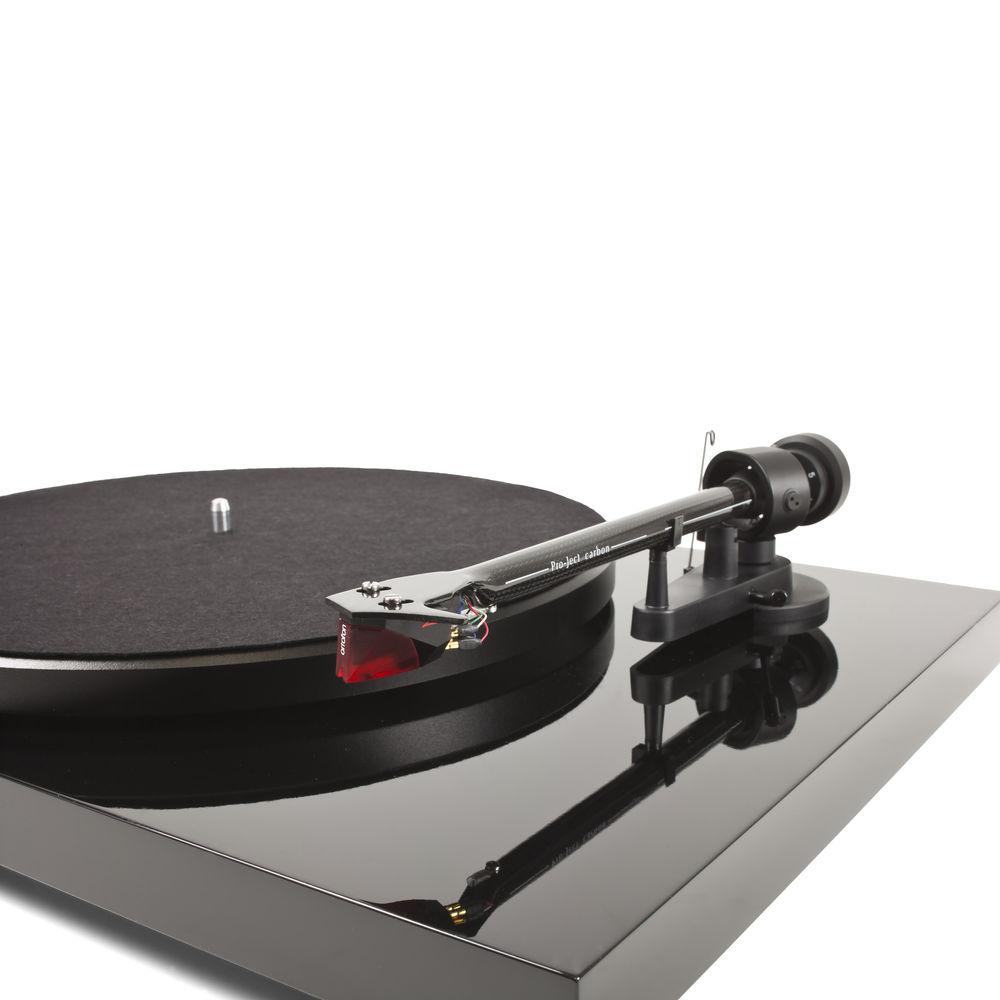

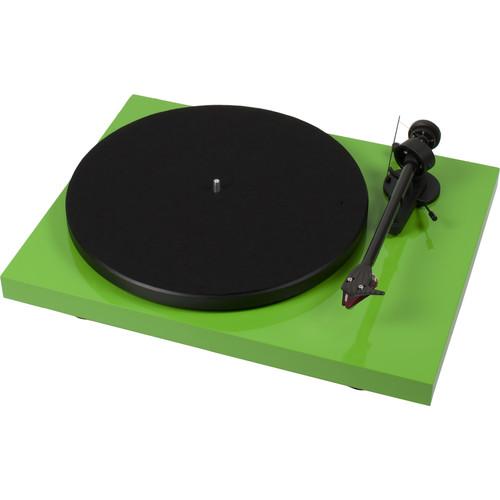

Product description Old is New and Modernized with Pro-Ject Turntables Read More Enjoy your vinyl 33 and 45 rpm records with the green Pro-Ject Debut Carbon DC Turntable. It features an 8.6" carbon tonearm tipped with the Ortofon 2M Red cartridge. Its RCA output allows you to connect it to nearly any audio system through a separately sold preamp. -
- 8.6" carbon tonearm
- Belt drive with synchronous motor for enhanced precision
- DC power supply with enhanced-precision frequency DC-driven AC generator for enhanced speed stability
- TPE motor suspension
- Felt mat
- Includes Ortofon 2M Red cartridge
UPC: 844682004433 In the Box Pro-Ject Audio Systems Debut Carbon DC Turntable with 8.6" Carbon Fiber Tonearm (Green) Dust Cover 15 VDC / 0.8A Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro-Ject Audio Systems Debut Carbon DC Turntable with 8.6" Carbon Fiber Tonearm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro-Ject Audio Systems 844682004433 Specs | | | Drive Method | Belt-drive system | | Wow and Flutter | 33 rpm: 0.19%
45 rpm: 0.17% | | Signal to Noise Ratio | 68 dB | | Rotation Speed | 33, 45 rpm | | Speed Drift | 33 rpm: 0.60%
45 rpm: 0.50% | | Turntable Platter | 11.8" (300 mm) metal with felt mat | | Bearing | Stainless steel | | Output | 1 x Gold-plated stereo RCA | | | | Material | Carbon | | Effective Arm Length | 8.6" (218.5 mm) | | Arm Weight | 0.2 oz (6 g) | | Overhang | 0.7" (18.5 mm) | | Tracking Force | 10 to 30 mN
18 mN recommended | | Cartridge Type | MM-type Ortofon 2M Red | | | | Frequency Range | 20 Hz to 22 kHz | | Channel Separation | 22 dB / 1 kHz | | Output Voltage | 5.5 mV | | Recommended Load Impedance | 47 kOhms/amplifier connection - MM-input | | Stylus Type | 20 µm/mN - elliptical | | Weight | 0.3 oz (7.2 g) | | | | Power Requirements | 15 VDC, 0 to 0.8 mA (set to 0.5 mA) | | Power Consumption | Operational: 4 W
Standby: 0 W | | Dimensions (W x H x D) | 16.3 x 4.6 x 12.6" (415 x 118 x 320 mm) with dust cover closed
16.3 x 14.4 x 15.9" (415 x 365 x 405 mm) with dust cover open | | Weight | 12.3 lb (5.6 kg) | | | | Package Weight | 17.1 lb | | Box Dimensions (LxWxH) | 19.1 x 15.6 x 9.7" |
