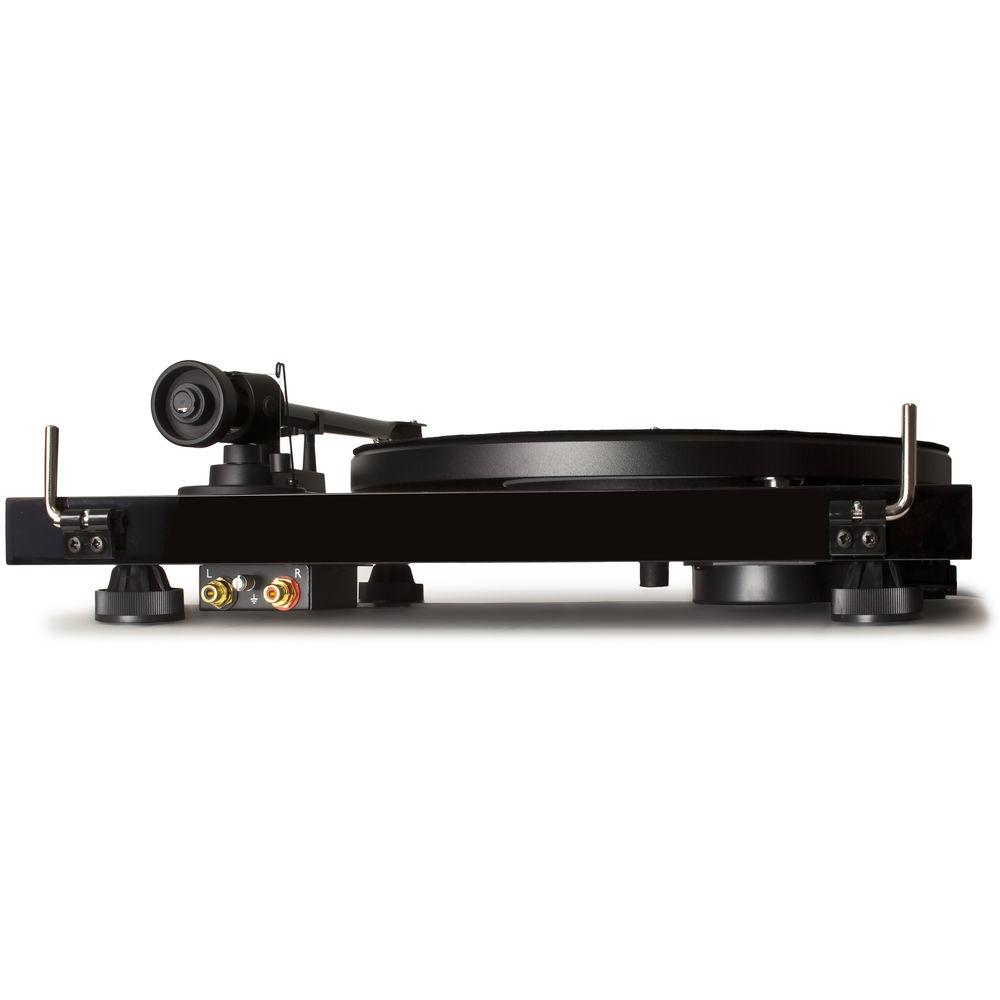

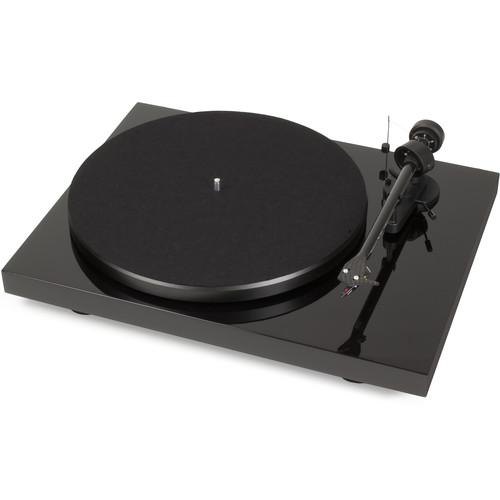

User Manual for Pro-Ject Audio Systems Debut Carbon DC Turntable with 8.6" Carbon Fiber Tonearm and USB Click to enlarge the picture
Contents of the user manual for the Pro-Ject Audio Systems Debut Carbon DC
- Product category: Turntables Pro-Ject Audio Systems
- Brand: Pro-Ject Audio Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro-Ject Audio Systems Turntables
 |
User manual for the Pro-Ject Audio Systems Debut Carbon DC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro-Ject Audio Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro-Ject Audio Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro-Ject Audio Systems product will considerably shorten its lifespan!
|
Product description Old is New and Modernized with Pro-Ject Turntables Read More Digitally store your vinyl records on your computer with the black Pro-Ject Debut Carbon DC Turntable. Its USB output allows you to connect it to your Windows or Mac computer for easy connection and conversion. The turntable supports 33 and 45 rpm speeds and features an 8.6" carbon tonearm tipped with the Ortofon OM10 cartridge. Its RCA line-level output allows you to connect it to nearly any audio system. Note: Software to capture and convert audio is required and not included. -
- 8.6" carbon tonearm with pre-mounted OM10 cartridge
- Belt drive with synchronous motor for enhanced precision
- DC power supply with enhanced-precision frequency DC-driven AC generator for enhanced speed stability
- TPE motor suspension
- Integrated Phono-MM preamplifier
- Felt mat
UPC: 844682004464 In the Box Pro-Ject Audio Systems Debut Carbon DC Turntable with 8.6" Carbon Fiber Tonearm and USB (Black) Dust Cover 15 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro-Ject Audio Systems Debut Carbon DC Turntable with 8.6" Carbon Fiber Tonearm and USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro-Ject Audio Systems 844682004464 Specs | | | Drive Method | Belt-drive system | | Wow and Flutter | 33 rpm: 0.19%
45 rpm: 0.17% | | Signal to Noise Ratio | 68 dB | | Rotation Speed | 33, 45 rpm | | Speed Drift | 33 rpm: 0.60%

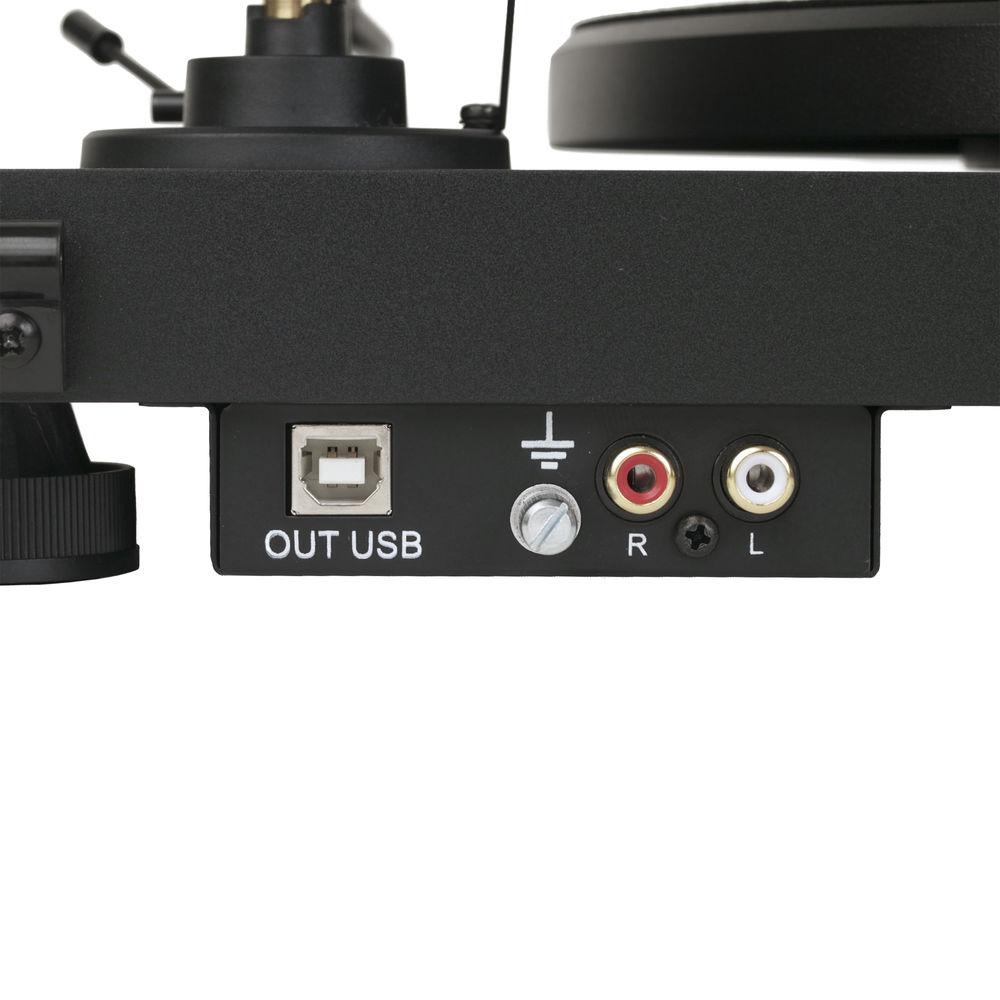

45 rpm: 0.50% | | Turntable Platter | 11.8" (300 mm) metal with felt mat | | Bearing | Stainless steel | | Output | 1 x Gold-plated line-level stereo RCA
1 x USB 1.1 | | | | Material | Carbon | | Effective Arm Length | 8.6" (218.5 mm) | | Arm Weight | 0.2 oz (6 g) | | Overhang | 0.7" (18.5 mm) | | Tracking Force | Recommended: 15 mN | | | | Gain | 32 dB | | Output Voltage | Typical: 200 mV / 1 kHz @ 5 mV | | Input Capacitance | 47 kOhms | | Input Impedance | 400 pF | | Noise Floor | -88 dB | | RIAA Equalization Curve Accuracy | 20 Hz to 20 kHz / max 0.5 dB | | | | Cartridge Type | MM-type Ortofon OM 10 | | Frequency Range | 20 Hz to 22 kHz | | Channel Separation | 22 dB / 1 kHz | | Output Voltage | 4 mV | | Recommended Load Impedance | 47 kOhms/amplifier connection - MM-input | | Stylus Type | 25 µm/mN - elliptical | | Weight | 0.2 oz (5 g) | | | | OS Compatibility | Windows XP, Vista, 7, 8
Mac OS | | Power Requirements | 110/120 VAC, 60 Hz | | Power Consumption | Operational: 7.5 W
Standby: 0 W | | Dimensions (W x H x D) | 16.3 x 4.6 x 12.6" (415 x 118 x 320 mm) with dust cover closed
16.3 x 14.4 x 15.9" (415 x 365 x 405 mm) with dust cover open | | Weight | 13.2 lb (6 kg) | | | | Package Weight | 15.8 lb | | Box Dimensions (LxWxH) | 19.0 x 15.0 x 9.5" |
