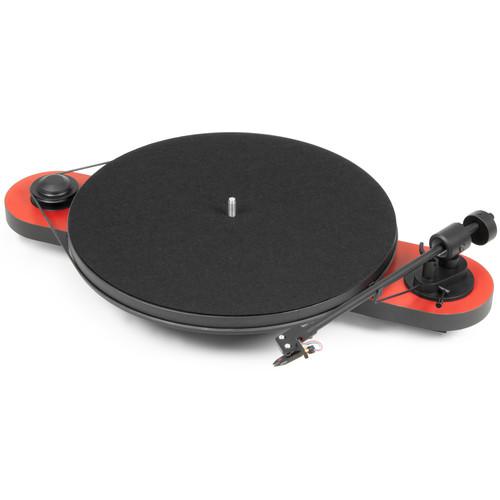

User Manual for Pro-Ject Audio Systems Elemental Phono USB Turntable Click to enlarge the picture
Contents of the user manual for the Pro-Ject Audio Systems Elemental Phono USB
- Product category: Turntables Pro-Ject Audio Systems
- Brand: Pro-Ject Audio Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro-Ject Audio Systems Turntables
|
User manual for the Pro-Ject Audio Systems Elemental Phono USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro-Ject Audio Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro-Ject Audio Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro-Ject Audio Systems product will considerably shorten its lifespan!
|
Product description Digitally store your vinyl records on your computer with the red & black Pro-Ject Elemental Phono USB Turntable. Its USB output allows you to connect it to your Windows or Mac computer for easy connection and conversion. The turntable supports 33 and 45 rpm speeds and features a minimalist design to keep it from occupying a large space. The Elemental Phono USB turntable includes a USB cable and an RCA cable. - With the chassis reduced in size, a molded piece of artificial stone holds the bearing and the platter. It is designed to be sufficiently heavy enough to deal with any vibration energy from the bearing and the motor.
- Two small extensions, made from light MDF, are mounted on the central mass point to hold the motor and the arm. All the vibration is fashioned to be directed to the mass point and effectively absorbed there.
- The platter is made of dense MDF and is designed to be balanced and non-resonant.
- The bearing is made from bronze bushing with a Teflon plate and a steel shaft designed for quiet operation.
- The tonearm is designed for use with the pre-installed Ortofon OM5 cartridge.
- The tonearm uses a fixed, pre-adjusted counterweight and anti-skating force to help ensure optimal sound and ease of setup.
UPC: 844682004334 In the Box Pro-Ject Audio Systems Elemental Phono USB Turntable (Red & Black) RCA Cable USB Cable Drive Belt Felt Mat Hex Wrench Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro-Ject Audio Systems Elemental Phono USB Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro-Ject Audio Systems 844682004334 Specs | | | Drive Method | Belt-drive system | | Wow and Flutter | 33 rpm: 0.14%
45 rpm: 0.13% | | Signal to Noise Ratio | 65 dB | | Rotation Speed | 33, 45 rpm | | Speed Drift | 33 rpm: 0.2%
45 rpm: 0.18% | | Turntable Platter | 11.8" (300 mm) MDF | | Output | 1 x Stereo RCA
1 x USB Type-B | | USB Compliance | 1.1 | | A/D Conversion | 16-bit Delta Sigma | | | | Material | Metal | | Effective Arm Length | 8.6" (218.5 mm) | | Arm Weight | 0.3 oz (8 g) | | Counterweight | 0.1 to 0.2 oz (3 to 5.5 g) | | Overhang | 0.9" (22 mm) | | Tracking Force | 0 to 30 mN (OM5 18 mN pre-adjusted) | | | | Gain | 32 dB | | Output Voltage | Typical: 160 mV / 1 kHz @ 4 mV / 1 kHz input | | Input Impedance | 47 kOhms / 100 pF | | Noise Floor | -88 dB | | RIAA Equalization Curve Accuracy | 20 Hz to 20 kHz / max 0.5 dB | | | | Cartridge Type | MM-type Ortofon OM 5E | | Frequency Range | 20 Hz to 25 kHz | | Channel Separation | 22 dB / 1 kHz | | Output Voltage | 4 mV | | Recommended Load Impedance | 47 kOhms/amplifier connection - MM-input | | Stylus Type | 20 µm/mN - elliptical | | Tracking Force | Recommended: 17.5 mN | | Weight | 0.2 oz (5 g) | | | | OS Compatibility | Windows: XP, VISTA, 7, 8
Mac OS | | Power Requirements | 15 VDC, 500 mA | | Power Consumption | ≤5 W | | Dimensions (W x H x D) | 16.9 x 3.5 x 11.8" (430 x 90 x 300 mm) | | Weight | 6 lb (2.75 kg) | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 20.6 x 15.2 x 6.7" |
