User Manual for Pro-Ject Audio Systems VT-E BT R Vertical Turntable with Bluetooth Click to enlarge the picture
Contents of the user manual for the Pro-Ject Audio Systems VT-E BT R
- Product category: Turntables Pro-Ject Audio Systems
- Brand: Pro-Ject Audio Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pro-Ject Audio Systems Turntables
|
User manual for the Pro-Ject Audio Systems VT-E BT R contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pro-Ject Audio Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pro-Ject Audio Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pro-Ject Audio Systems product will considerably shorten its lifespan!
|

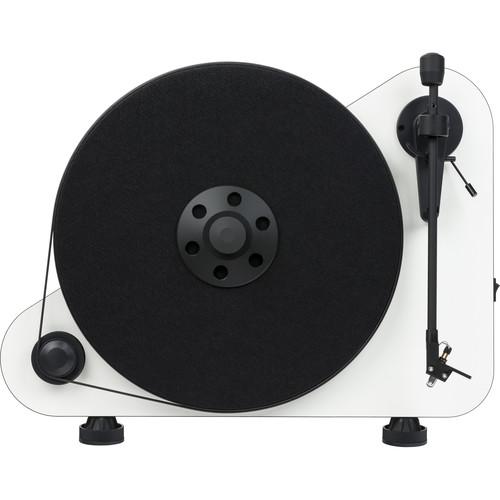

Product description Enjoy your 33- and 45-rpm records while conserving shelf space with the high-gloss white Pro-Ject VT-E BT R Vertical Turntable. It can be used either while wall-mounted or standing vertically on a shelf and features a pre-amplified RCA output and a phono RCA output for compatibility with nearly any wired sound system. It also has Bluetooth connectivity for wireless connection to your compatible speakers or headphones. -
- Vertical freestanding or wall-mount option
- Designed for instant playback and easy setup
- Bluetooth output for use with compatible speakers or headphones
- Record clamp included for secure record placement
- Low-vibration synchronous motor and DC power supply
- Ortofon OM5e cartridge pre-installed
- Pre-adjusted tracking & anti-skating force
- Designed for proper tracking in vertical position
UPC: 844682007274 In the Box Pro-Ject Audio Systems VT-E BT R Vertical Turntable with Bluetooth (High-Gloss White) Record Clamp Wall Mounting Hardware Stereo RCA Cable Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pro-Ject Audio Systems VT-E BT R Vertical Turntable with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPro-Ject Audio Systems VT-E BT Specs | | | Drive Method | Silicone belt-drive system | | Wow and Flutter | 33 rpm: ±0.29%
45 rpm: ±0.27% | | Rotation Speed | 33, 45 rpm (manual speed change) | | Speed Drift | 33 rpm: 0.8%
45 rpm: 0.7% | | Turntable Platter | 1.8 lb (800 g) MDF with felt mat | | Platter Diameter | 11.8" (300 mm) | | Bearing | Main: Stainless steel | | Wireless Connection | Bluetooth version 3.0 audio out | | Output | 1 x stereo RCA phono
1 x stereo RCA line | | Signal to Noise Ratio | -65 dB | | | | Material | Aluminum | | Effective Arm Length | 8.6" (218.5 mm) | | Overhang | 0.9" (22 mm) | | Tracking Force | 0 to 2.5 gf (0 to 25 mN) pre-adjusted to 1.8 gf (18 mN) | | Mass | Effective: 8 g | | Cartridge Weight | Compatible: 3 to 5.5 g | | | | Power Requirements | Not specified by manufacturer | | Power Consumption | 4.5 W | | Dimensions (W x H x D) | Free-Standing: 16.9 x 13.6 x 9.6" (43 x 34.5 x 24.5 cm)
Wall-Mounted: 16.9 x 12.2 x 5.1" (43 x 31 x 13 cm) | | Weight | 6.2 lb (2.8 kg) | | | | Package Weight | 10.75 lb | | Box Dimensions (LxWxH) | 20.5 x 15.0 x 7.0" |
