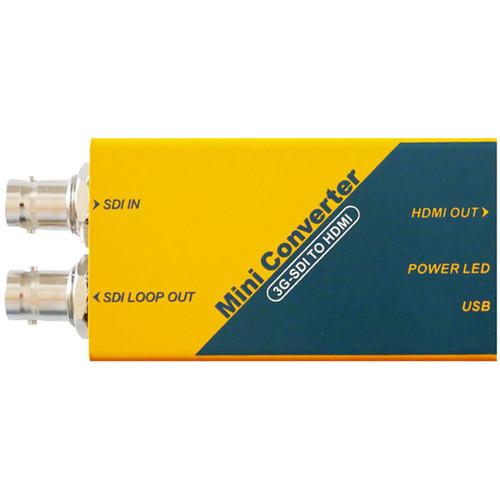

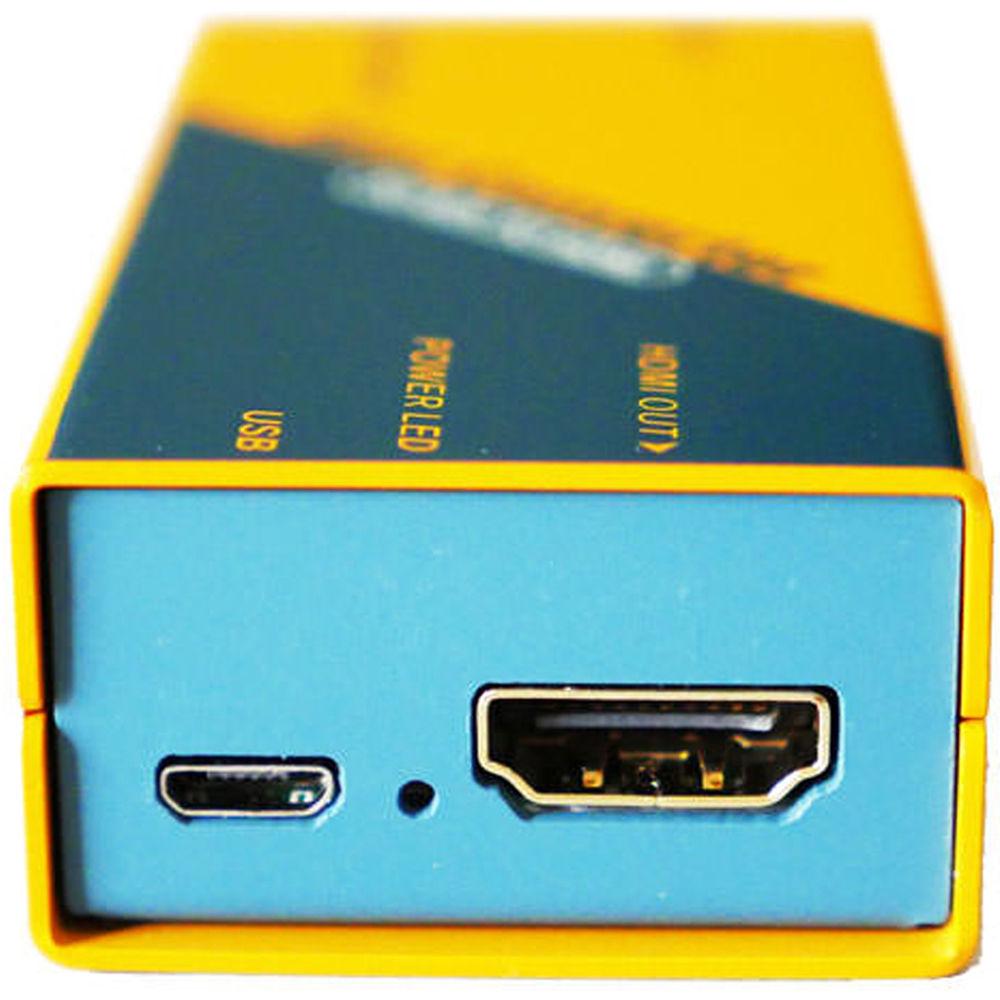

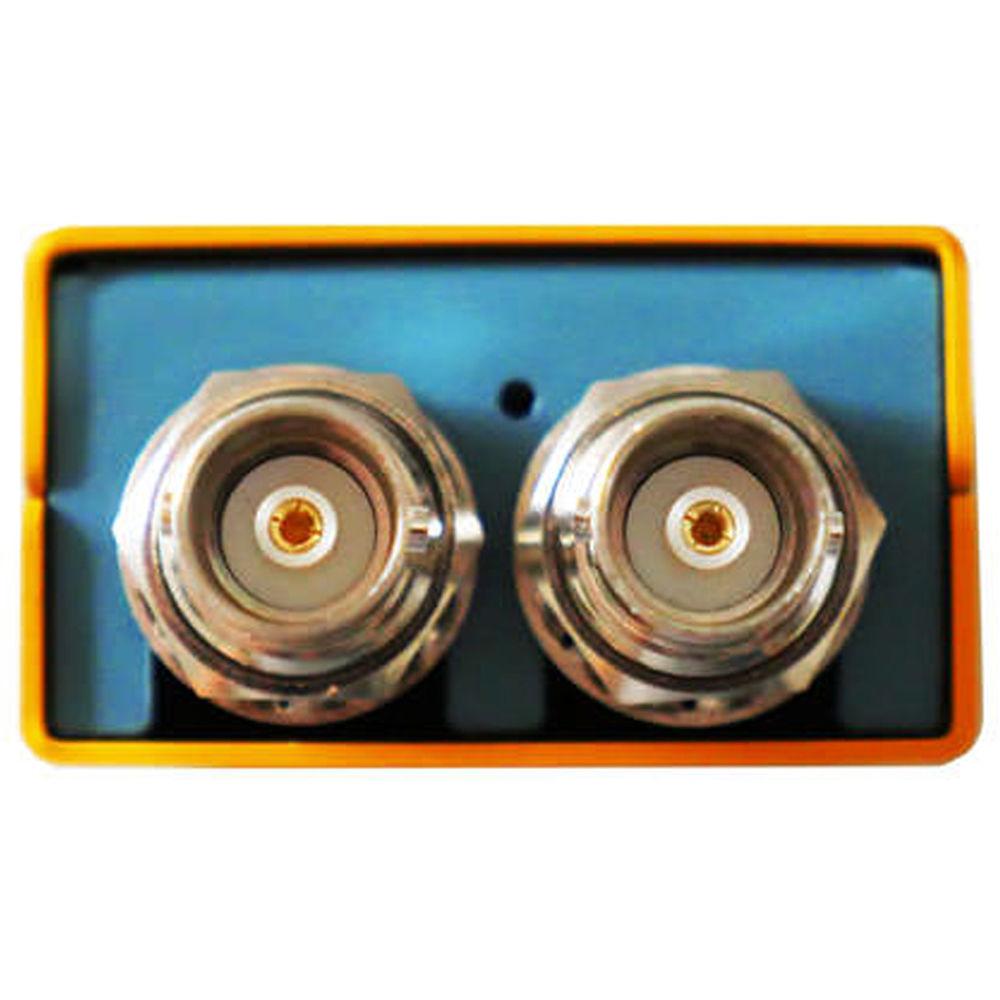

User Manual for ProAm USA 3G SDI to HDMI Converter Adapter for LCD Monitor Broadcast Video Click to enlarge the picture
Contents of the user manual for the ProAm USA 3G SDI to HDMI
- Product category: Signal Converters ProAm USA
- Brand: ProAm USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ProAm USA Signal Converters
 |
User manual for the ProAm USA 3G SDI to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ProAm USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ProAm USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ProAm USA product will considerably shorten its lifespan!
|
Product description The 3G-SDI to HDMI Pocket-Size Broadcast Converter from ProAm USA converts a 3G-SDI signal to conform to HDMI. It accepts SD and HD formats up to 1080p60, outputting via SD or HD as directed by the incoming resolution and frequency. UPC: 013964711998 In the Box ProAm USA 3G SDI to HDMI Converter Adapter for LCD Monitor Broadcast Video Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProAm USA 3G SDI to HDMI Converter Adapter for LCD Monitor Broadcast Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProAm USA SDI-HD-CNV Specs | Video Input | 2 x SD/HD/3G-SDI | | Output | HDMI Type A | | SDI Formats Supported | SD Format:
525i 59.94, 625i 50
HD Format:
720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080psf at 23.98/24/25/29.97/30 fps | | SDI Video Rates | SD/HD/3G-SDI | | SDI Compliance | SMPTE 292M/SMPTE/259M/SMPTE 424M | | SDI Color Space | YUV 4:2:2 | | HDMI Format Support | 480i 60
576i 50
720p 24/25/30/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60 | | HDMI Color Space | YUV 4:2:2, 4:4:4 & RGB 4:4:4 | | Power | Micro-USB | | Power Consumption | 2 W | | Voltage Range | 3.3 to 5 V | | Operating/Storage Temperature | 32 to 140°F (0 to 60°C) | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | 2.9 x 1.6 x 0.9" (7.4 x 4.1 x 2.3 cm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 4.6 x 3.3 x 3.2" |
